(02-002) - LOW GROUP, P/N PY01F00014F1

Запчасти Case CX50B (02-002) - LOW GROUP, P/N PY01F00014F1 (39) - FRAMES AND BALLASTING

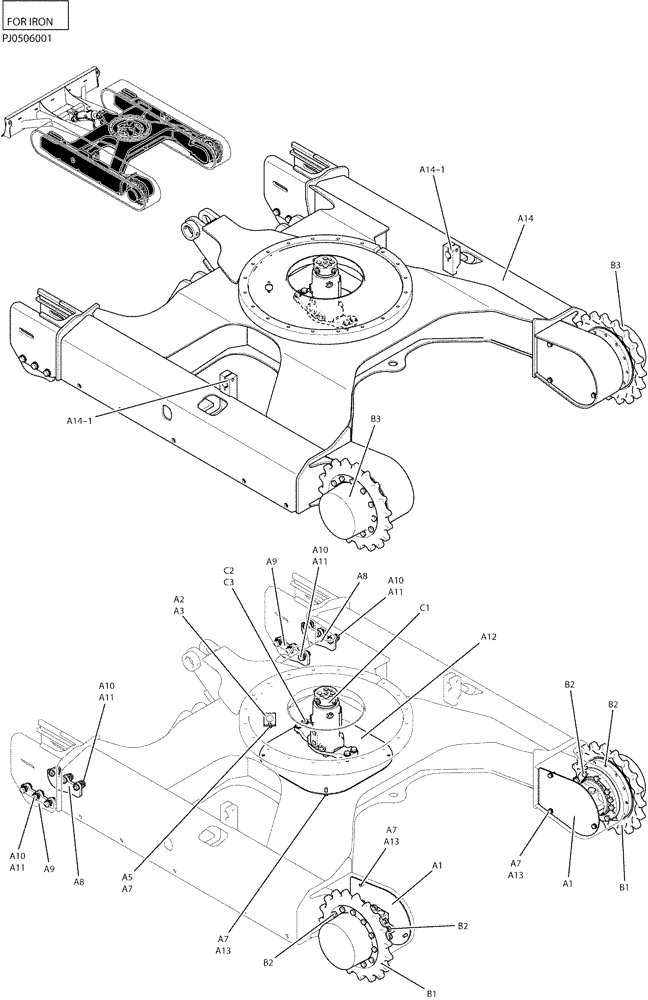

Схема запчастей Case CX50B - (02-002) - LOW GROUP, P/N PY01F00014F1 (39) - FRAMES AND BALLASTING
b1
a13
a1
a10
a8
a8
a7
a7
a10
a7
c2
a1
a13
a11
a3
c3
a14-1
a9
a12
a7
a10
b2
b1
b2
a14
b2
a11
a11
a2
b3
b2
a5
b3
a14-1
a13
a9
a10
a11
c1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01F00014F1

LOW GROUP (IRON)

1шт.

a1

PY01F01019P1

COVER

COVER

2шт.

a2

2422T556

PLATE

1шт.

a3

2418T12274

PACKING

1шт.

a5

ZS18C10014

SCREW,Hex, M10 x 14mm

CAP

2шт.

a7

ZW26X10000

LOCK WASHER

2шт.

a8

PY01F01008P1

PLATE

2шт.

a9

PY01F01001P1

PLATE

2шт.

a10

ZS18C16040

SCREW,Hex, M16 x 40mm

CAP

12шт.

a11

ZW16H16000

WASHER

12шт.

a12

2414P7671

COVER

1шт.

a13

ZM73C10020

BOLT,M10x20mm - Course Thread

SEMS

10шт.

a14

PY02F00032P1

FRAME, LOW

1шт.

a14-1

PY07F01030P1

SUPPORT

2шт.

PY53D00003F1

MOTOR INSTAL, PROPEL

1шт.

b1

PY51D01002P1

SPROCKET

2шт.

b2

ZS18C14035

SCREW,Hex, M14 x 35mm

CAP

44шт.

b3

PH15V00012F1

HYDRAULIC MOTOR

ASSY, PROPEL

2шт.

SEE (C.P.M)

1шт.

YJ19H00002F1

HYDRAULIC SWIVEL

JOINT INSTAL

1шт.

c1

24100J12703F1

HYDRAULIC SWIVEL

JOINT ASSY

1шт.

SEE (C.P.M)

1шт.

c2

ZS18C14035

SCREW,Hex, M14 x 35mm

CAP

4шт.

c3

ZW16X14000

WASHER

4шт.
