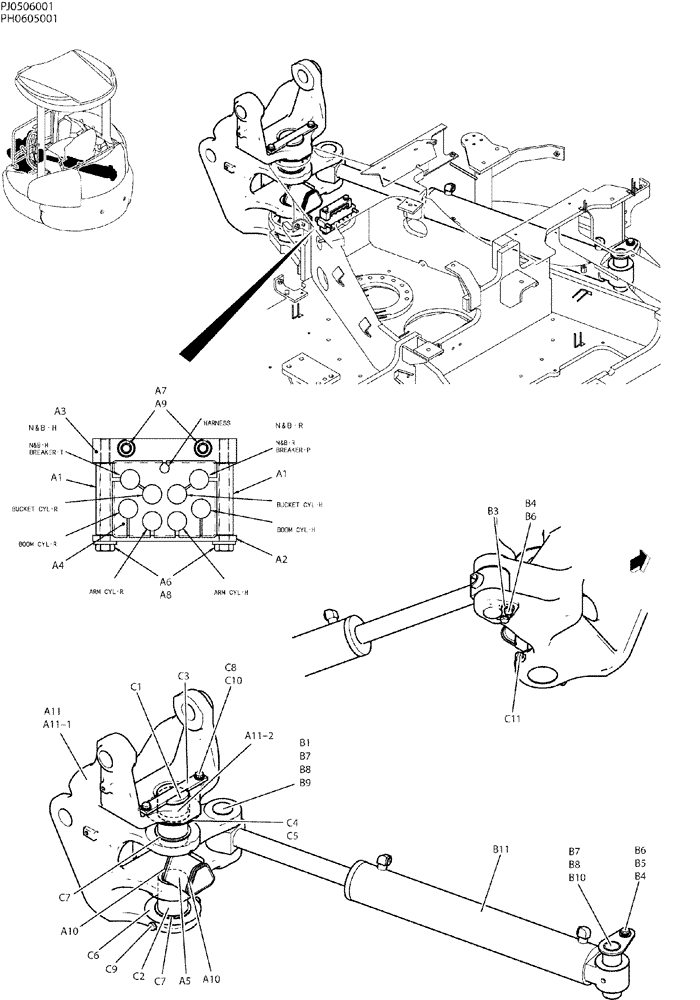

Запчасти Case CX50B (01-003) - BRACKET ASSY, SWING (NIBBLER & BREAKER) (39) - FRAMES AND BALLASTING

PY02B00139F1

BRACKET GROUP, SWING

1шт.

a1

PY02B01247P1

PLATE

2шт.

a2

PY02B01244P1

PLATE

1шт.

a3

PY02B01245P1

PLATE

PLATE

1шт.

a4

PY02B01246P1

RUBBER INSULATOR

RUBBER

1шт.

a5

PY02B01168P2

GROMMET

1шт.

a6

ZS18C10110

SCREW,Hex, M10 x 110mm

CAPSCREW

2шт.

a7

ZS28C10055

SCREW,Hex Socket Head, M10 x 55mm

CAP

2шт.

a8

ZW16H10000

WASHER

WASHER

2шт.

a9

ZW26X10000

LOCK WASHER

2шт.

a10

YX03H01046P1

CLIP

2шт.

a11

PY02B00078F1

BRACKET

ASSY, SWING

1шт.

a11-1

PY02B00079P2

BRACKET

SWING

1шт.

a11-2

PY02B01146P1

BUSHING,80mm ID x 90mm OD x 40.5mm L

1шт.

PY02B00116F1

CYLINDER INSTAL

1шт.

b1

PY02B01163P1

PIN,50mm OD x 164mm L

1шт.

b3

PH02B01065P1

PLATE

1шт.

b4

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

3шт.

b5

2418T12345

WASHER

1шт.

b6

ZW26X12000

LOCK WASHER

3шт.

b7

PH02B01067P1

SHIM,0.5mm Thk

6шт.

b8

2418T6856D3

SHIM

(0.9)

2шт.

b9

PY02B01187P1

SHIM,2.0mm Thk

2шт.

b10

PY02B01241P1

PIN

PIN

1шт.

b11

PH01V00031F1

CYLINDER

ASSY, SWING

1шт.

SEE (C.P.M)

1шт.

PY02B00082F1

BRACKET INSTAL, SWING

1шт.

c1

PY02B01158P1

PIN,85mm OD x 164mm L

1шт.

c2

PH02B01048P1

PIN,80mm OD x 142mm L

1шт.

c3

PY02B01177P1

PLATE

1шт.

c4

PH02B01050P1

WASHER

1шт.

c5

PH02B01051P1

WASHER

1шт.

c6

PH02B01066P1

SHIM,0.5mm Thk

1шт.

c7

2445R138D7

SEAL,80mm ID x 95mm OD x 4mm Thk

SEAL, DUST

2шт.

c8

ZS18C12025

SCREW,Hex, M12 x 25mm

CAP

2шт.

c9

HS18C12170G1

SCREW

CAP

1шт.

c10

ZW16H12000

WASHER

2шт.

c11

ZN18C12010

NUT

2шт.
