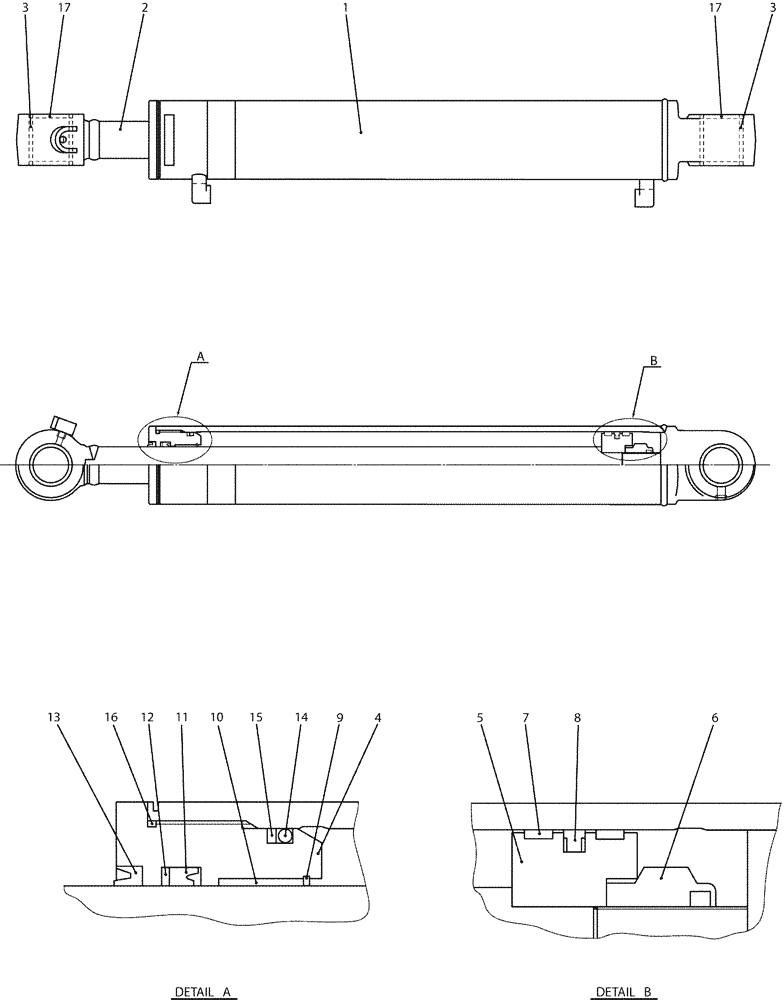

Запчасти Case CX50B (07-040) - CYLINDER ASSY, SWING (35) - HYDRAULIC SYSTEMS

PH01V00031F1

CYLINDER

ASSY, SWING

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00031S003

BUSHING

2шт.

4

PH01V00031S004

CYLINDER HEAD

1шт.

5

PH01V00031S005

PISTON

1шт.

6

PH01V00031S006

NUT

1шт.

7

PH01V00027S010

RING

WEAR

2шт.

8

PH01V00027S011

RING

SEAL

1шт.

9

PH01V00027S013

RING

RETAINING

1шт.

10

PH01V00031S010

BUSHING

1шт.

11

PH01V00027S015

CIRCLIP

U-RING

1шт.

12

PH01V00027S016

RING

BACK UP

1шт.

13

PH01V00027S017

RING

WIPER

1шт.

14

ZD12P08000

O-RING

1шт.

15

ZD85P08000

BACK-UP RING

1шт.

16

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

17

PH01V00027S021

RING

WIPER

4шт.

PH01V00031R100

REPAIR KIT

CONSISTS OF REF. 1 X 1, 3 X 1

1шт.

PH01V00031R200

REPAIR KIT

CONSISTS OF REF. 2 X 1, 3 X 1

1шт.

PH01V00031R300

REPAIR KIT

CONSISTS OF REF. 7 X 2, 8 X 1, 11 X 1, 12 X 1, 13 X 1, 14 X 1, 15 X 1, 16 X 1

1шт.
