(07-038) - CYLINDER ASSY, BUCKET

Запчасти Case CX50B (07-038) - CYLINDER ASSY, BUCKET (35) - HYDRAULIC SYSTEMS

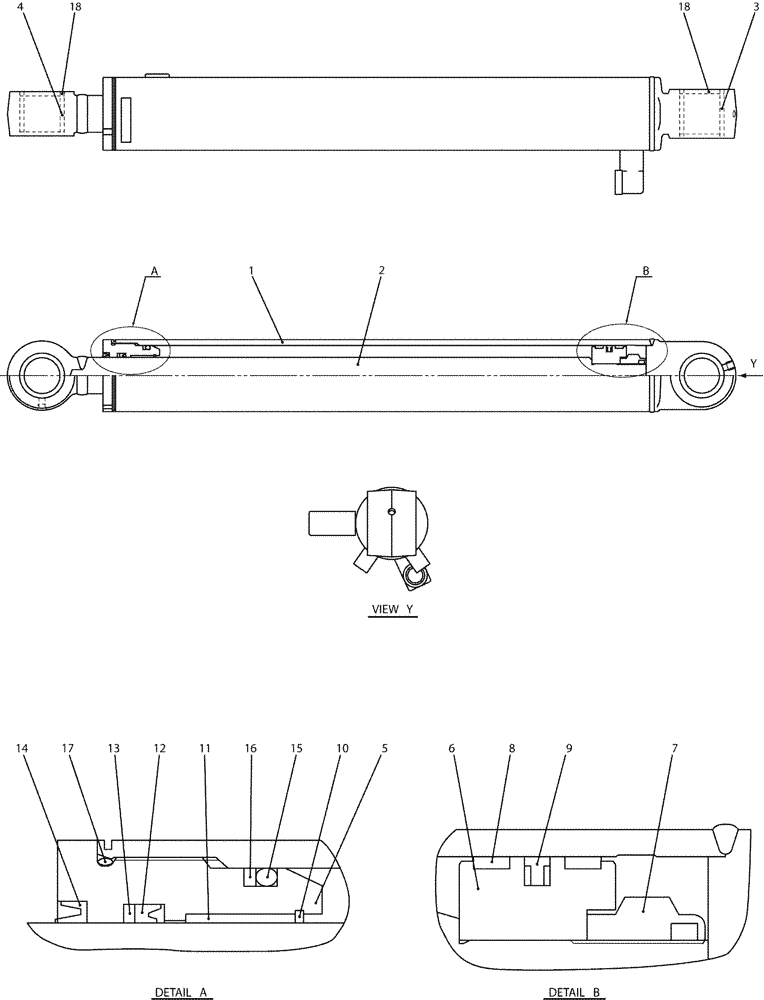

Схема запчастей Case CX50B - (07-038) - CYLINDER ASSY, BUCKET (35) - HYDRAULIC SYSTEMS
1
15
6
16
10
18
4
2
12
7
3
8
14
13
9
11
17
18
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY01V00044F1

CYLINDER

ASSY, BUCKET

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00034S003

BUSHING

1шт.

4

PH01V00034S004

BUSHING

1шт.

5

PH01V00034S005

CYLINDER HEAD

1шт.

6

PH01V00034S006

PISTON

1шт.

7

PH01V00034S007

NUT

LOCK

1шт.

8

PH01V00034S009

RING

WEAR

2шт.

9

PH01V00034S010

RING

SEAL

1шт.

10

PH01V00034S011

CIRCLIP

RETAINING

1шт.

11

PH01V00034S012

BUSHING

BUSHING

1шт.

12

PH01V00034S013

RING

1шт.

13

PH01V00034S014

RING

BACK UP

1шт.

14

PH01V00034S015

RING

1шт.

15

ZD12P06500

O-RING

1шт.

16

ZD85P06500

RING

BACK UP

1шт.

17

ZD11G07500

O-RING,74.40mm ID x 80.60mm OD x 3.10mm

1шт.

18

PH01V00034S020

RING

SEAL, DUST

4шт.

PH01V00034R200

REPAIR KIT

CONSISTS OF REF. 2X1, 4X1

1шт.

PH01V00034R300

REPAIR KIT

CONSISTS OF REF. 8X2, 9X1, 12X1, 13X1, 14X1, 15X1, 16X1, 17X1

1шт.

PY01V00044R100

REPAIR KIT

REPAIR KIT, CONSISTS OF REF. 1 X 1, 3 X 1

1шт.
