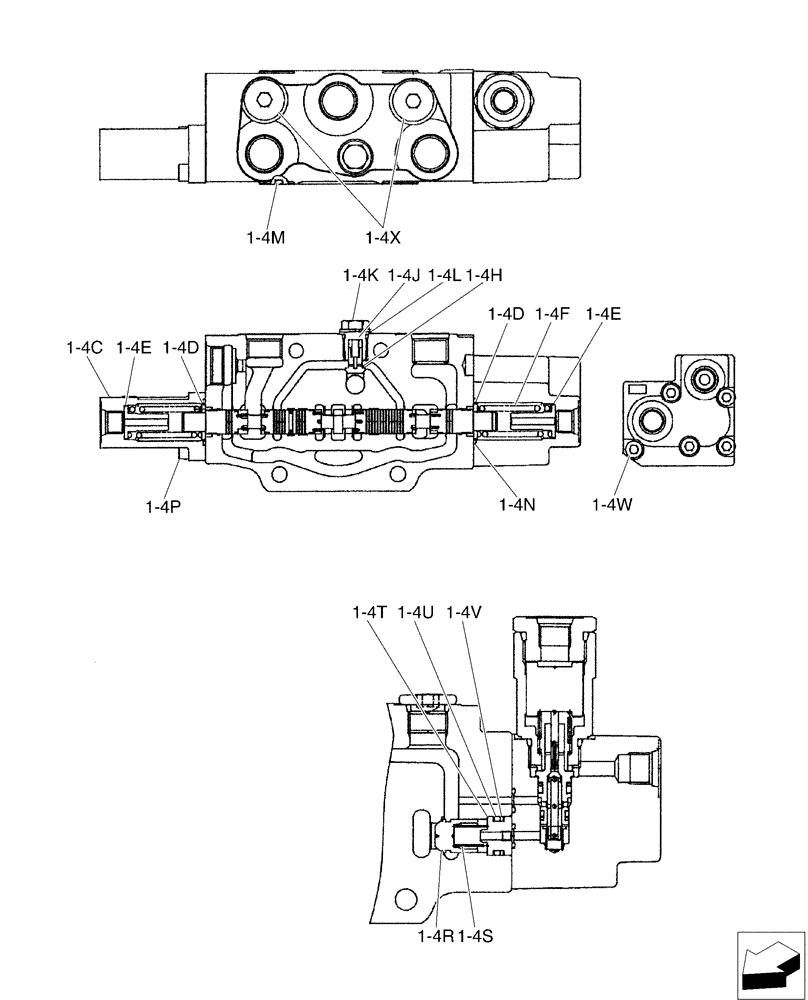

Запчасти Case CX50B (01-024[04]) - VALVE INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

1-4c

PH30V00053S003

CAP

1шт.

1-4d

2436R919S10

SEAT

Spring

2шт.

1-4e

PH30V00053S005

VALVE SEAT

2шт.

1-4f

PH30V00053S006

SPRING

2шт.

1-4h

PH30V00053S007

POPPET

1шт.

1-4j

PH30V00053S009

SPRING

1шт.

1-4k

PH30V00053S010

PLUG

1шт.

1-4l

2436U1192S19

O-RING

1шт.

1-4m

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

1-4n

2436R668S3

O-RING

2шт.

1-4p

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

2шт.

1-4r

PH30V00054S015

POPPET

1шт.

1-4s

PH30V00054S016

SPRING

1шт.

1-4t

PH30V00054S017

SPACER

1шт.

1-4u

ZD11P01250

O-RING

1шт.

1-4v

ZD85P01250

BACK-UP RING

1шт.

1-4w

ZS23C06050

CAPSCREW,Hex Socket Head, M6 x 50mm

5шт.

1-4x

PA30V00001S018

PLUG

2шт.

12

2416Z649

CUSHION

Rubber

1шт.
