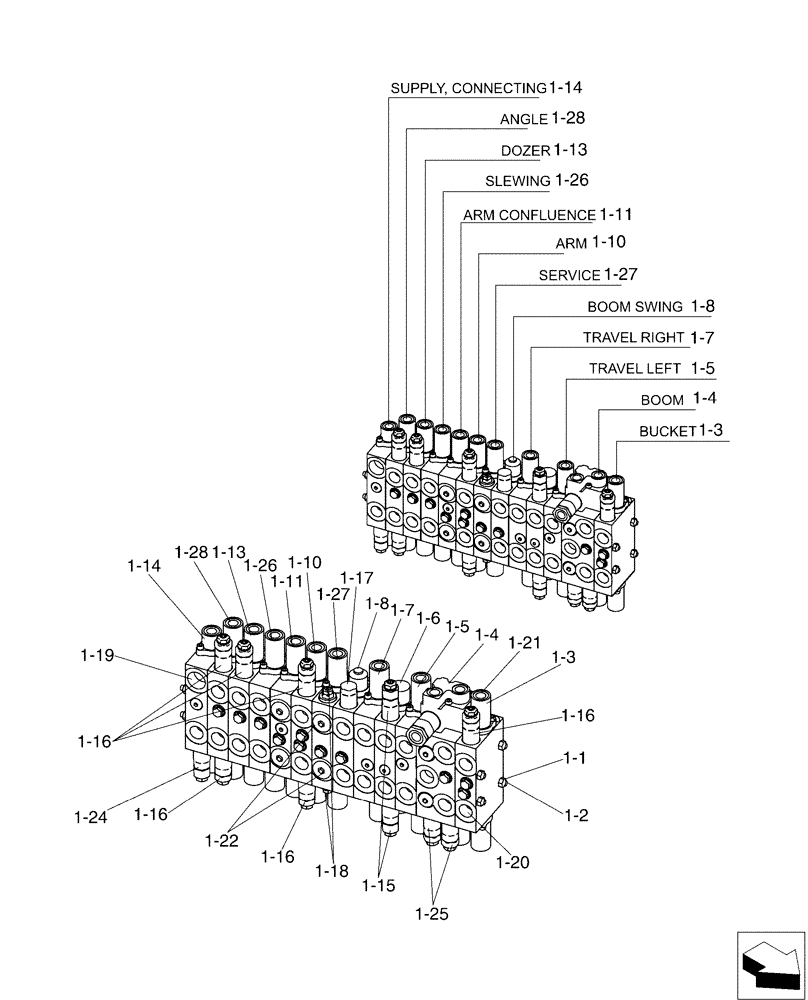

Запчасти Case CX50B (01-024[02]) - VALVE INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

1-1

ZN18C08007

NUT

8шт.

1-2

PH30V00052S002

SCREW

4шт.

1-3

PH30V00053F1

VALVE

Control

1шт.

1-4

PH30V00054F1

VALVE

Control

1шт.

1-5

PH30V00055F1

VALVE

Control

1шт.

1-6

PH30V00056F1

VALVE

Control

1шт.

1-7

PH30V00057F1

VALVE

Control

1шт.

1-8

PH30V00058F1

VALVE

Control

1шт.

1-10

PH30V00060F1

VALVE

Control

1шт.

1-11

PH30V00061F1

VALVE

Control

1шт.

1-13

PH30V00063F1

VALVE

Control

1шт.

1-14

PH30V00064F1

VALVE

Control

1шт.

1-15

PH22V00014F1

VALVE

Assy., Relief

2шт.

1-16

PY22V00010F1

VALVE

Relief

6шт.

1-17

PH22V00013F1

VALVE

Assy., Antivoid

1шт.

1-18

PH50T00002F1

PLUG

2шт.

1-19

2436U2937S17

PLUG

1шт.

1-20

YR30V00014S010

PLUG

22шт.

1-21

2436U2937S18

PLUG

22шт.

1-22

YR30V00024S014

PLUG

2шт.

1-24

PH22V00014F2

VALVE

Assy., Relief

1шт.

1-25

PY22V00010F2

VALVE

Relief

2шт.

1-26

PH30V00062F2

VALVE

Control

1шт.

1-27

PH30V00059F2

VALVE

Control

1шт.

1-28

PH30V00067F2

CONTROL VALVE

Control

1шт.
