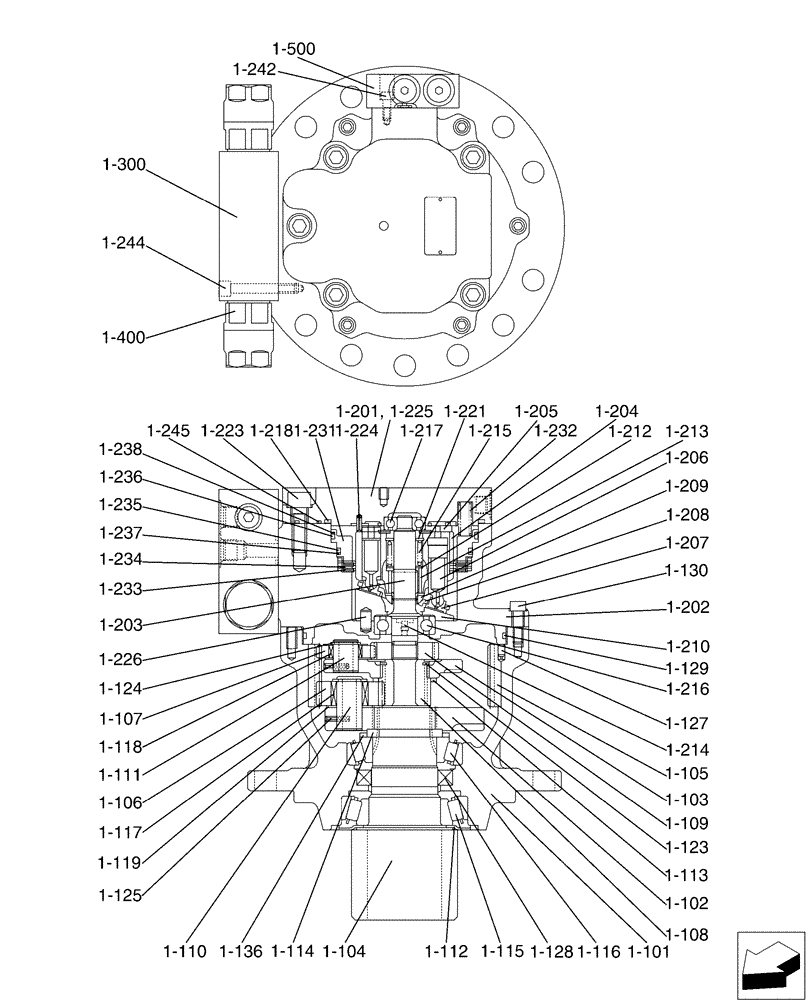

Запчасти Case CX50B (01-022[02]) - MOTOR INSTAL, SWING (35) - HYDRAULIC SYSTEMS

1-101

NSS

NOT SOLD SEPARAT

Body

1шт.

1-102

NSS

NOT SOLD SEPARAT

Carrier

1шт.

1-103

NSS

NOT SOLD SEPARAT

Carrier

1шт.

1-104

NSS

NOT SOLD SEPARAT

Shaft

1шт.

1-105

NSS

NOT SOLD SEPARAT

Gear

1шт.

1-106

NSS

NOT SOLD SEPARAT

Gear

4шт.

1-107

NSS

NOT SOLD SEPARAT

Gear

3шт.

1-108

NSS

NOT SOLD SEPARAT

Gear

1шт.

1-109

PY15V00012S109

GEAR

1шт.

1-110

NSS

NOT SOLD SEPARAT

Pin

4шт.

1-111

NSS

NOT SOLD SEPARAT

Pin

3шт.

1-112

NSS

NOT SOLD SEPARAT

Ring

1шт.

1-113

PY15V00012S113

COLLAR

1шт.

1-114

NSS

NOT SOLD SEPARAT

Collar

2шт.

1-115

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

1-116

NSS

NOT SOLD SEPARAT

Bearing, Roller

1шт.

1-117

NSS

NOT SOLD SEPARAT

Bearing, Needle

68шт.

1-118

NSS

NOT SOLD SEPARAT

Bearing, Needle

69шт.

1-119

NSS

NOT SOLD SEPARAT

Washer, Thrust

14шт.

1-123

ZR16X03000

SNAP RING

Snap

1шт.

1-124

ZR16X02000

RING

Snap

7шт.

1-125

NSS

NOT SOLD SEPARAT

Pin, Spring

7шт.

1-127

NSS

NOT SOLD SEPARAT

Pin

4шт.

1-128

NSS

NOT SOLD SEPARAT

Oil Seal

1шт.

1-129

PY15V00012S129

O-RING

1шт.

1-130

ZS23C08025

SCREW,Hex Socket Head, M8 x 25mm

Cap

5шт.

1-136

PY15V00012S136

RING

1шт.

1-201

NSS

NOT SOLD SEPARAT

Body

1шт.

1-202

NSS

NOT SOLD SEPARAT

Body

1шт.

1-203

NSS

NOT SOLD SEPARAT

Shaft

1шт.

1-204

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

1-205

NSS

NOT SOLD SEPARAT

Plate, Valve

1шт.

1-206

NSS

NOT SOLD SEPARAT

Piston

9шт.

1-207

NSS

NOT SOLD SEPARAT

Shoe

9шт.

1-208

NSS

NOT SOLD SEPARAT

Holder

1шт.

1-209

NSS

NOT SOLD SEPARAT

Holder

1шт.

1-210

NSS

NOT SOLD SEPARAT

Plate, Shoe

1шт.

1-212

NSS

NOT SOLD SEPARAT

Retainer

2шт.

1-213

NSS

NOT SOLD SEPARAT

Pin

3шт.

1-214

PM15V00008S014

FILTER

2шт.

1-215

NSS

NOT SOLD SEPARAT

Spring

1шт.

1-216

PY15V00012S216

BALL BEARING

1шт.

1-217

PR15V00004S074

BEARING

Ball

1шт.

1-218

ZD12G12000

O-RING,3.1mm Thk x 119.4mm ID, 90 Duro

1шт.

1-221

ZR26X02800

RING

Snap

1шт.

1-223

ZS23C12035

SCREW,Hex Socket Head, M12 x 35mm

Cap

5шт.

1-224

NSS

NOT SOLD SEPARAT

Pin, Spring

1шт.

1-225

PM15V00008S022

PIN

1шт.

1-226

NSS

NOT SOLD SEPARAT

Pin

1шт.

1-231

NSS

NOT SOLD SEPARAT

Piston, Brake

1шт.

1-232

NSS

NOT SOLD SEPARAT

Spring

12шт.

1-233

NSS

NOT SOLD SEPARAT

Plate, Friction

2шт.

1-234

NSS

NOT SOLD SEPARAT

Plate, Separator

2шт.

1-235

ZD12G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

1-236

ZD12G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

1-237

ZD75G10000

BACK-UP RING

1шт.

1-238

ZD75G11000

RING

Back-up

1шт.

1-242

ZS23C06015

SCREW,Hex Socket Head, M6 x 15mm

Cap

4шт.

1-244

NSS

NOT SOLD SEPARAT

Capscrew

4шт.

1-245

ZD12P01800

O-RING

2шт.

1-400

PY22V00009F1

VALVE

Relief

2шт.

1-500

PY64H00003F1

HYDRAULIC VALVE

1шт.

PY22V00009R100

REPAIR KIT

Consists Of Ref: 1-400Z408 (1), 1-400Z410 (1), 1-400Z411 (1), 1-400Z412 (2)

1шт.

PY15V00012R600

REPAIR KIT

Consists Of Ref: 1-101 (1), 1-104 (1), 1-105 (1), 1-112 (1), 1-115 (1), 1-116 (1), 1-128 (1), 1-114 (2), 1-127 (4)

1шт.

PY15V00012R610

REPAIR KIT

Consists Of Ref: 1-102 (1), 1-106 (4), 1-110 (4), 1-125 (7), 1-119 (14), 1-117 (68)

1шт.

PY15V00012R620

REPAIR KIT

Consists Of Ref: 1-103 (1), 1-108 (1), 1-123 (1), 1-107 (3), 1-111 (3), 1-124 (7), 1-125 (7), 1-119 (14), 1-118 (69)

1шт.

PY15V00012R630

REPAIR KIT

Consists Of Ref: 1-201 (1), 1-217 (1), 1-224 (1), 1-245 (2)

1шт.

PY15V00012R640

REPAIR KIT

Consists Of Ref: 1-204 (1), 1-205 (1), 1-208 (1), 1-209 (1), 1-215 (1), 1-221 (1), 1-212 (2), 1-213 (3), 1-206 (9), 1-207 (9)

1шт.

PY15V00012R650

REPAIR KIT

Consists Of Ref: 1-210 (1), 1-226 (1)

1шт.

PY15V00012R660

REPAIR KIT

Consists Of Ref: 1-218 (1), 1-235 (1), 1-236 (1), 1-237 (1), 1-238 (1), 1-245 (2)

1шт.
