(01-021[01]) - POWER TAKE-OFF ASSY, COOLER

Запчасти Case CX50B (01-021[01]) - POWER TAKE-OFF ASSY, COOLER (35) - HYDRAULIC SYSTEMS

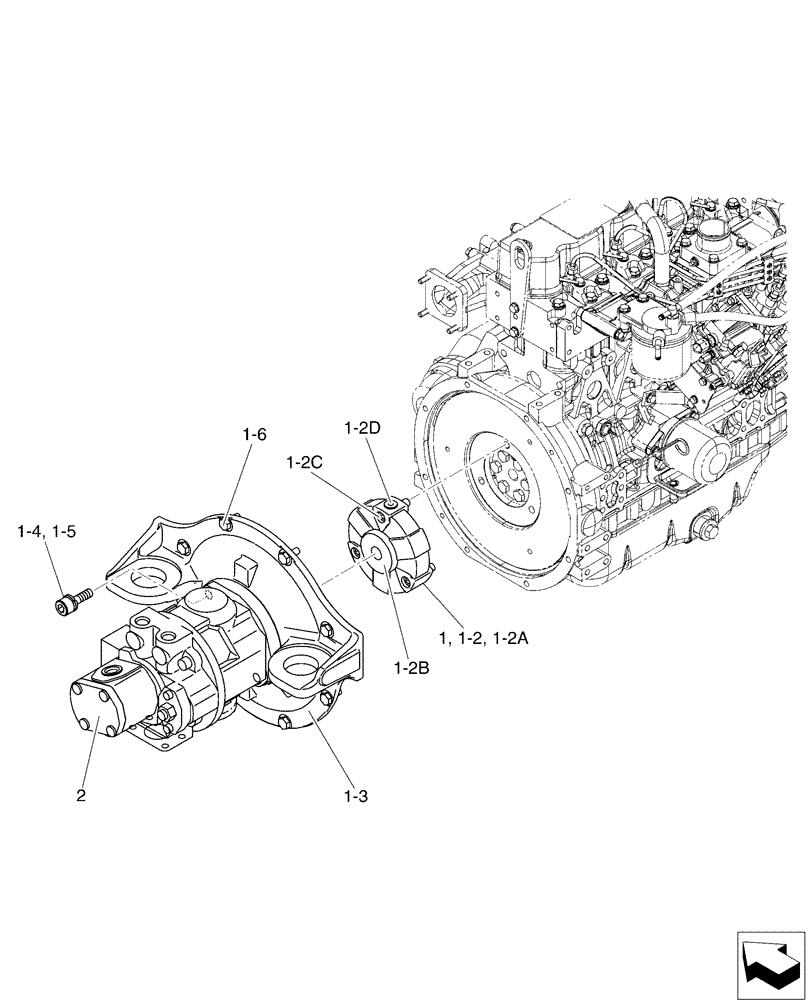

Схема запчастей Case CX50B - (01-021[01]) - POWER TAKE-OFF ASSY, COOLER (35) - HYDRAULIC SYSTEMS
2
1-4
1-2
1-3
1-2a
1-6
1-2d
1-2c
1-5
1-2b
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

PH30P00009F1

1шт.

1-2

PW30P01007F1

COUPLING

1шт.

1-2a

PW30P01002S001

COUPLING

1шт.

1-2b

PW30P01002S002

HUB

1шт.

1-2c

PW30P01002S003

CAPSCREW,Hex Socket Head, M12 x 40mm

3шт.

1-2d

PY30P01003S004

CAPSCREW,Hex Socket Head, M12 x 35mm

3шт.

1-3

PW30P01005P2

BRACKET

1шт.

1-4

PV17M01003D1

SCREW

Cap

2шт.

1-5

ZW16K12000

WASHER

2шт.

1-6

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

8шт.

2

PH10V00015F1

HYDRAULIC PUMP

1шт.
