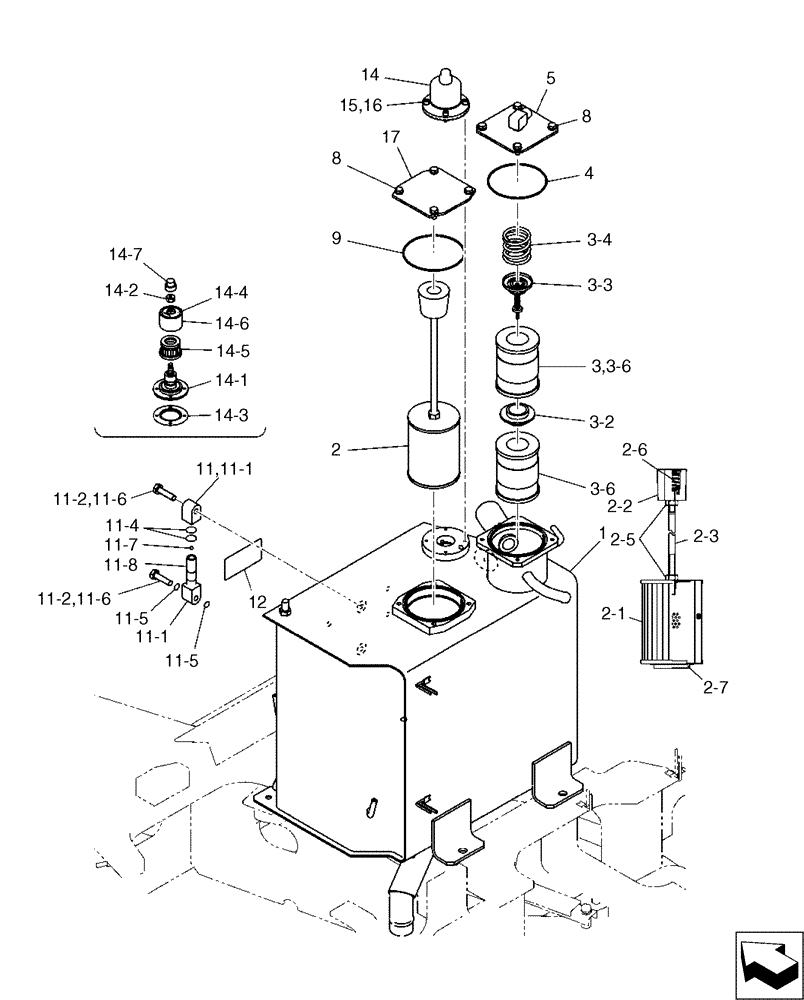

Запчасти Case CX50B (01-019) - TANK ASSY, HYD (35) - HYDRAULIC SYSTEMS

PH33H00030F1

Hyd

1шт.

1

PH33H00026P1

TANK

1шт.

2

PW50V00015F1

STRAINER ASSY.

Suction

1шт.

2-1

PM50V00017S001

FILTER STRAINER

1шт.

2-2

2446R176S2

HOLDER

1шт.

2-3

PM50V00017S006

BOLT

1шт.

2-5

ZN11C10008

NUT

2шт.

2-6

2446R176S5

SPRING

1шт.

2-7

NSS

NOT SOLD SEPARAT

O-Ring

1шт.

3

YR52V01004F2

ELEMENT

1шт.

3-2

YR52V01001S002

RUBBER JOINT

1шт.

3-3

YR21V00001P1

VALVE

Check

1шт.

3-4

YR52V01001S004

SPRING

1шт.

3-6

YR52V01003P2

HYDRAULIC OIL FILTER

2шт.

4

ZD11G11000

O-RING,109.40mm ID x 115.60mm OD x 3.10mm

1шт.

5

PM33H01083P2

COVER

1шт.

8

ZM73C08016

BOLT,M8x16mm - Course Thread

Sems

8шт.

9

ZD11G11500

O-RING,114.40mm ID x 120.60mm OD x 3.10mm

1шт.

11

YN58S00009F3

GAUGE ASSY.

Level, Oil

1шт.

11-1

NSS

NOT SOLD SEPARAT

Block

2шт.

11-2

NSS

NOT SOLD SEPARAT

Capscrew

2шт.

11-4

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

11-5

NSS

NOT SOLD SEPARAT

O-Ring

4шт.

11-6

NSS

NOT SOLD SEPARAT

Washer

2шт.

11-7

NSS

NOT SOLD SEPARAT

Ball

1шт.

11-8

NSS

NOT SOLD SEPARAT

Gauge

1шт.

12

YF33H01020P1

LABEL

1шт.

14

YN57V00002F4

BREATHER ASSY.

1шт.

14-1

2446U260S1

BODY

1шт.

14-2

2446U260S5

NUT

1шт.

14-3

2446U260S8

PACKING

1шт.

14-4

YN57V00002S007

IDENTITY PLATE

Caution

1шт.

14-5

YN57V00002S010

ELEMENT

1шт.

14-6

YN57V00002S011

COVER

1шт.

14-7

YN57V00002S012

CAP

1шт.

15

ZS28C06016

SCREW,Hex Socket Head, M6 x 16mm

4шт.

16

ZW26K06000

LOCK WASHER

4шт.

17

PH33H01074P1

COVER

1шт.

YR52V01004R400

REPAIR KIT

Consists Of Ref: 3-2(1), 4(1), 3-6(2)

1шт.
