(01-005) - CYLINDER INSTAL, SWING

Запчасти Case CX50B (01-005) - CYLINDER INSTAL, SWING (35) - HYDRAULIC SYSTEMS

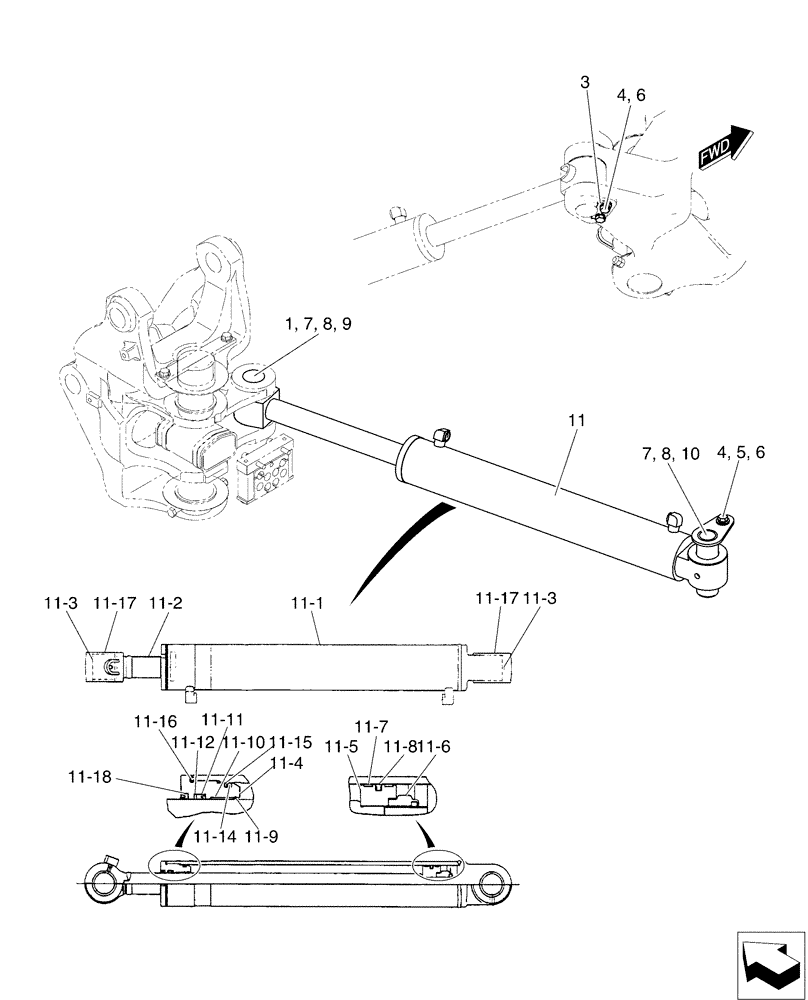

Схема запчастей Case CX50B - (01-005) - CYLINDER INSTAL, SWING (35) - HYDRAULIC SYSTEMS
9
11-16
11-14
11-9
11-10
11-17
5
11-8
11-1
11
11-5
7
6
11-16
1
4
11-3
11-12
8
8
11-2
11-7
3
11-11
10
11-14
11-15
11-18
11-17
11-3
6
7
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PY02B00116F1

(Swing)

1шт.

1

PY02B01163P1

PIN,50mm OD x 164mm L

1шт.

3

PH02B01065P1

PLATE

1шт.

4

ZS18C12025

SCREW,Hex, M12 x 25mm

Cap

3шт.

5

2418T12345

WASHER

1шт.

6

ZW26X12000

LOCK WASHER

3шт.

7

PH02B01067P1

SHIM,0.5mm Thk

6шт.

8

2418T6856D3

SHIM

2шт.

9

PY02B01187P1

SHIM,2.0mm Thk

2шт.

10

PY02B01241P1

PIN

1шт.

11

PH01V00031F2

CYLINDER,Double Acting, 50mm Rod, 567mm Stroke

Swing

1шт.

11-1

NSS

NOT SOLD SEPARAT

Tube, Cylinder

1шт.

11-2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

11-3

PH01V00031S003

BUSHING

2шт.

11-4

PH01V00031S004

CYLINDER HEAD

1шт.

11-5

PH01V00031S005

PISTON

1шт.

11-6

PH01V00031S006

NUT

Lock

1шт.

11-7

PH01V00027S010

RING

Wear

2шт.

11-8

PH01V00027S011

RING

1шт.

11-9

PH01V00027S013

RING

Retaining

1шт.

11-10

PH01V00031S010

BUSHING

1шт.

11-11

PH01V00027S015

CIRCLIP

1шт.

11-12

PH01V00027S016

RING

Back Up

1шт.

11-14

ZD12P08000

O-RING

1шт.

11-15

ZD85P08000

BACK-UP RING

1шт.

11-16

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

11-17

PH01V00027S021

RING

Dust

4шт.

11-18

PH01V00037S023

RING

1шт.

PH01V00031R100

REPAIR KIT

Consists Of Ref: 11-1(1), 11-3(1)

1шт.

PH01V00031R200

REPAIR KIT

Consists Of Ref: 11-2(1), 11-3(1)

1шт.

PH01V00031R400

SEAL KIT

Repair, Consists Of Ref: 11-8(1), 11-11(1), 11-12(1), 11-14(1), 11-15(1), 11-16(1), 11-18(1), 11-7(2)

1шт.
