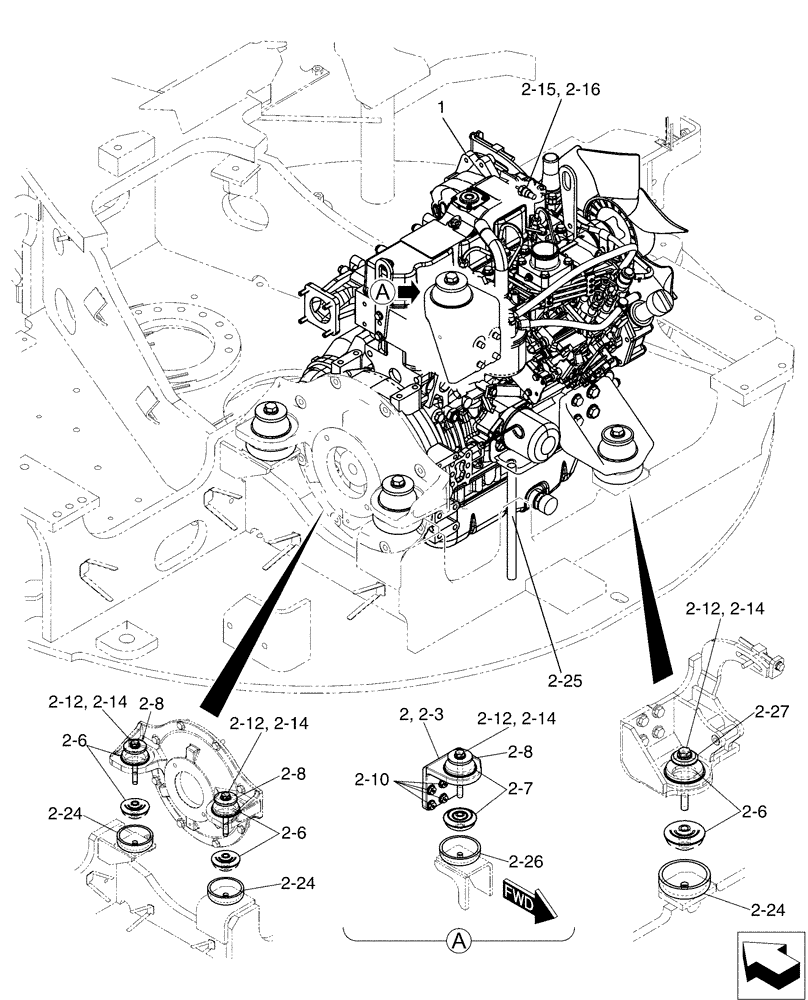

Запчасти Case CX50B (1-009) - ENGINE INSTAL (10) - ENGINE

PY02P00024F1

1шт.

1

PH02P00015F2

ENGINE

1шт.

2

PY02P00025F1

1шт.

2-3

PH02P01043P1

BRACKET

1шт.

2-6

PW02P01054D1

RUBBER MOUNTING

6шт.

2-7

PH02P01048D1

RUBBER MOUNTING

2шт.

2-8

PW01P01022P1

WASHER

3шт.

2-10

ZS73C10025

BOLT

Sems

4шт.

2-12

ZS18C12120

SCREW,Hex, M12 x 120mm

Cap

4шт.

2-14

ZW16H12000

WASHER

4шт.

2-15

PA24S00003P1

SENSOR,50-120 Degree C

(Used for Engine Temp Gauge)

1шт.

2-16

PA13E01027P1

PACKING

1шт.

2-24

PW02P01041P1

COVER

3шт.

2-25

PW02P01047D1

HOSE,12mm ID x 250mm L

1шт.

2-26

PH02P01060P1

COVER

1шт.

2-27

PH02P01061P1

WASHER

1шт.
