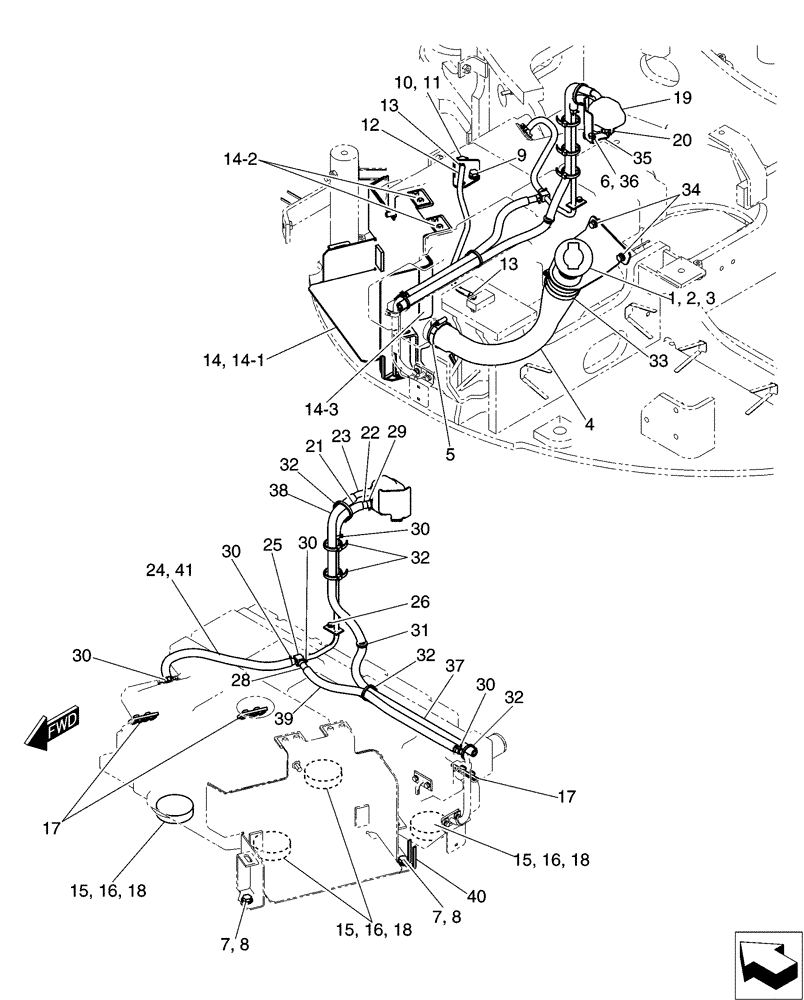

Запчасти Case CX50B (01-017) - TANK INSTAL, FUEL, CAB (10) - ENGINE

PH20P00018F1

Fuel, (Cab)

1шт.

1

PW20P01357P2

NECK FILLER

1шт.

2

PW20P01282P1

CAP

1шт.

3

PW50V00009P1

STRAINER ASSY.

1шт.

4

PW20P01317P1

HOSE

1шт.

5

ZC16X05000

CLIP

1шт.

6

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

7

ZS18C10020

SCREW,Hex, M10 x 20mm

Cap

2шт.

8

ZW16H10000

WASHER

2шт.

9

ZM22C10020

BOLT

Sems

1шт.

10

YN05P00010S007

COCK, DRAIN

1шт.

11

PM05P01046P1

BOSS

1шт.

12

PA21P01005DW

HOSE,7mm ID x 500mm L

1шт.

13

PH05P01088D6

CLIP

2шт.

14

PH20P01077F1

BRACKET

1шт.

14-1

PH20P01074P1

BRACKET

1шт.

14-2

PW20P01207P1

RUBBER

2шт.

14-3

PH20P01079P1

RUBBER

1шт.

15

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

4шт.

16

PW20P01115P1

RUBBER

4шт.

17

PW20P01207P1

RUBBER

3шт.

18

ZW16K10000

WASHER

4шт.

19

PW20P00039P1

TANK

Fuel

1шт.

20

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

1шт.

21

PW21P01003D4

TUBE

1шт.

22

PW20P01348P2

HOSE

1шт.

23

PM20P01127P2

HOSE

1шт.

24

PW20P01285D5

HOSE,9mm ID x 340mm L

1шт.

25

PW20P01353P1

TUBE

1шт.

26

ZM73C06016

BOLT,M6x16mm - Course Thread

1шт.

28

PW20P01285D4

HOSE,9mm ID x 480mm L

1шт.

29

PH05P01088D7

CLIP,13.6mm - 17.5mm

1шт.

30

PH05P01088D4

CLIP

5шт.

31

2420R372D13

GROMMET

1шт.

32

PY01P01043D3

CABLE TIE,188mm L

4шт.

33

ZC16X06700

CLIP,58mm - 76mm

1шт.

34

ZM22C08020

BOLT

Sems

2шт.

35

PW20P01318P1

BRACKET

1шт.

36

ZS18C08014

SCREW,Hex, M8 x 14mm

Cap

1шт.

37

PU13E01002DC

TUBE

1шт.

38

PU13E01002D7

TUBE

1шт.

39

PU13E01002DR

TUBE

1шт.

40

2432R233D3

CLIP

1шт.

41

PW21P01003DG

TUBE

1шт.
