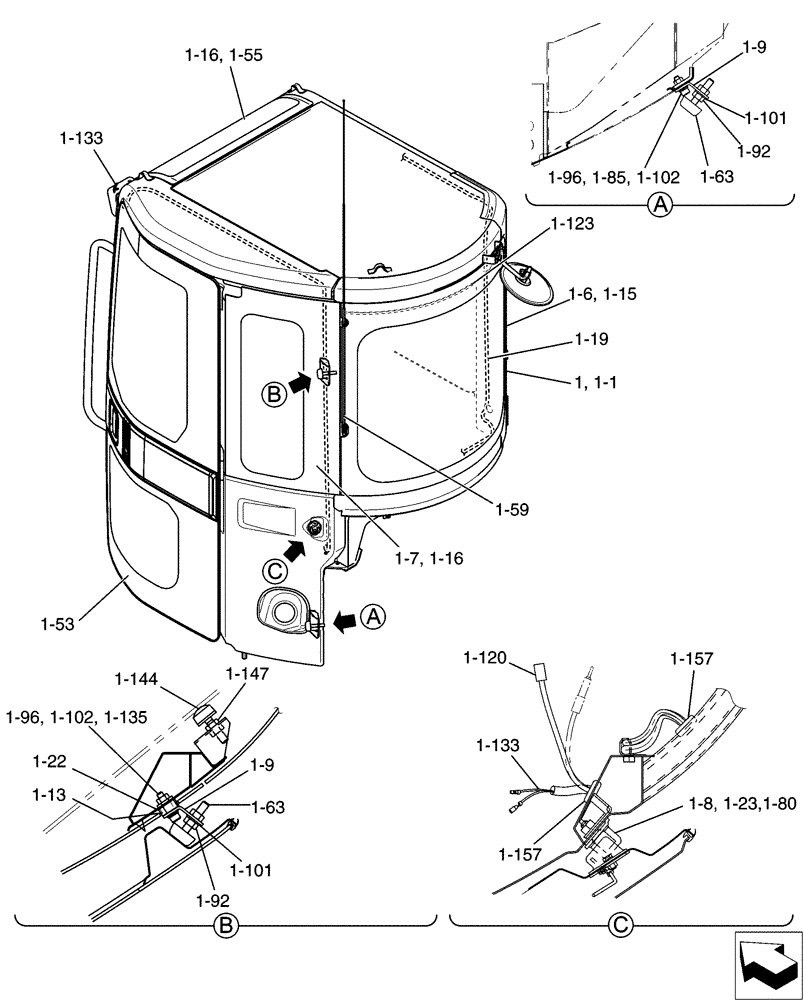

Запчасти Case CX50B (01-059[01]) - CAB INSTAL, WITH HEAD GUARD (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PW02C00086F1%KL

CAB

W/O Cooler, W/Headguard (Case Common Gray)

1шт.

1-1

PW02C00087P1

1шт.

1-6

PW02C01205P2

GLASS

1шт.

1-7

PW02C01204P1

GLASS

Window, LH AFT Cab

1шт.

1-8

YT51C01021P1

HOOK

2шт.

1-9

PW02C01110P1

BRACKET

2шт.

1-13

PW02C01220P1

SPACER

2шт.

1-15

PM02C01172D1

SEAL,7mm W x 4.8mm H x 3000mm L

1шт.

1-16

PM02C01172D2

SEAL,7mm W x 4.8mm H x 2500mm L

2шт.

1-19

PW02C01382P1

WIRE HARNESS

1шт.

1-22

PW02C01359P1

SEAL

Packing

2шт.

1-23

YT51C01077D1

SPACER

2шт.

1-53

PM51C00006F1%LD

LH CAB DOOR

(AMIRAC 1000 Black Lustrous)

1шт.

1-55

PW02C01293P1

GLASS

1шт.

1-59

PM54S00001P1

ANTENNA

1шт.

1-63

YT02C01066P1

STOP

4шт.

1-80

ZS68C10025

CAPSCREW

6шт.

1-85

ZS28C08025

SCREW,Hex Socket Head, M8 x 25mm

2шт.

1-92

ZN18F10008

NUT

4шт.

1-96

ZW26X08000

LOCK WASHER

Lock

14шт.

1-101

ZW16X10000

WASHER

2шт.

1-102

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

9шт.

1-120

PM02C01499P1

HARNESS

1шт.

1-123

YT51C01081D2

SEAL

1шт.

1-133

PW11E01034D1

HARNESS

1шт.

1-135

ZS28C08035

SCREW,Hex Socket Head, M8 x 35mm

Cap

2шт.

1-144

YR02C01503P1

STOP

1шт.

1-147

ZN17C10006

NUT

1шт.

1-157

PW02C01368P1

GROMMET

3шт.
