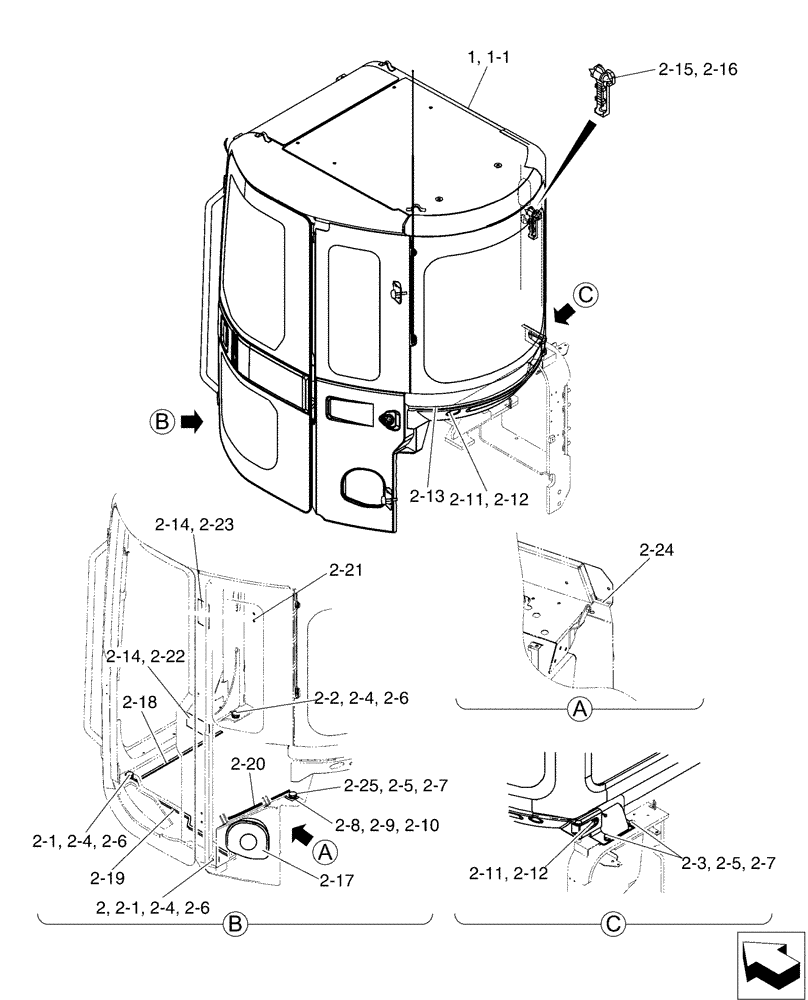

Запчасти Case CX50B (01-058[01]) - CAB INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PW02C00077F1%KS

CAB

1шт.

1-1

PW02C00078P1

CAB

1шт.

2-1

ZS18C16100

SCREW,Hex, M16 x 100mm

Cap

2шт.

2-2

ZS18C16050

SCREW,Hex, M16 x 50mm

Cap

1шт.

2-3

ZS18C12050

SCREW,Hex, M12 x 50mm

Cap

2шт.

2-4

ZW26X16000

LOCK WASHER

3шт.

2-5

ZW26X12000

LOCK WASHER

3шт.

2-6

ZW16H16000

WASHER

3шт.

2-7

ZW16H12000

WASHER

3шт.

2-8

YN21C01757D1

SHIM,1.2mm Thk

(1.2)

1шт.

2-9

YN21C01757D2

SHIM,2mm Thk

(2.0)

1шт.

2-10

YN21C01757D3

SHIM,3.2mm Thk

(3.2)

1шт.

2-11

2420T4505

WASHER,7mm ID x 16mm OD x 1mm Thk

3шт.

2-12

ZM46C06025

BOLT

Sems

3шт.

2-13

PM21C01152DN

WEATHERSTRIP

1шт.

2-14

PB06C01093D1

RIVET

8шт.

2-15

YN01T01012F1

HAMMER

1шт.

2-16

ZS32T40020

SCREW

Cross Tapping

3шт.

2-17

PW02C01186P1

COVER

1шт.

2-18

YR52F01080D4

RUBBER

1шт.

2-19

YR52F01080DD

RUBBER

1шт.

2-20

YR52F01080D1

RUBBER

1шт.

2-21

PA03M01093D1

BOLT

Sems

2шт.

2-22

PV20T01080P1

PLATE

Number

1шт.

2-23

PV20T01084P1

PLATE

Number

1шт.

2-24

PF21C01175D3

RUBBER

1шт.

2-25

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap

1шт.
