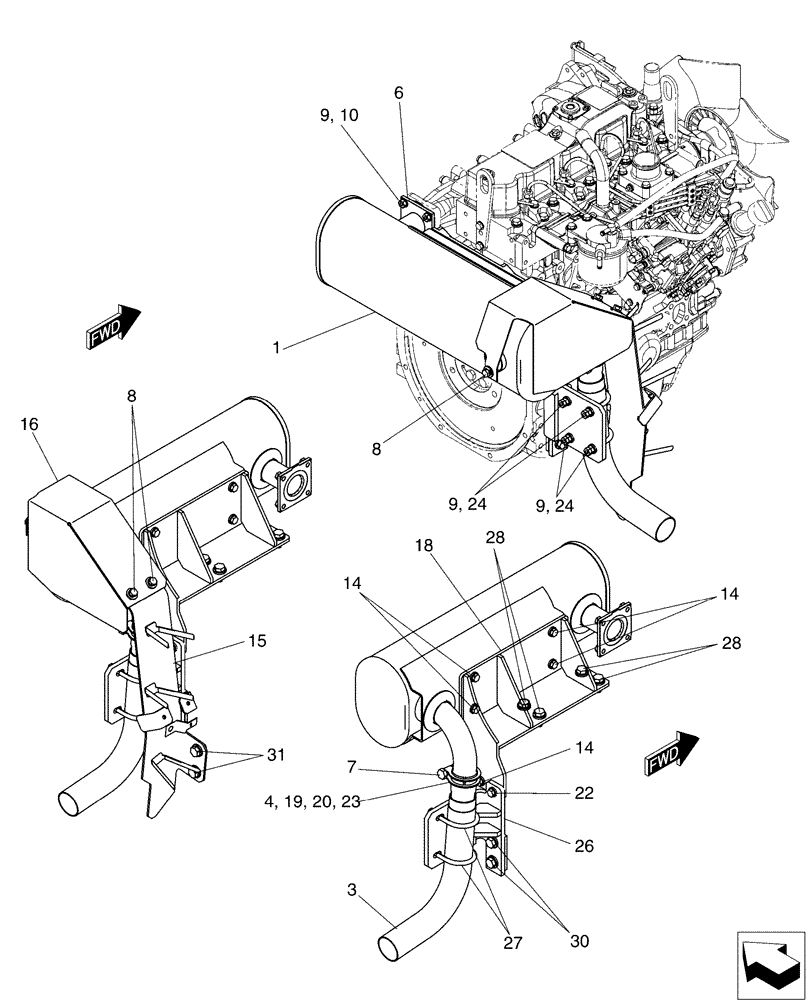

Запчасти Case CX50B (01-014) - MUFFLER ASSY (10) - ENGINE

PH12P00013F1

1шт.

1

PH12P00010P1

MUFFLER

1шт.

3

PH12P01100P1

TUBE

Exhaust

1шт.

4

PH12P01044P1

CLAMP

1шт.

6

PH12P01056P1

GASKET

1шт.

7

ZS18C10060

SCREW,Hex, M10 x 60mm

Cap

1шт.

8

PA21C01133P1

BOLT

Sems

3шт.

9

ZN18C08007

NUT

12шт.

10

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

4шт.

14

ZM73C08020

BOLT,M8x20mm - Course Thread

Sems

5шт.

15

PH12P01086P1

COVER

1шт.

16

PH12P01069P1

COVER

1шт.

18

PH12P01077P1

BRACKET

1шт.

19

ZN18C10008

NUT

1шт.

20

ZW26X10000

LOCK WASHER

1шт.

22

ZM73C08030

BOLT,M8x30mm - Course Thread

Sems

1шт.

23

ZW16H10000

WASHER

4шт.

24

ZW16H08000

WASHER

4шт.

26

PH12P01097P1

BRACKET

1шт.

27

2420T2948D4

BOLT

U

2шт.

28

ZM73C10025

BOLT,M10x25mm - Course Thread

Sems

4шт.

30

ZM73C10030

BOLT,M10x30mm - Course Thread

Sems

2шт.

31

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

2шт.
