(01-013) - CLEANER ASSY, AIR, CAB

Запчасти Case CX50B (01-013) - CLEANER ASSY, AIR, CAB (10) - ENGINE

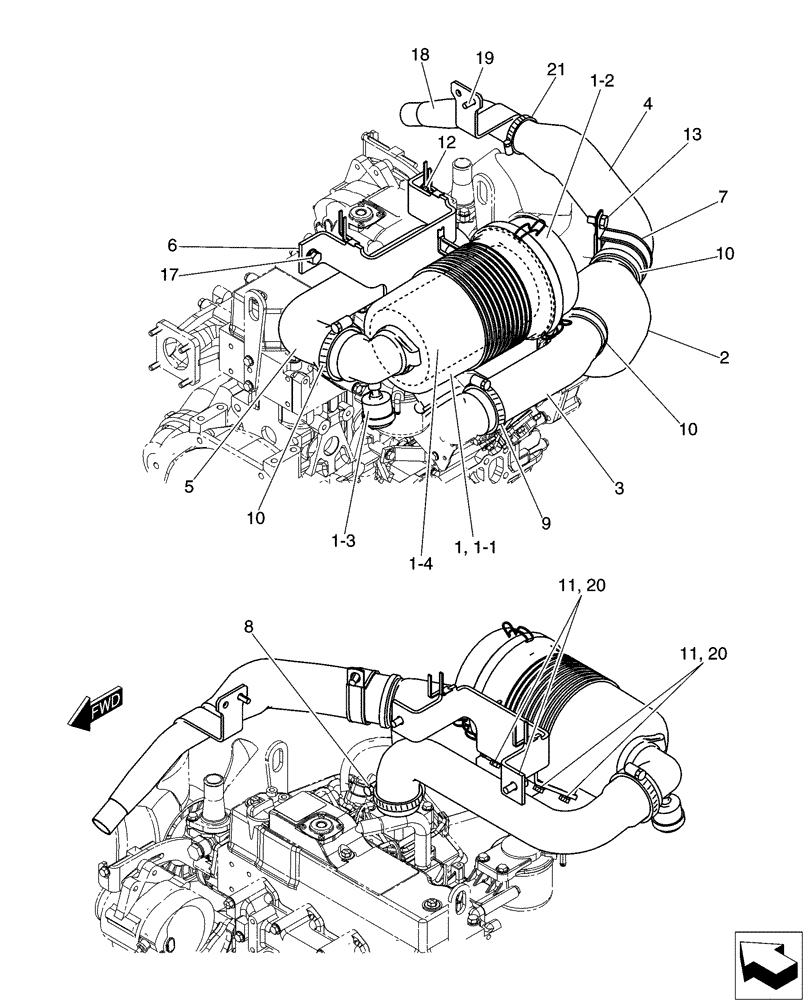

Схема запчастей Case CX50B - (01-013) - CLEANER ASSY, AIR, CAB (10) - ENGINE
12
1-4
21
13
6
1-3
8
11
11
20
5
20
19
9
17
1-1
1
10
10
18
10
3
1-2
7
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH11P00017F1

AIR CLEANER

(Cab)

1шт.

1

PH11P00014F1

AIR CLEANER

1шт.

1-1

PH11P00014S001

BODY

Assy, Includes Elbows

1шт.

1-2

PH11P00011S002

COVER ASSY

1шт.

1-3

PW11P00010S004

INDICATOR

1шт.

1-4

PH11P00011S005

AIR FILTER

Air Cleaner, Outer

1шт.

2

PH98H01001P1

MUFFLER

1шт.

3

PH11P01033P1

HOSE

Air

1шт.

4

PH11P01034P1

HOSE

Air

1шт.

5

PH11P01035P1

HOSE

Air

1шт.

6

PH11P01038P2

BRACKET

1шт.

7

LV05P01133P2

HOSE CLIP

1шт.

8

ZC16X05800

CLIP

1шт.

9

ZC16X06700

CLIP,58mm - 76mm

1шт.

10

ZC16X07000

CLIP

3шт.

11

ZM12C08020

BOLT

Sems

4шт.

12

ZM22C10025

BOLT

Sems

1шт.

13

ZM73C10020

BOLT,M10x20mm - Course Thread

Sems

1шт.

17

ZM22C10030

BOLT

Sems

1шт.

18

PH11P01045P1

TUBE

Intake, Air

1шт.

19

ZM73C08025

BOLT,M8x25mm - Course Thread

Sems

2шт.

20

ZW16H08000

WASHER

4шт.

21

ZC16X05100

CLIP

1шт.
