(01-056[06]) - CAB INSTAL

Запчасти Case CX50B (01-056[06]) - CAB INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS

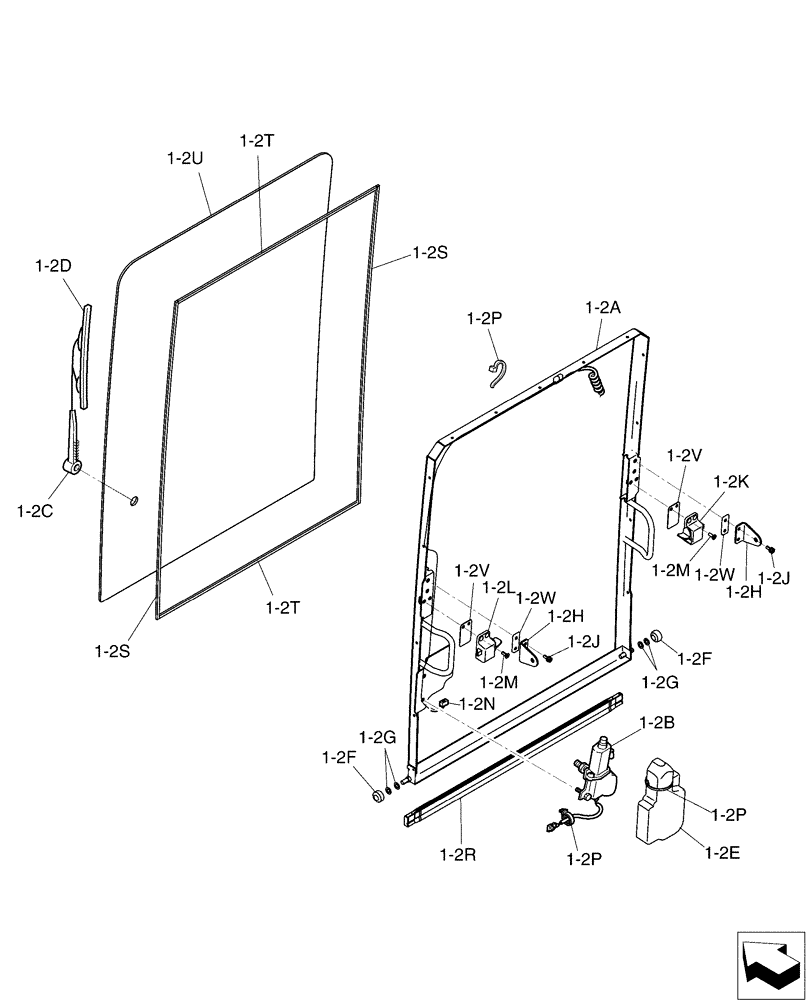

Схема запчастей Case CX50B - (01-056[06]) - CAB INSTAL (90) - PLATFORM, CAB, BODYWORK AND DECALS
1-2c
1-2w
1-2k
1-2h
1-2v
1-2w
1-2t
1-2f
1-2r
1-2g
1-2d
1-2u
1-2j
1-2h
1-2l
1-2e
1-2v
1-2b
1-2a
1-2f
1-2s
1-2j
1-2g
1-2p
1-2m
1-2p
1-2n
1-2s
1-2t
1-2m
1-2p
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-2a

PW50C01082P1

WINDOW FRAME

Frame Assy.

1шт.

1-2b

PM76S00001F1

WIPER MOTOR

MOTOR, WIPER

1шт.

1-2c

PM53C00001P1

WIPER ARM

1шт.

1-2d

YR53C01001P1

WIPER BLADE

1шт.

1-2e

YT02C01125P1

COVER

1шт.

1-2f

YT50C01024P1

ROLLER

2шт.

1-2g

PM50C01052P1

SHIM,1.0mm Thk

(1.0)

4шт.

1-2h

PW50C01008P1

BRACKET

2шт.

1-2j

ZM66C06016

BOLT

Sems

4шт.

1-2k

PW50C01046P1

LOCK

1шт.

1-2l

PW50C01047P1

LOCK

1шт.

1-2m

ZS68C06016

SCREW

Cap

4шт.

1-2n

YT02C01106P1

HARNESS

1шт.

1-2p

PY01P01043D2

CABLE TIE,4.60mm W x 202mm L

10шт.

1-2r

PW50C01026P1

RUBBER SEAL

1шт.

1-2s

PW50C01027P1

SEAL, GLASS

2шт.

1-2t

PW50C01028P1

SEAL, GLASS

2шт.

1-2u

PW50C01021P1

GLASS

1шт.

1-2v

PW50C01079P1

SHIM,1.0mm Thk

(1.0)

2шт.

1-2w

PW50C01081P1

SHIM,1.0mm Thk

(1.0)

2шт.
