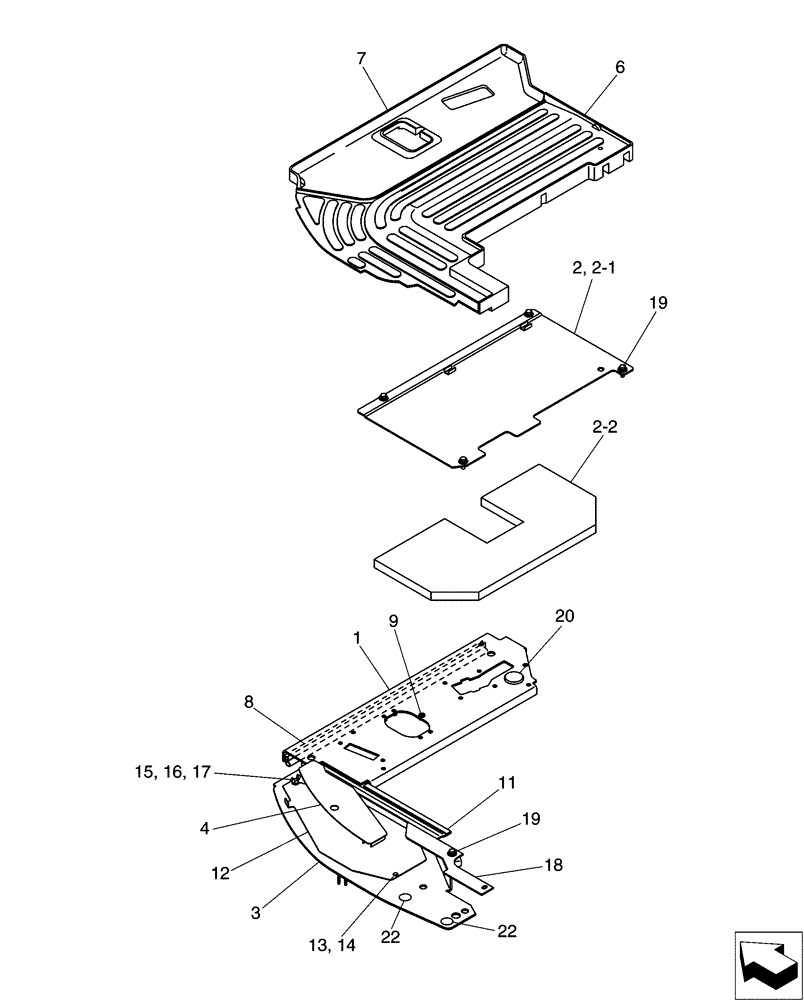

Запчасти Case CX50B (01-055) - PLATE GROUP, FLOOR, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

PH03M00094F1

Floor, (Cab)

1шт.

1

PW03M01535P2

PLATE

1шт.

2

PH03M01479F1

COVER

1шт.

2-1

PW03M01592P1

COVER

1шт.

2-2

PH03M01478P1

FOAM INSULATION

1шт.

3

PW03M01860P1

BRACKET

1шт.

4

PH03M01458P2

COVER

1шт.

6

PW26M00014P1

FLOOR MAT

1шт.

7

PM26M00014P1

FLOOR MAT

Floor

1шт.

8

PH21C01136DF

WEATHERSTRIP

1шт.

9

YN03M01159P1

GROMMET

1шт.

11

PW03M01545P1

RUBBER

1шт.

12

PW03M01830P1

COVER

1шт.

13

PW11M01071P1

PIN,8mm OD x 19mm L

1шт.

14

2419R9D2

COTTER PIN

1шт.

15

2420R585D23

BOLT,Wing, M8 x 20mm

Wing

1шт.

16

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

1шт.

17

ZW26X08000

LOCK WASHER

Lock

1шт.

18

PW03M01831P1

COVER

1шт.

19

PM21C01202P1

BOLT

Sems

5шт.

20

PM03M01357P1

PLUG

1шт.

22

YT02C01567D2

PLATE

2шт.
