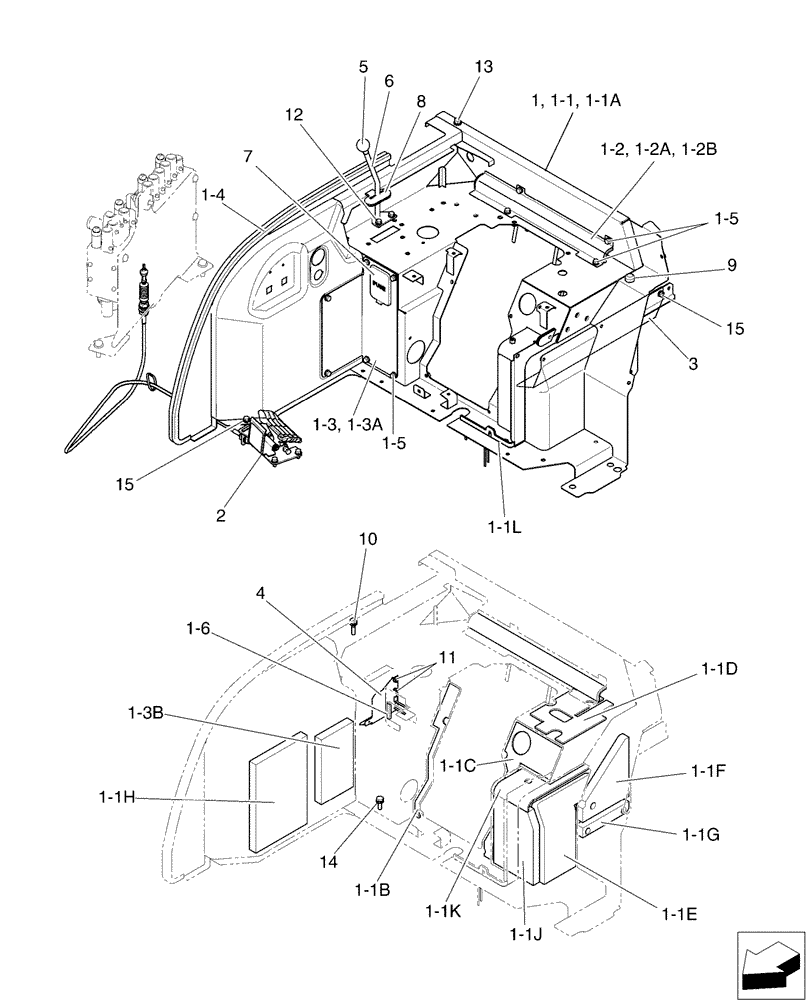

Запчасти Case CX50B (01-037[01]) - CONTROLS, OPERATORS, CAB (90) - PLATFORM, CAB, BODYWORK AND DECALS

1

PH10M00006F1

Control

1шт.

1-1

PH10M01136F1

STAND

1шт.

1-1a

PH10M01132P2

STAND

1шт.

1-1b

PW10M01202P1

FOAM INSULATION

1шт.

1-1c

PW10M01103P1

FOAM INSULATION

1шт.

1-1d

PH10M01101P1

FOAM INSULATION

1шт.

1-1e

PH10M01082P1

FOAM INSULATION

1шт.

1-1f

PH10M01083P1

FOAM INSULATION

1шт.

1-1g

PH10M01084P1

FOAM INSULATION

1шт.

1-1h

PW10M01203P1

FOAM INSULATION

1шт.

1-1j

PH10M01085P1

FOAM INSULATION

1шт.

1-1k

PW10M01181P1

FOAM INSULATION

1шт.

1-1l

PW10M01279P1

RUBBER

1шт.

1-2

PH03M01468F1

COVER ASSY

1шт.

1-2a

PH03M01467P1

COVER

1шт.

1-2b

PH03M01472P1

RUBBER

1шт.

1-3

PW03M01586F1

COVER ASSY

1шт.

1-3a

PH03M01432P2

COVER

1шт.

1-3b

PW10M01177P1

FOAM INSULATION

1шт.

1-4

YJ21C01080DF

WEATHERSTRIP

1шт.

1-5

PA03M01093D2

BOLT

Sems

10шт.

1-6

PM22C01020DR

TRIM PANEL

1шт.

2

PH55M00005F1

1шт.

3

PH10M01067P1

COVER

1шт.

4

PH03M01435P1

COVER

1шт.

5

PV03M01043P1

HANDLE GRIP

1шт.

6

PW03M01624P1

LEVER

1шт.

7

PW03M01543P1

GROMMET

1шт.

8

PW03M01972P1

GROMMET

1шт.

9

PW03M01557P1

CAP

1шт.

10

ZM22C10040

BOLT

Sems

1шт.

11

ZM61C06012

BOLT

Sems

2шт.

12

ZM22C08016

BOLT

Sems

2шт.

13

PM06C01045D3

BOLT

Sems

1шт.

15

ZM22C08020

BOLT

Sems

4шт.
