Запчасти Case CX50B (01-036[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS

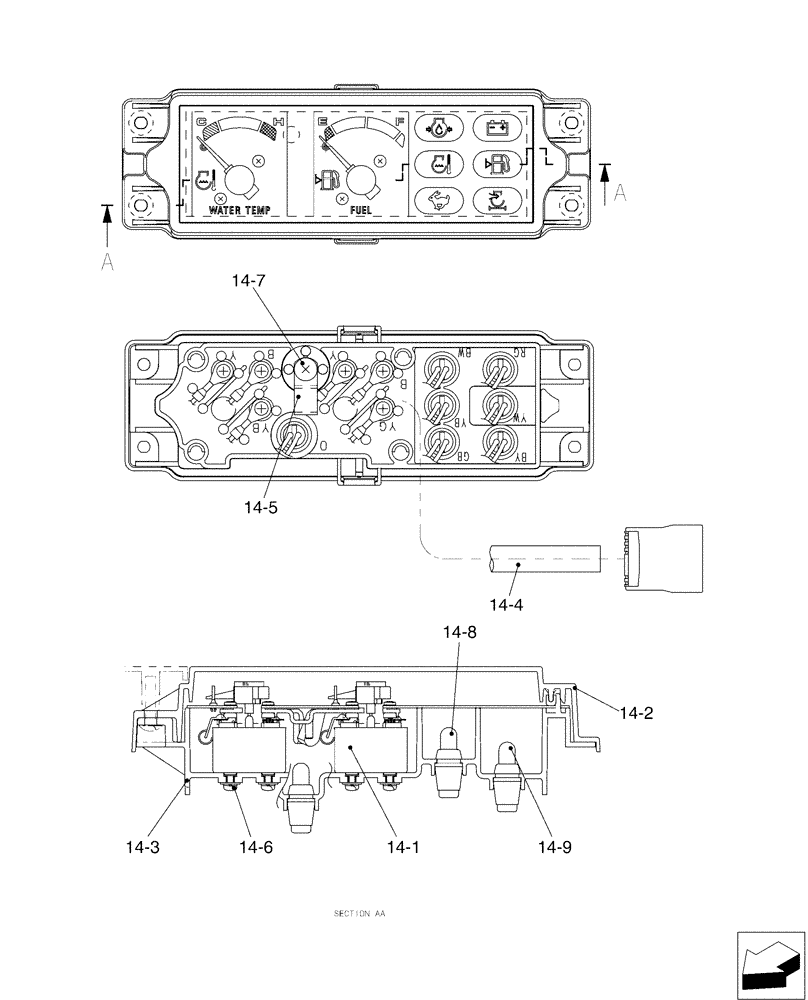

![Схема запчастей Case CX50B - (01-036[03]) - CONTROLS, OPERATORS (90) - PLATFORM, CAB, BODYWORK AND DECALS](https://partsell.ru/storage/images/casece/875570.png)
14-6
14-2
14-9
14-1
14-4
14-3
14-7
14-8
14-5
№
Артикул
Название
Примечание
Количество
14-1
PH59S00005S001
GAUGE ASSY.
1шт.
14-2
PH59S00005S002
GLASS
1шт.
14-3
PH59S00005S003
CASE
1шт.
14-4
PH59S00005S004
HARNESS
1шт.
14-5
PH59S00005S005
CLIP
1шт.
14-6
PH59S00005S006
SCREW
Machine
6шт.
14-7
PH59S00005S007
SCREW
Machine
1шт.
14-8
PH59S00005S008
LAMP
6шт.
14-9
PH59S00005S009
LAMP
1шт.
Выбрано товаров: 9
