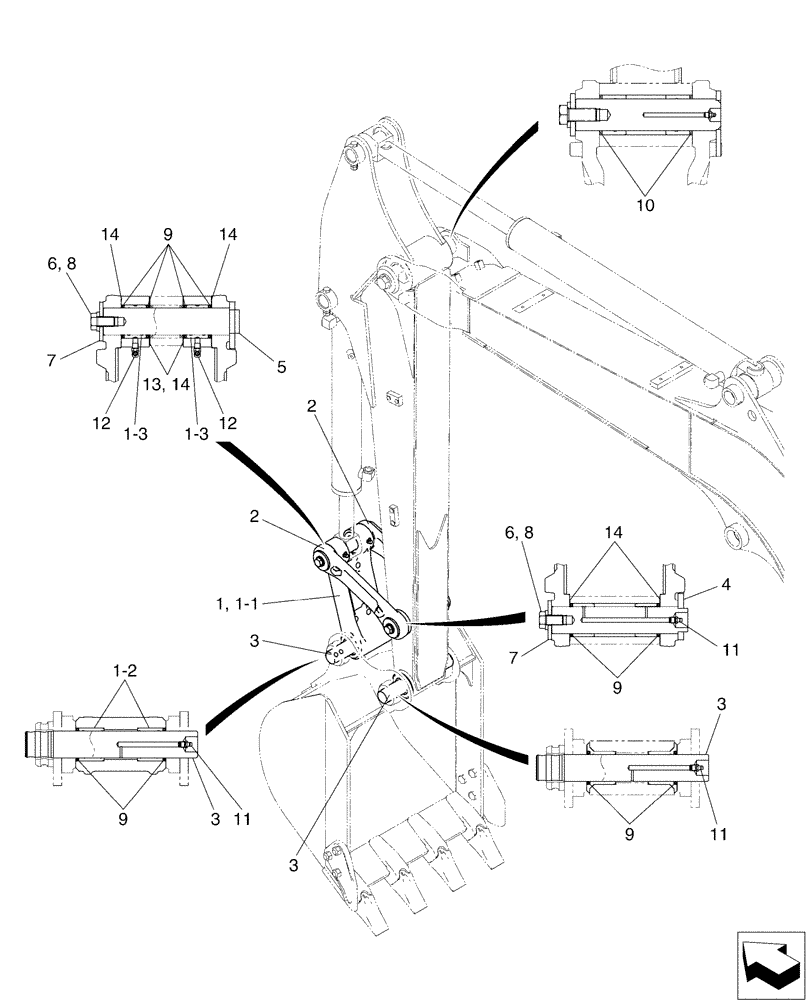

Запчасти Case CX50B (03-014) - ARM GROUP (84) - BOOMS, DIPPERS & BUCKETS

PY12B00073F1

1шт.

1

PH12B01148F1

LINK CONROD

Bucket

1шт.

1-1

PH12B01149P1

LINK CONROD

1шт.

1-2

PH12B01067P1

BUSHING,45mm ID x 55mm OD x 42mm L

2шт.

1-3

PY12B01163P1

BUSHING,45mm ID x 55mm OD x 36.5mm L

2шт.

2

PH12B01101P2

LINK

2шт.

3

PH12B01114P1

PIN,45mm OD x 287.5mm L

See Bucket Install for retaining pins

2шт.

4

PY12B01158P1

PIN,45mm OD x 210.5mm L

1шт.

5

PY12B01159P1

PIN,45mm OD x 219.5mm L

1шт.

6

ZS18C16030

SCREW,Hex, M16 x 30mm

Cap

2шт.

7

PW12B01242P1

WASHER

2шт.

8

ZW16H16000

WASHER

2шт.

9

2445R138D20

SEAL,45mm ID x 55mm OD x 4mm Thk

Dust

10шт.

10

2445R138D3

SEAL,60mm ID x 75mm OD x 4mm Thk

Dust

2шт.

11

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

3шт.

12

ZG91U02000

LUBE NIPPLE

2шт.

13

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

14

YJ12B01097P1

SHIM,47mm ID x 70mm OD x 0.5mm Thk

6шт.
