(03-012) - LIGHT INSTAL, BOOM

Запчасти Case CX50B (03-012) - LIGHT INSTAL, BOOM (55) - ELECTRICAL SYSTEMS

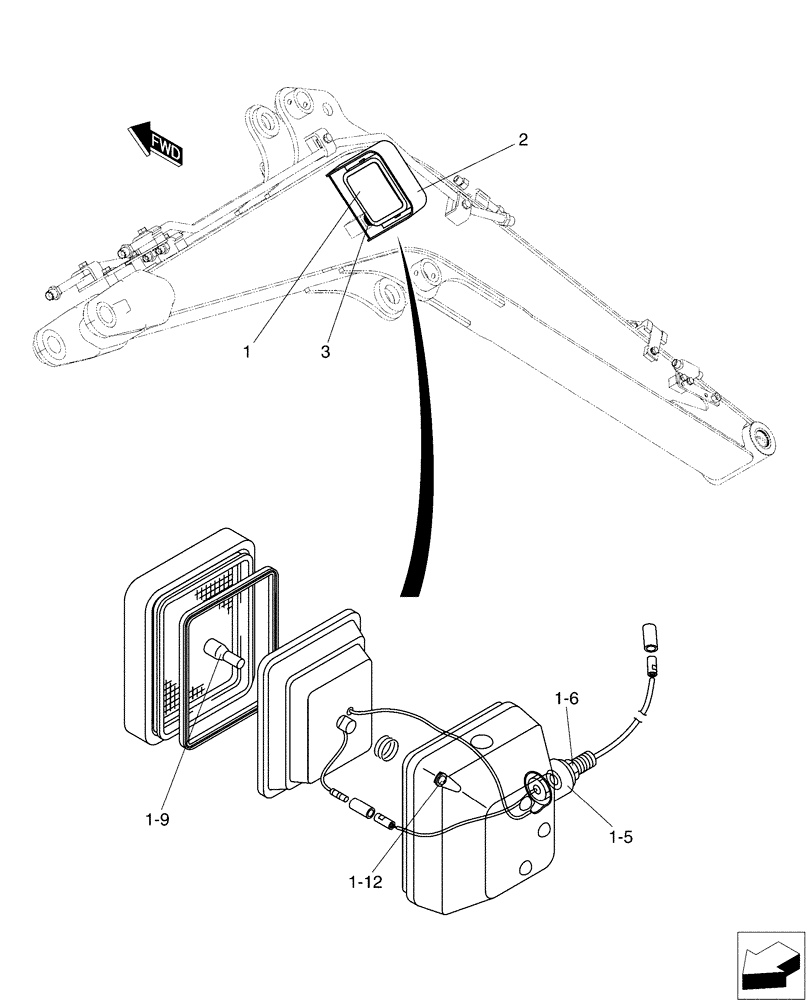

Схема запчастей Case CX50B - (03-012) - LIGHT INSTAL, BOOM (55) - ELECTRICAL SYSTEMS
3
2
1-5
1
1-6
1-12
1-9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PW80E00011F1

Boom

1шт.

1

PM80S00008F1

LIGHT

1шт.

1-5

PM80S00007S006

COLLAR

1шт.

1-6

PM80S00005S007

NUT

1шт.

1-9

PM80S00005S010

BULB,12V, 55W

1шт.

1-12

YN80S00010S009

SCREW

Machine

4шт.

2

PW80E01014P2

COVER

1шт.

3

ZM73C12020

BOLT,M12x20mm - Course Thread

Sems

1шт.
