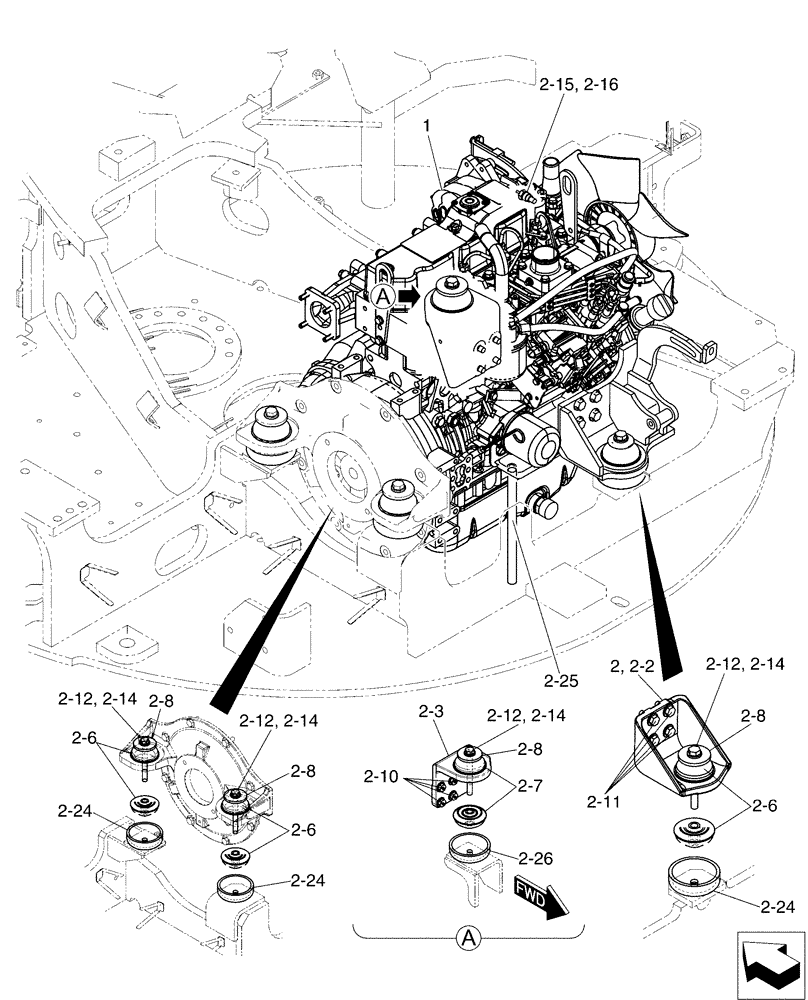

Запчасти Case CX50B (01-008) - ENGINE INSTAL, COOLER (10) - ENGINE
2-8
2
2-14
2-14
2-25
2-24
2-14
2-8
2-7
2-16
2-12
2-12
2-6
2-24
2-8
2-3
2-24
2-12
2-12
2-14
2-15
2-6
2-2
2-10
2-8
2-11
2-6
2-26
№
Артикул
Название
Примечание
Количество
PY02P00022F1
(Cooler)
1шт.
1
PH02P00015F2
ENGINE
1шт.
2
PY02P00023F1
1шт.
2-2
PH02P01049P1
BRACKET
1шт.
2-3
PH02P01043P1
BRACKET
1шт.
2-6
PW02P01054D1
RUBBER MOUNTING
6шт.
2-7
PH02P01048D1
RUBBER MOUNTING
2шт.
2-8
PW01P01022P1
WASHER
4шт.
2-10
ZM73C10025
BOLT,M10x25mm - Course Thread
Sems
4шт.
2-11
ZS18C10030
SCREW,Hex, M10 x 30mm
Cap
4шт.
2-12
ZS18C12120
SCREW,Hex, M12 x 120mm
Cap
4шт.
2-14
ZW16H12000
WASHER
4шт.
2-15
PA24S00003P1
SENSOR,50-120 Degree C
(Used for Engine Temp Gauge)
1шт.
2-16
PA13E01027P1
PACKING
1шт.
2-24
PW02P01041P1
COVER
3шт.
2-25
PW02P01047D1
HOSE,12mm ID x 250mm L
1шт.
2-26
PH02P01060P1
COVER
1шт.
Выбрано товаров: 17
