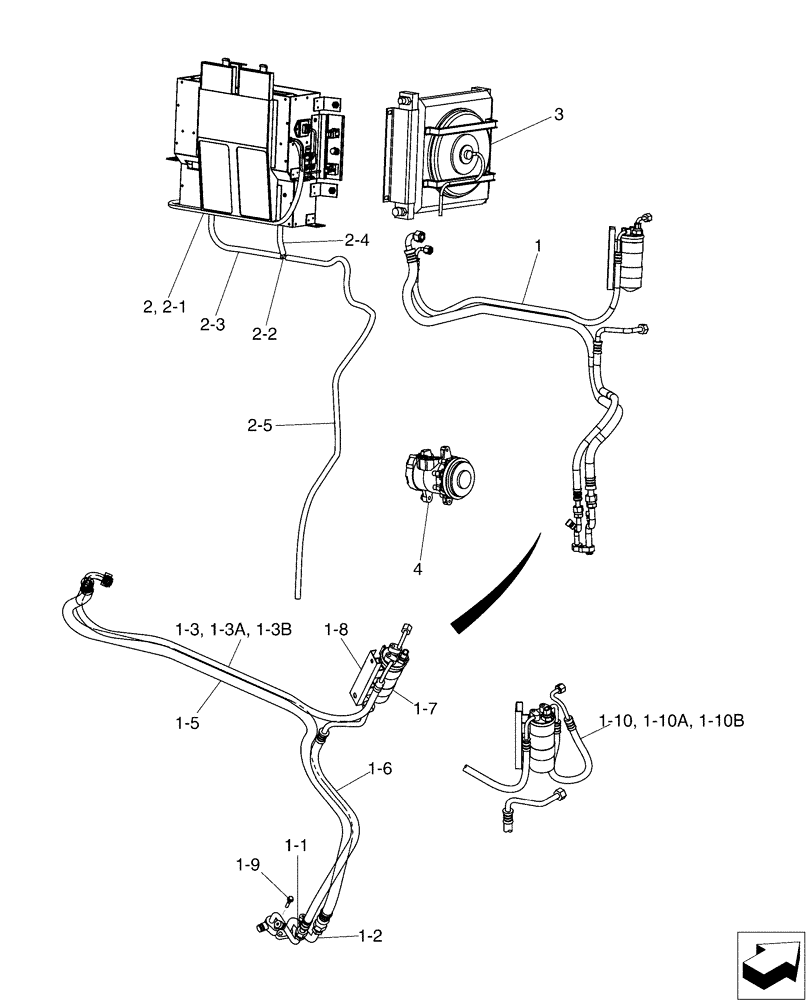

Запчасти Case CX50B (01-073[01]) - COOLER ASSY (50) - CAB CLIMATE CONTROL

1

PH96V00004F2

SET OF PARTS

Dryer Assy., Air

1шт.

1-1

PH20M01138F1

TUBE ASSY.

1шт.

1-2

PH20M01120F1

TUBE ASSY.

1шт.

1-3

PH20M01118F1

HOSE ASSY.

1шт.

1-3a

PH20M01118S001

1шт.

1-3b

2445Z1604D6

O-RING

2шт.

1-5

PH20M01117F1

HOSE ASSY.

1шт.

1-6

PH20M01116F1

HOSE ASSY.

1шт.

1-7

PW20M01071F1

RECEIVER-DRYER,Air Conditioner

1шт.

1-8

PW20M01072P1

BRACKET

1шт.

1-9

PH20M01139P1

CAPSCREW

1шт.

1-10

PW20M01241F1

HOSE ASSY.

1шт.

1-10a

PW20M01241S001

1шт.

1-10b

2445Z1604D6

O-RING

2шт.

2

PH20M00016F1

COOLER

1шт.

2-1

PH20M00019F1

COOLER

1шт.

2-2

YR20M01136P1

TEE

1шт.

2-3

PH20M01167P1

HOSE

1шт.

2-4

PH20M01115D6

HOSE

1шт.

2-5

PH20M01166P1

HOSE

1шт.

3

PH20M01108F1

CONDENSER

1шт.

3-1

PH20M01108S009

ELECTRIC MOTOR

Not Illustrated – Condenser Fan

1шт.

4

PH91V00004F1

AIRCOND. COMPRESSOR

1шт.
