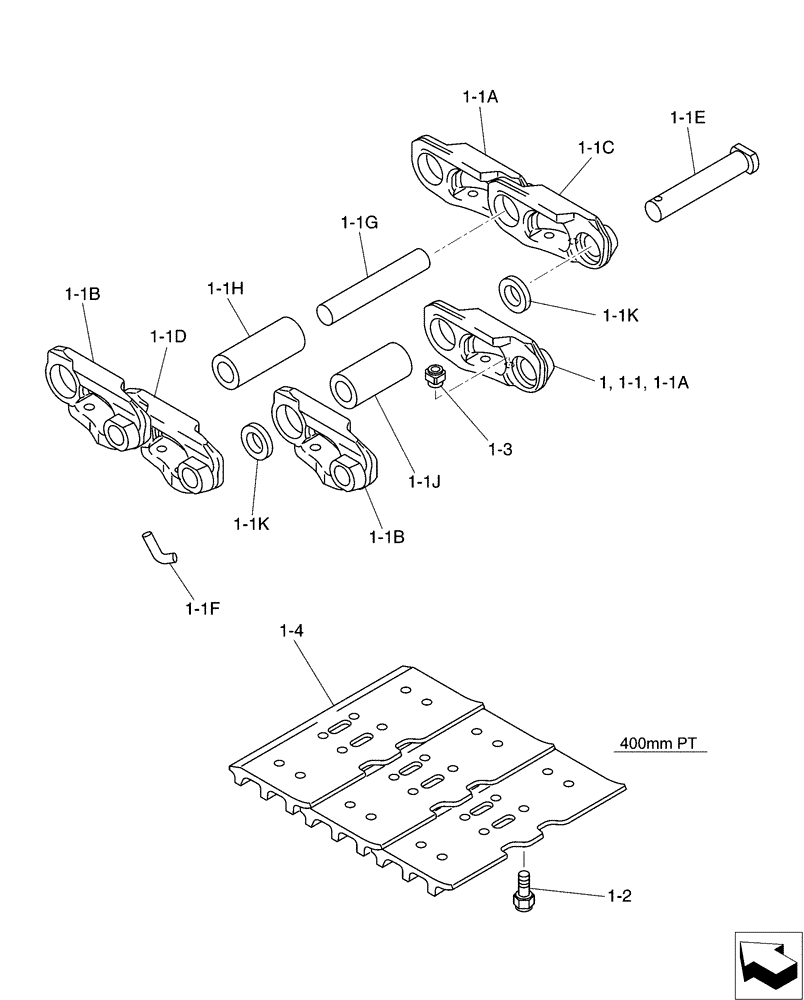

Запчасти Case CX50B (02-010[02]) - STEEL TRACK (48) - TRACKS & TRACK SUSPENSION

1

PY60D00003F1

SHOE (ASSY)

, Serial Range: PJ06-09807-PJ06-10216

2шт.

Shoe Install PY60D00007F1

1шт.

1-1

PY62D00002F1

TRACK LINK

Assy.

1шт.

1-1a

PY62D00003P1

TRACK LINK

37шт.

1-1b

PY62D00004P1

TRACK LINK

37шт.

1-1c

PY62D01008P1

LINK

Master

1шт.

1-1d

PY62D01009P1

LINK

Master

1шт.

1-1e

PY62D01010P1

PIN,22.16mm OD x 120mm L

1шт.

1-1f

2419T6404

PIN,6mm OD

1шт.

1-1g

PY62D01011P1

PIN,22.3mm OD x 120.2mm L

37шт.

1-1h

PY62D01012P1

BUSHING,22.5mm ID x 35mm OD x 73.5mm L

37шт.

1-1j

PY62D01013P1

BUSHING,22.5mm ID x 35mm OD x 63mm L

1шт.

1-1k

PY62D01014P1

COLLAR

2шт.

1-2

PH60D01001P1

BOLT

152шт.

1-3

2420Z1345

NUT

152шт.

1-4

PY60D00002P1

SHOE

38шт.
