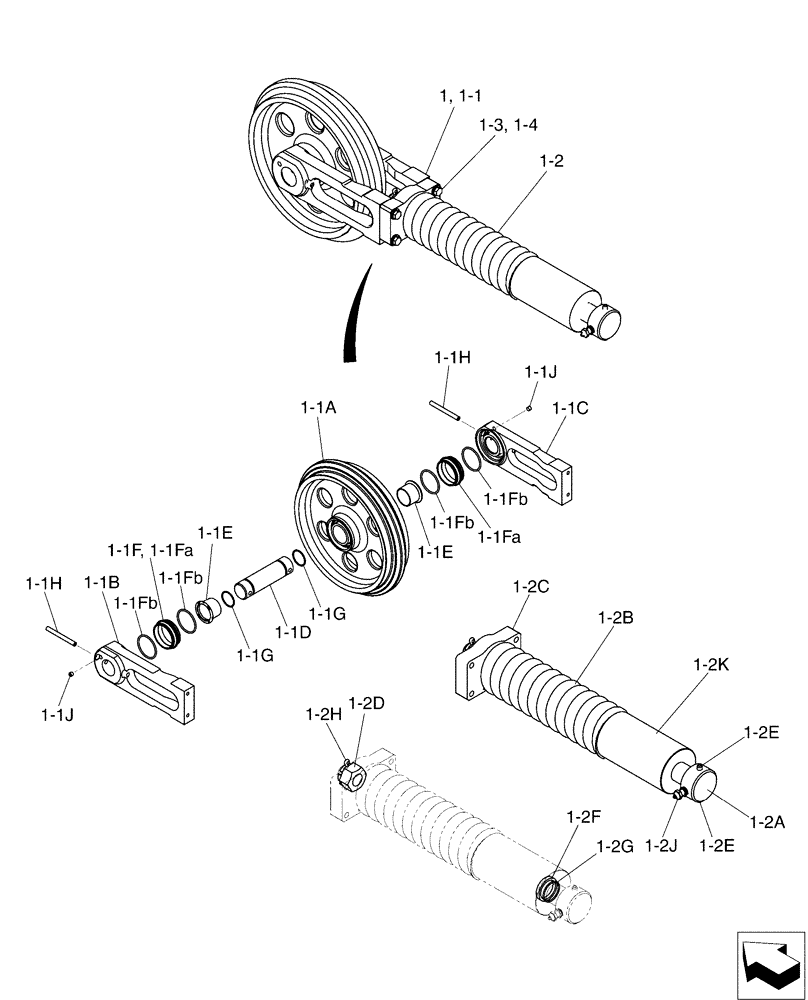

Запчасти Case CX50B (02-007) - IDLER ASSY, CRAWLER (48) - TRACKS & TRACK SUSPENSION

PY52D00022F1

Crawler

1шт.

1

PY52D00023F1

IDLER

Assy., Crawler

2шт.

1-1

PY52D00024F1

IDLER

1шт.

1-1a

PY52D00025P1

IDLER

1шт.

1-1b

PY52D01019P1

COLLAR

1шт.

1-1c

PY52D01020P1

COLLAR

1шт.

1-1d

PY52D01008P1

SHAFT

1шт.

1-1e

PY52D01009P1

BUSHING,45mm ID x 50mm OD x 37.5mm L

2шт.

1-1f

2445R439F1

SEAL,64mm ID x 85.2mm OD x 28mm Thk

Floating

2шт.

1-1fa

2445R439S1

SEAL

2шт.

1-1fb

2445R439S2

O-RING

4шт.

1-1g

ZD12G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

2шт.

1-1h

ZP26D10100

PIN

Spring

2шт.

1-1j

PV52D01007P1

PLUG

2шт.

1-2

PY54D00006F1

IDLER

1шт.

1-2a

PY01V01021P1

PISTON

1шт.

1-2b

PY54D01013P1

SPRING

1шт.

1-2c

PY54D01014P1

PLATE

1шт.

1-2d

PY54D01015P1

NUT

1шт.

1-2e

PX54D01014P1

PIN,10mm OD x 24mm L

2шт.

1-2f

PH54D01010P1

OIL SEAL

1шт.

1-2g

ZD12G04000

O-RING,39.40mm ID x 45.60mm OD x 3.10mm

1шт.

1-2h

ZP16D06056

PIN

Split

1шт.

1-2j

PX80B01026P1

LUBE NIPPLE

1шт.

1-2k

PY70V00005F1

CYLINDER

Grease

1шт.

1-3

ZS18C10050

SCREW,Hex, M10 x 50mm

Cap

4шт.

1-4

ZW16H10000

WASHER

4шт.
