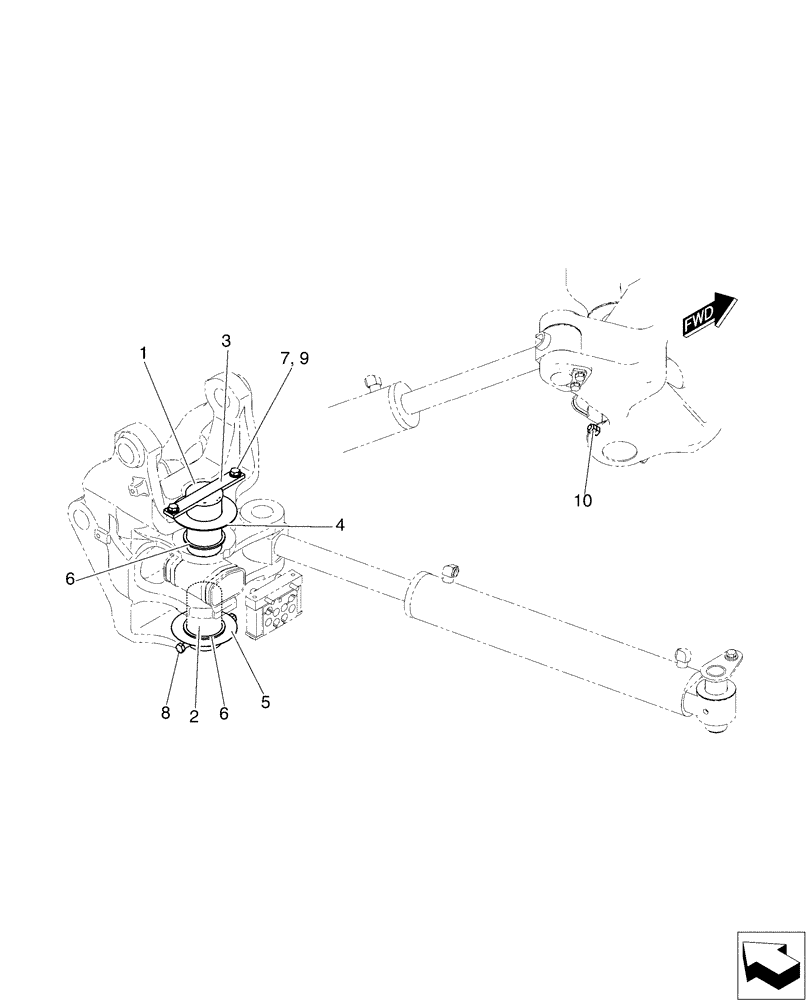

Запчасти Case CX50B (01-003) - BRACKET INSTAL,SWING (39) - FRAMES AND BALLASTING

PY02B00109F1

Swing

1шт.

1

PY02B01233P1

PIN,80mm OD x 154mm L

1шт.

2

PY02B01234P1

PIN,80mm OD x 140mm L

1шт.

3

PY02B01177P1

PLATE

1шт.

4

PH02B01051P1

WASHER

1шт.

5

PH02B01066P1

SHIM,0.5mm Thk

(0.5)

1шт.

6

2445R138D7

SEAL,80mm ID x 95mm OD x 4mm Thk

Dust

2шт.

7

ZS18C12025

SCREW,Hex, M12 x 25mm

Cap

2шт.

8

HS18C12170G1

SCREW

Cap

1шт.

9

ZW16H12000

WASHER

2шт.

10

ZN18C12010

NUT

2шт.
