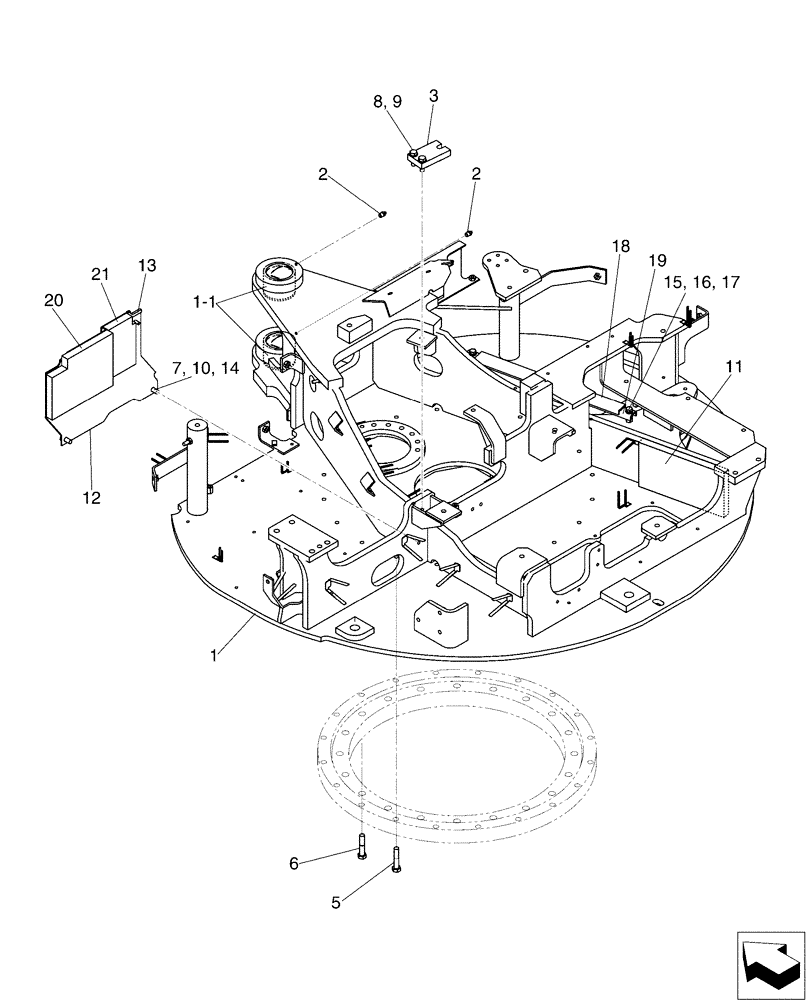

Запчасти Case CX50B (01-001) - FRAME GROUP, UPP (39) - FRAMES AND BALLASTING

PH52F00058F1

Upp

1шт.

1

PH52F00064P1

Upp

1шт.

1-1

PH52F01417P2

BUSHING

Bushing

2шт.

2

ZG91S02000

LUBE NIPPLE,1/8" NPT x 1/8" NPT

Grease

2шт.

3

PH52F01385P1

PLATE

1шт.

5

ZS18C14070

SCREW,Hex, M14 x 70mm

Cap

19шт.

6

HS18C14070G2

SCREW

Cap

1шт.

7

ZW26X12000

LOCK WASHER

2шт.

8

ZS18C12040

SCREW,Hex, M12 x 40mm

Cap

2шт.

9

ZW16H12000

WASHER

2шт.

10

ZW16P12000

WASHER

2шт.

11

PH52F01244P1

FOAM INSULATION

1шт.

12

PH52F01237P1

PLATE

1шт.

13

PM22C01020DA

SOFT TRIM

1шт.

14

ZS18C12025

SCREW,Hex, M12 x 25mm

Cap

2шт.

15

ZW26X10000

LOCK WASHER

2шт.

16

ZW16P10000

WASHER

2шт.

17

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

2шт.

18

YX32H01012D3

RUBBER

1шт.

19

PH52F01311P1

SUPPORT

1шт.

20

PH52F01324P1

FOAM INSULATION

1шт.

21

PH52F01325P1

FOAM INSULATION

1шт.
