(05-006[00]) - HYDRAULIC LINES, BOOM NIBBLER&BREAKER

Запчасти Case CX50B (05-006[00]) - HYDRAULIC LINES, BOOM NIBBLER&BREAKER (35) - HYDRAULIC SYSTEMS

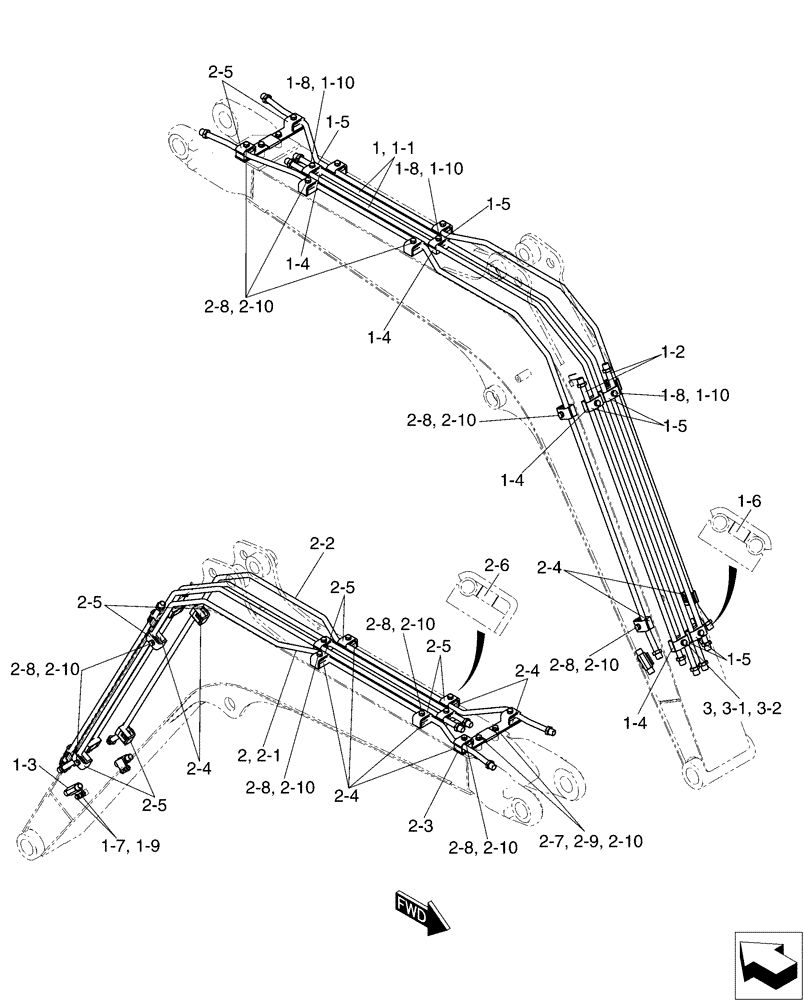

Схема запчастей Case CX50B - (05-006[00]) - HYDRAULIC LINES, BOOM NIBBLER&BREAKER (35) - HYDRAULIC SYSTEMS
2-6
1-10
1-5
2-3
2-5
1-7
1-4
3-1
1-10
1-4
2-8
1-9
1-10
1-5
1-4
2-7
1-6
2-2
1-5
2-10
2-5
2-5
1-8
1-3
2-5
1-1
1
2
2-10
2-8
2-1
2-8
2-9
2-10
2-8
1-8
2-10
1-2
1-4
2-4
2-8
2-8
2-8
3-2
1-5
2-10
2-4
2-10
2-4
2-4
2-5
3
1-8
2-10
2-10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

Hyd Lines, Boom 2.79m, (Nibbler and Breaker) PY42H00091F1

1шт.

1

NSS

NOT SOLD SEPARAT

1шт.

1-1

PY42H01206P1

HYD TUBE

2шт.

1-2

PY42H01168P1

HYD TUBE

2шт.

1-3

PH42H01186P1

TUBE

Connector

2шт.

1-4

PY42H01187P1

CLAMP

Clamp

6шт.

1-5

PV42H01112P1

CLAMP

Clamp

6шт.

1-6

PV42H01137P1

SPACER

Spacer

6шт.

1-7

ZS18C08016

SCREW,Hex, M8 x 16mm

Cap

4шт.

1-8

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

4шт.

1-9

ZW26X08000

LOCK WASHER

Lock

4шт.

110

ZW26X10000

LOCK WASHER

4шт.

2

NSS

NOT SOLD SEPARAT

1шт.

2-1

PY42H01207P1

HYD TUBE

1шт.

2-2

PY42H01208P1

HYD TUBE

1шт.

2-3

PY42H01191P1

BRACKET

1шт.

2-4

PV42H01133P2

CLAMP

10шт.

2-5

PV42H01134P1

CLAMP

10шт.

2-6

PV42H01137P1

SPACER

10шт.

2-7

ZS18C10025

SCREW,Hex, M10 x 25mm

Cap

2шт.

2-8

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

10шт.

2-9

ZW16X08000

WASHER,8mm ID x 17mm OD x 1.6mm Thk

2шт.

2-10

ZW26X10000

LOCK WASHER

12шт.

3

NSS

NOT SOLD SEPARAT

1шт.

3-1

ZS18C10035

SCREW,Hex, M10 x 35mm

Cap

2шт.

3-2

ZW26X10000

LOCK WASHER

2шт.
