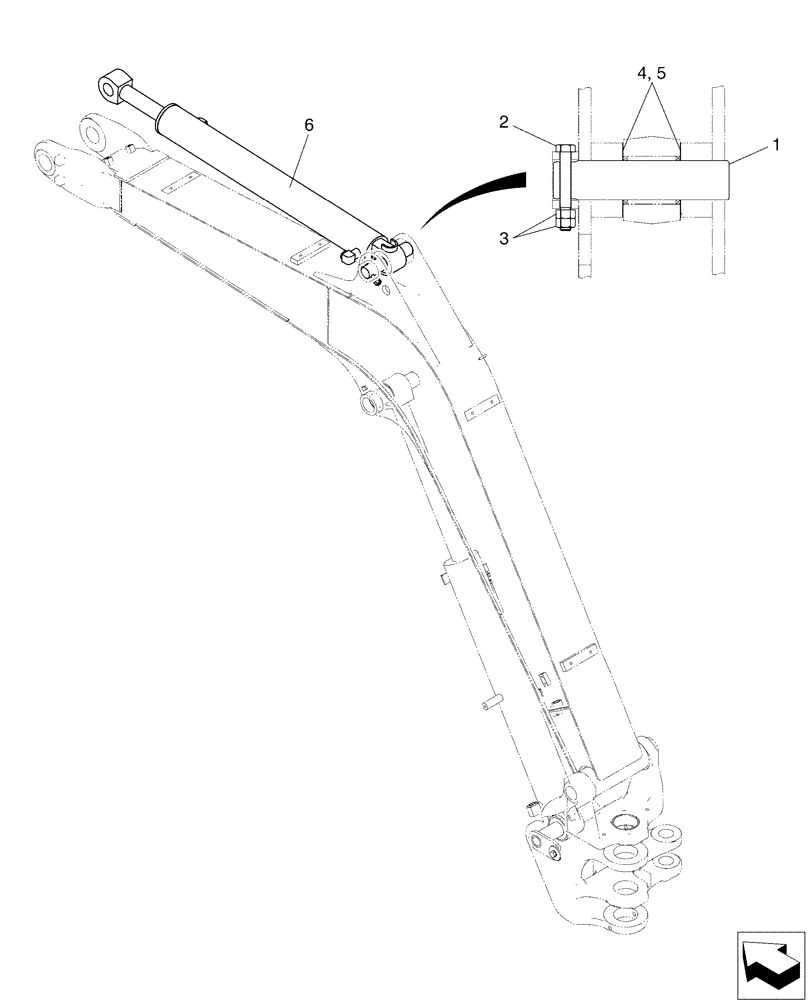

Запчасти Case CX50B (03-005[01]) - CYLINDER INSTAL, ARM (35) - HYDRAULIC SYSTEMS

1

PH02B01060P1

PIN

1шт.

2

HS18C12090G1

SCREW

Cap

1шт.

3

ZN18C12010

NUT

2шт.

4

YJ12B01043P1

SHIM,0.5mm Thk

2шт.

5

B16T0442D61

SHIM,47mm ID x 70mm OD x 0.9mm Thk

2шт.

6

PY01V00042F3

CYLINDER,Double Acting, 50mm Rod, 716mm Stroke

Assy., Arm

1шт.
