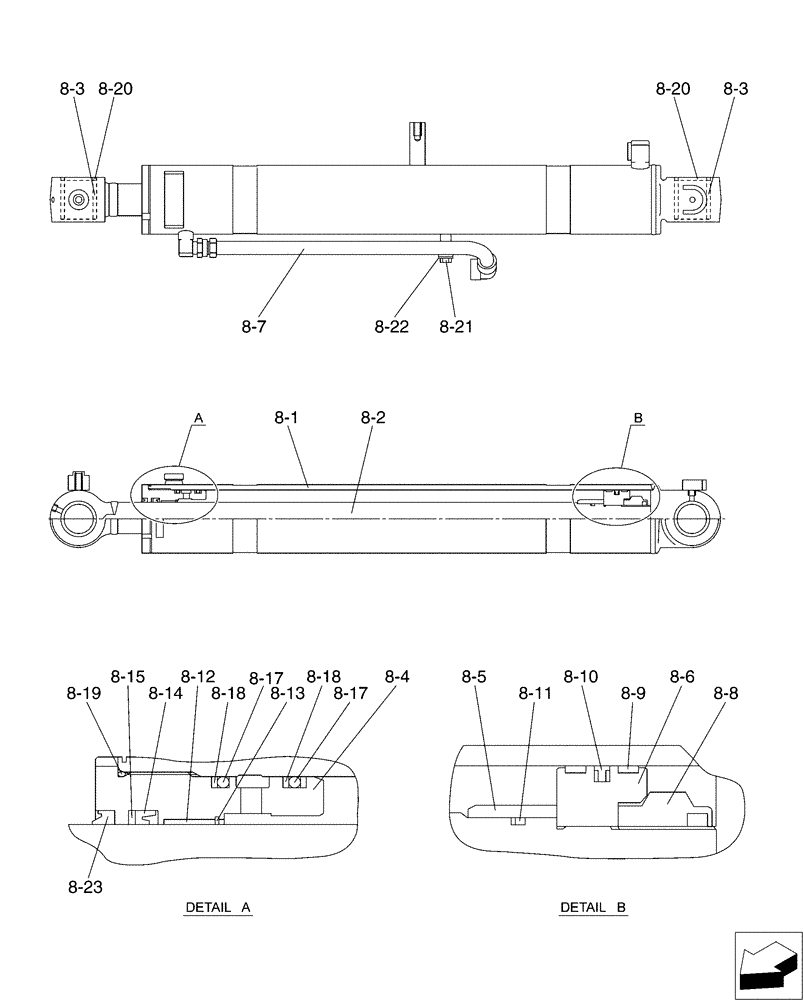

Запчасти Case CX50B (03-004[04]) - CYLINDER INSTALL, CANOPY Attachments

.

PY01V00043F2

CYLINDER

Assembly, Incl 8-1 - 8-23

1шт.

8-1

NSS

NOT SOLD SEPARAT

Tube, Cylinder, Serial Range: PJ06-09807-PJ06-10370

1шт.

8-2

NSS

NOT SOLD SEPARAT

Rod, Piston

1шт.

8-3

PH01V00027S003

BUSHING

2шт.

8-4

PY01V00037S004

CYLINDER HEAD

1шт.

8-5

PY01V00037S005

BUSHING

Ring

1шт.

8-6

PY01V00037S006

PISTON

1шт.

8-7

PY01V00037S008

TUBE

1шт.

8-8

PY01V00037S009

NUT

Lock

1шт.

8-9

PY01V00037S010

RING

Wear

2шт.

8-10

PY01V00037S011

RING

1шт.

8-11

PY01V00037S012

RING

Seal

1шт.

8-12

PY01V00037S013

BUSHING

1шт.

8-13

PY01V00037S014

RING

Retaining

1шт.

8-14

PY01V00037S015

CIRCLIP

Ring

1шт.

8-15

PY01V00037S016

RING

Back Up

1шт.

8-17

ZD12P09000

O-RING

2шт.

8-18

ZD85P09000

BACK-UP RING

3шт.

8-19

ZD11G10000

O-RING,99.40mm ID x 105.60mm OD x 3.10mm

1шт.

8-20

PH01V00027S021

RING

Seal, Dust

4шт.

8-21

ZS18C10016

SCREW,Hex, M10 x 16mm

Cap

1шт.

8-22

PH01V00027S023

WASHER

1шт.

8-23

PY01V00043S023

RING

1шт.

8-24

NSS

NOT SOLD SEPARAT

Tube, Cylinder, Start Serial: PJ06-10371

1шт.

PY01V00043R100

REPAIR KIT

Consists Of Ref: 8-1(1), 8-3(1), Serial Range: PJ06-09807-PJ06-10370

1шт.

PY01V00037R400

REPAIR KIT

Consists Of Ref: 8-2(1), 8-3(1)

1шт.

PY01V00037R300

REPAIR KIT

Consists Of Ref: 8-10(1), 8-14(1), 8-15(1), 8-16(1), 9-19(1), 8-9(2), 8-17(2), 8-18(3)

1шт.

PY01V00043R400

SEAL KIT

Consists Of Ref: 8-10(1), 8-14(1), 8-15(1), 8-19(1), 9-23(1), 8-9(2), 8-17(2), 8-18(3)

1шт.

PY01V00043R500

KIT

Consists Of Ref: 8-3(1), 8-24(1), Start Serial: PJ06-10371

1шт.
