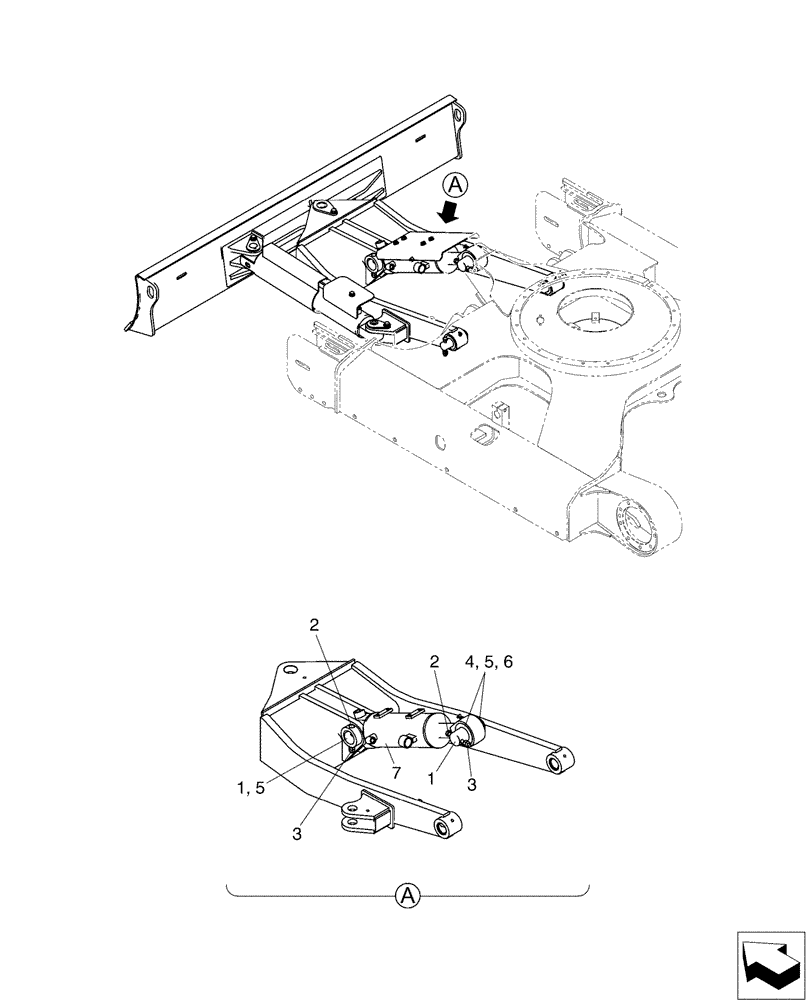

Запчасти Case CX50B (02-023[01]) - CYLINDER INSTAL, DOZER (35) - HYDRAULIC SYSTEMS

1

PY51B01107P1

PIN

2шт.

2

ZS18C12110

SCREW,Hex, M12 x 110mm

Cap

2шт.

3

ZN18C12010

NUT

4шт.

4

B16T0442D26

SHIM,90mm OD x 57mm ID x 1.2mm Thk

(1.2)

2шт.

5

B16T0442D21

SHIM,57mm ID x 90mm OD x 1.6mm Thk

(1.6)

2шт.

6

B16T0442D22

SHIM,90mm OD x 57mm ID x 2.3mm Thk

(2.3)

2шт.

7

PY01V00036F1

CYLINDER

Dozer

1шт.
