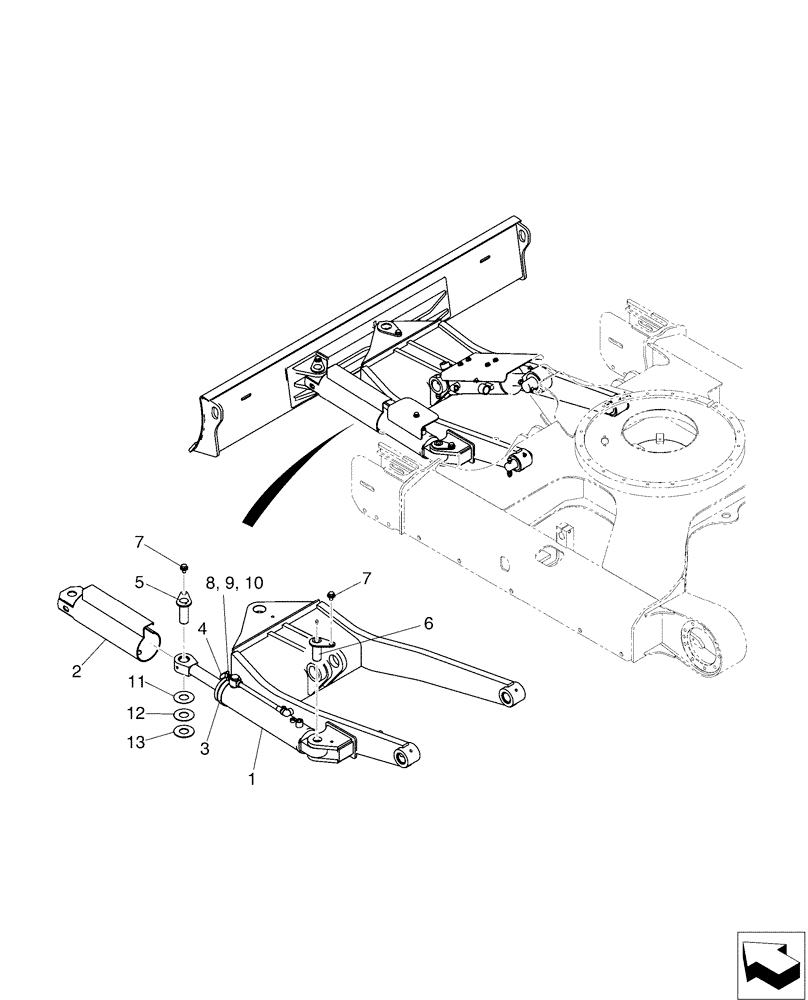

Запчасти Case CX50B (02-022[01]) - CYLINDER INSTAL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

1

PY01V00035F2

CYLINDER

1шт.

2

PH51B01056P1

COVER

1шт.

3

PH51B01062P1

PLATE

1шт.

4

PW51B01110P1

PLATE

1шт.

5

PY51B01034P2

PIN

1шт.

6

PW51B01107P1

PIN

1шт.

7

ZM32C12025

BOLT

Sems

2шт.

8

ZS18C08020

SCREW,Hex, M8 x 20mm

Cap

1шт.

9

ZW26X08000

LOCK WASHER

Lock

1шт.

10

ZW16P08000

WASHER

1шт.

11

PY51B01053P1

SHIM,1.6mm Thk

(1.6)

1шт.

12

PY51B01054P1

SHIM,2.3mm Thk

(2.3)

1шт.

13

PY51B01055P1

SHIM,3.2mm Thk

(3.2)

1шт.
