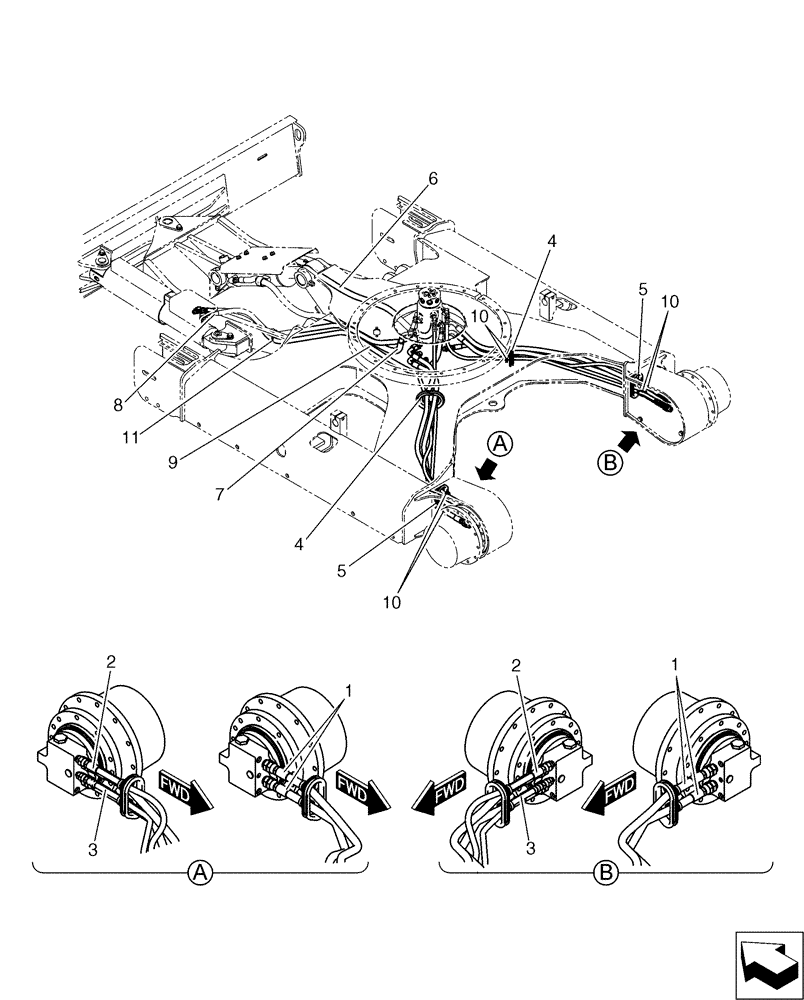

Запчасти Case CX50B (02-012) - HYD LINES, LOW, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

PY02H00014F1

Low, (Angle Dozer)

1шт.

1

HX35L08115DX

HOSE,12.7mm ID x 1150mm L

4шт.

2

HX23L06110DY

HOSE,9.5mm ID x 1100mm L

2шт.

3

HX23L04130DX

HOSE

2шт.

4

PY02H01113P1

GROMMET

2шт.

5

PH02H01136P1

GROMMET

2шт.

6

PY02H01065D5

HOSE

1шт.

7

PY02H01065D6

HOSE

1шт.

8

PH02H01052DC

HOSE

1шт.

9

PH02H01052DD

HOSE

1шт.

10

PY01P01043D8

CABLE TIE,102mm L

6шт.

11

PY01P01043D5

CABLE TIE,301mm L

1шт.
