/ / / / / / / / (02-005[02]) - JOINT ASSY, SWIVEL, ANGLE DOZER
Запчасти Case CX50B (02-005[02]) - JOINT ASSY, SWIVEL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

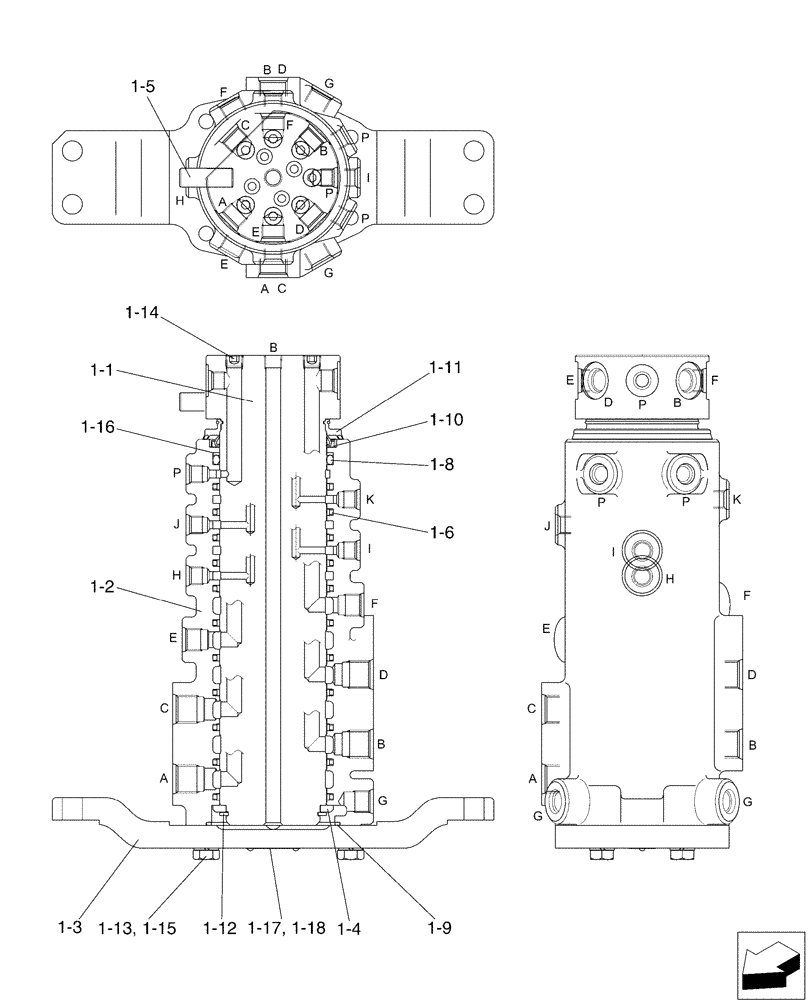

![Схема запчастей Case CX50B - (02-005[02]) - JOINT ASSY, SWIVEL, ANGLE DOZER (35) - HYDRAULIC SYSTEMS](https://partsell.ru/storage/images/casece/420171.png)
1-6
1-8
1-14
1-17
1-18
1-13
1-4
1-16
1-3
1-12
1-15
1-11
1-1
1-9
1-5
1-2
1-10
1-1
PY55V01001P1
1шт.
1-2
PY55V01003P1
1шт.
1-3
2418P23755
FLANGE
1шт.
1-4
2418T21983
SPACER
1шт.
1-5
2419T6551
PIN
1шт.
1-6
2445Z736
GASKET
11шт.
1-8
ZD11P08000
O-RING
1шт.
1-9
ZD11G09500
O-RING,94.40mm ID x 100.60mm OD x 3.10mm
1шт.
1-10
2445R62
SEAL
Dust
1шт.
1-11
2445R63
SEAL
Dust
1шт.
1-12
ZR16X07000
RING
Snap
1шт.
1-13
ZS13C10030
SCREW
Cap
4шт.
1-14
YN55V01090P1
PLUG
7шт.
1-15
ZW26X10000
LOCK WASHER
4шт.
1-16
ZD75P08000
BACK-UP RING
1шт.
1-17
2420Z1036D3
CLEVIS
2шт.
1-18
YN22T00194P1
TYPE PLATE
Name
1шт.
