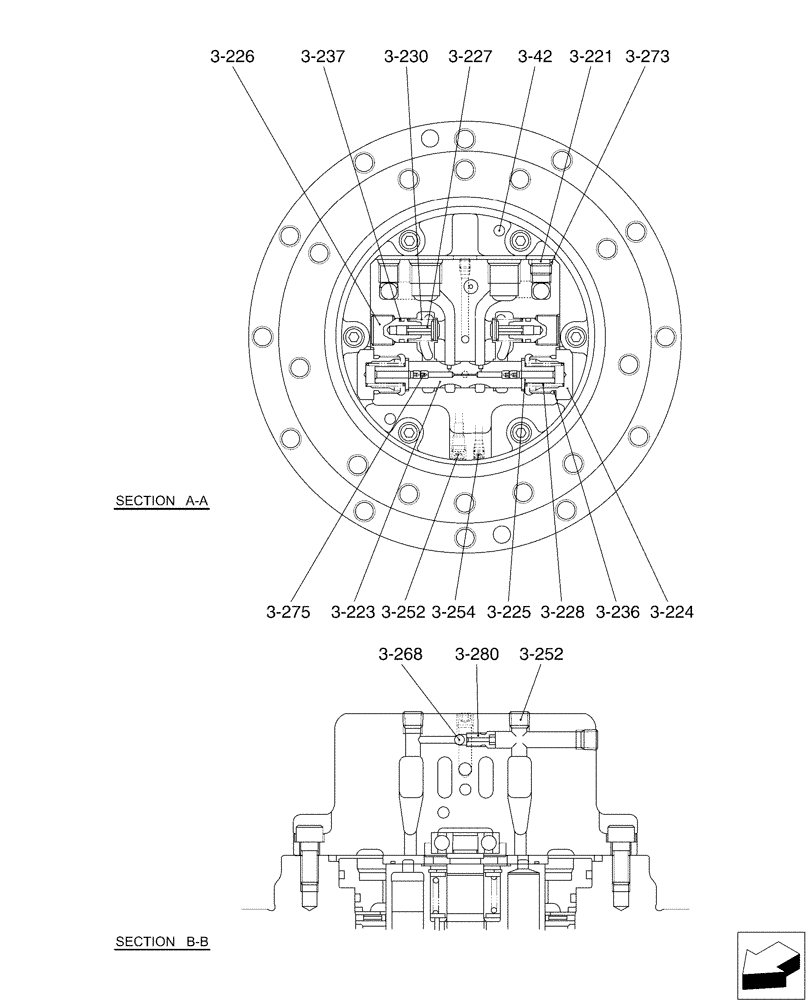

Запчасти Case CX50B (02-003[03]) - MOTOR INSTAL, PROPEL (35) - HYDRAULIC SYSTEMS

3-42

PY15V00006S142

PIN

2шт.

3-221

2441U995S192

PLUG

2шт.

3-224

PH15V00009S224

PLUG

2шт.

3-225

PH15V00009S225

SEAT

2шт.

3-226

2441U831S126

PLUG

2шт.

3-227

2441U831S127

VALVE

Check

2шт.

3-228

PH15V00009S228

SPRING

2шт.

3-230

2441U831S130

SPRING

2шт.

3-236

ZD12P02200

O-RING

2шт.

3-237

ZD12P01200

O-RING

2шт.

3-252

YX15V00003S146

PLUG

4шт.

3-254

PY15V00006S154

PLUG

6шт.

3-268

PH15V00009S268

BALL

1шт.

3-273

ZD12P01100

O-RING

2шт.

3-275

PH15V00009S275

ORIFICE

5шт.

3-280

PH15V00009S280

PLUG

1шт.

PH15V00012R390

REPAIR KIT

Consists Of Ref: 3-31 (2)

1шт.

PH15V00012R310

REPAIR KIT

Consists Of Ref: 3-104 (1), 3-105 (9), 3-106 (9)

1шт.

PH15V00012R320

REPAIR KIT

Consists Of Ref: 3-161 (1), 3-162 (1), 3-163 (1)

1шт.

PH15V00012R330

VALVE

Consists Of Ref: 3-201 (1), 3-223 (1), 3-263 (1), 3-264 (1), 3-266(1), 3-268 (1), 3-276 (1), 3-279 (1), 3-280 (1), 3-299 (1), 3-221 (2), 3-224 (2), 3-225 (2), 3-226(2), 3-227 (2), 3-228 (2), 3-230 (2), 3-236 (2), 3-237 (2), 3-273 (2), 3-252 (2), 3-275 (5)

1шт.

PH15V00009R340

REPAIR KIT

Consists Of Ref: 3-201 (1), 3-223 (1)

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Ref: 3-263 (1), 3-264 (1)

1шт.

PH15V00012R360

REPAIR KIT

Consists Of Ref: 3-35 (1), 3-44 (1), 3-132 (1), 3-135 (1), 3-139 (1), 3-31 (2), 3-43 (2), 3-237 (2), 3-236 (2), 3-272 (2) 3-37 (3)

1шт.
