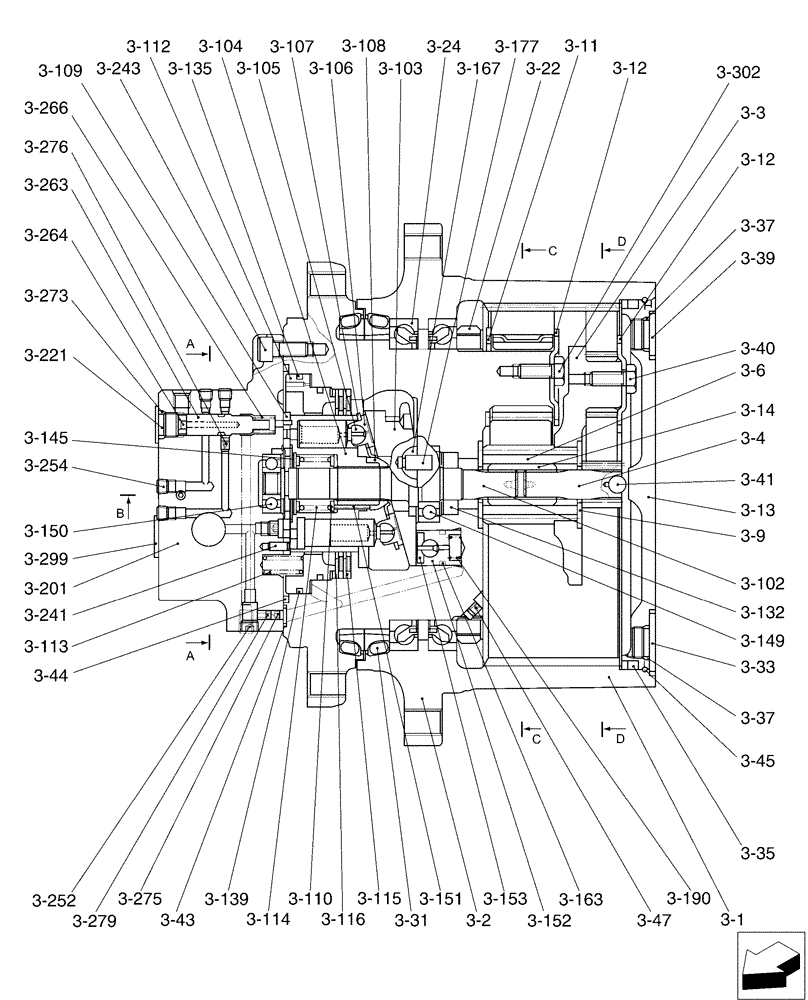

Запчасти Case CX50B (02-003[02]) - MOTOR INSTAL, PROPEL (35) - HYDRAULIC SYSTEMS

3-1

PH15V00012S001

HUB

1шт.

3-2

PH15V00012S002

SPINDLE

1шт.

3-3

PH15V00012S003

CARRIER

Holder

1шт.

3-4

PH15V00012S004

GEAR

Sun

1шт.

3-5

PH15V00012S005

GEAR

3шт.

3-6

PH15V00012S006

GEAR

Sun

1шт.

3-7

PH15V00012S007

GEAR

4шт.

3-9

PX15V00025S009

WASHER

2шт.

3-11

PH15V00012S011

WASHER

Thrust

4шт.

3-12

PX15V00025S012

WASHER

7шт.

3-13

PH15V00012S013

COVER

1шт.

3-14

PH15V00012S014

COUPLING

1шт.

3-22

PH15V00012S022

NUT

1шт.

3-24

PH15V00012S024

BALL BEARING

2шт.

3-27

PX15V00025S027

NEEDLE BEARING

3шт.

3-28

PH15V00012S028

NEEDLE BEARING

4шт.

3-29

PX15V00025S029

RING

3шт.

3-30

PH15V00012S030

RING

4шт.

3-31

NSS

NOT SOLD SEPARAT

Seal, Floating

2шт.

3-33

YT15V00008S033

PLUG

1шт.

3-35

ZD11G19500

O-RING,194.30mm ID x 205.70mm OD x 5.70mm

1шт.

3-37

ZD12P01400

O-RING

3шт.

3-39

YR15V00002S121

PLUG

2шт.

3-41

2441U815S26

BALL

1шт.

3-42

PY15V00006S142

PIN

2шт.

3-43

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

3-44

PH15V00009S030

O-RING

1шт.

3-45

PH15V00012S045

RING

1шт.

3-47

PX15V00025S047

SET SCREW

2шт.

3-102

PH15V00012S102

SHAFT

1шт.

3-103

PH15V00012S103

PLATE

1шт.

3-104

NSS

NOT SOLD SEPARAT

Block, Cylinder

1шт.

3-105

NSS

NOT SOLD SEPARAT

Piston

9шт.

3-106

NSS

NOT SOLD SEPARAT

Shoe

9шт.

3-107

2441U831S107

RETAINING PLATE

1шт.

3-108

2441U831S108

BALL

1шт.

3-109

PH15V00012S109

PLATE

1шт.

3-110

2441U831S110

WASHER

2шт.

3-112

PH15V00012S112

PISTON

1шт.

3-113

PH15V00009S113

SPRING

8шт.

3-114

YJ15V00002S114

SPRING

1шт.

3-115

PH15V00012S115

PLATE

2шт.

3-116

YJ15V00002S116

PLATE

3шт.

3-132

2441U831S132

OIL SEAL

1шт.

3-135

PY15V00005S135

O-RING

1шт.

3-139

PH15V00009S139

O-RING

1шт.

3-145

2441U831S145

RING

Retaining

1шт.

3-149

YJ15V00002S149

BALL BEARING

1шт.

3-150

2441U831S150

BALL BEARING

1шт.

3-151

PH15V00009S151

ROLLER

3шт.

3-152

NSS

NOT SOLD SEPARAT

Piston

1шт.

3-153

NSS

NOT SOLD SEPARAT

Shoe

1шт.

3-163

PH15V00012S163

SEAL

1шт.

3-167

PY15V00006S167

SPOOL

2шт.

3-177

PH15V00009S177

PIN

2шт.

3-190

PH15V00009S190

SPRING

1шт.

3-201

NSS

NOT SOLD SEPARAT

Flange

1шт.

3-221

2441U995S192

PLUG

2шт.

3-224

PH15V00009S224

PLUG

2шт.

3-225

PH15V00009S225

SEAT

2шт.

3-226

2441U831S126

PLUG

2шт.

3-227

2441U831S127

VALVE

Check

2шт.

3-228

PH15V00009S228

SPRING

2шт.

3-230

2441U831S130

SPRING

2шт.

3-236

ZD12P02200

O-RING

2шт.

3-237

ZD12P01200

O-RING

2шт.

3-241

2441U815S141

PIN

2шт.

3-243

ZS23C08020

SCREW,Hex Socket Head, M8 x 20mm

Cap

6шт.

3-252

YX15V00003S146

PLUG

4шт.

3-254

PY15V00006S154

PLUG

6шт.

3-263

NSS

NOT SOLD SEPARAT

Spool

1шт.

3-264

NSS

NOT SOLD SEPARAT

Stopper

1шт.

3-266

PH15V00009S401

SPRING

1шт.

3-268

PH15V00009S268

BALL

1шт.

3-273

ZD12P01100

O-RING

2шт.

3-275

PH15V00009S275

ORIFICE

5шт.

3-276

PH15V00009S276

ORIFICE

1шт.

3-279

YN15V00027S379

FILTER

1шт.

3-280

PH15V00009S280

PLUG

1шт.

3-299

2441U829S199

PLATE

Name

1шт.

3-302

YA15V00004S040

SCREW

7шт.

PH15V00012R390

REPAIR KIT

Consists Of Ref: 3-31 (2)

1шт.

PH15V00012R310

REPAIR KIT

Consists Of Ref: 3-104 (1), 3-105 (9), 3-106 (9)

1шт.

PH15V00012R320

REPAIR KIT

Consists Of Ref: 3-161 (1), 3-162 (1), 3-163 (1)

1шт.

PH15V00012R330

VALVE

Consists Of Ref: 3-201 (1), 3-223 (1), 3-263 (1), 3-264 (1), 3-266(1), 3-268 (1), 3-276 (1), 3-279 (1), 3-280 (1), 3-299 (1), 3-221 (2), 3-224 (2), 3-225 (2), 3-226(2), 3-227 (2), 3-228 (2), 3-230 (2), 3-236 (2), 3-237 (2), 3-273 (2), 3-252 (2), 3-275 (5)

1шт.

PH15V00009R340

REPAIR KIT

Consists Of Ref: 3-201 (1), 3-223 (1)

1шт.

PH15V00009R410

REPAIR KIT

Consists Of Ref: 3-263 (1), 3-264 (1)

1шт.

PH15V00012R360

REPAIR KIT

Consists Of Ref: 3-35 (1), 3-44 (1), 3-132 (1), 3-135 (1), 3-139 (1), 3-31 (2), 3-43 (2), 3-237 (2), 3-236 (2), 3-272 (2) 3-37 (3)

1шт.
