(01-053[03]) - CONTROL LINES, PROPEL, SWING

Запчасти Case CX50B (01-053[03]) - CONTROL LINES, PROPEL, SWING (35) - HYDRAULIC SYSTEMS

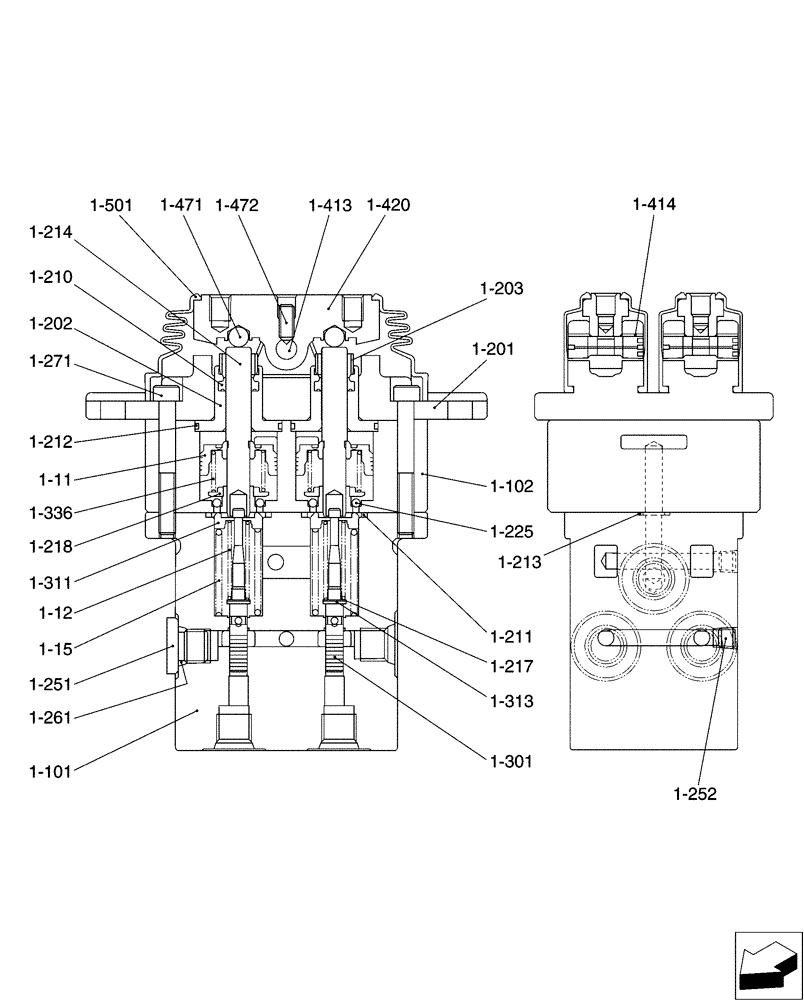

Схема запчастей Case CX50B - (01-053[03]) - CONTROL LINES, PROPEL, SWING (35) - HYDRAULIC SYSTEMS
1-336
1-12
1-11
1-225
1-201
1-203
1-413
1-210
1-414
1-261
1-213
1-212
1-471
1-211
1-271
1-252
1-101
1-501
1-218
1-313
1-311
1-251
1-420
1-202
1-301
1-472
1-102
1-214
1-15
1-217
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1-11

NSS

NOT SOLD SEPARAT

Piston

4шт.

1-12

PM30V00019S012

SPRING

4шт.

1-15

PM30V00019S015

SPRING

4шт.

1-101

NSS

NOT SOLD SEPARAT

Case

1шт.

1-102

NSS

NOT SOLD SEPARAT

Case

1шт.

1-201

PM30V00019S201

COVER

2шт.

1-202

PM30V00019S202

PLUG

4шт.

1-203

PM30V00019S203

CAP

4шт.

1-210

PM30V00019S210

PACKING

4шт.

1-211

PM30V00019S211

O-RING

4шт.

1-212

YT30V00009S212

O-RING

4шт.

1-213

ZD12P00800

O-RING,1.9mm Thk x 7.8mm ID, 90 Duro

2шт.

1-214

EN30V00045S214

ROD

4шт.

1-217

EN30V00024S217

SHIM

4шт.

1-218

PM30V00019S218

SPRING SEAT

4шт.

1-225

2436U625S232

BALL

12шт.

1-251

YW30V00001S157

PLUG

3шт.

1-252

2441U722S490

PLUG

2шт.

1-261

ZD12P01100

O-RING

3шт.

1-271

PM30V00019S271

CAPSCREW

4шт.

1-301

NSS

NOT SOLD SEPARAT

Spool

4шт.

1-311

EN30V00045S311

SEAT

4шт.

1-313

EN30V00024S313

WASHER

4шт.

1-336

PM30V00019S336

SPRING

4шт.

1-413

NSS

NOT SOLD SEPARAT

Shaft, Cam

2шт.

1-414

EN30V00045S414

BUSHING

4шт.

1-420

NSS

NOT SOLD SEPARAT

Cam

2шт.

1-471

NSS

NOT SOLD SEPARAT

Ball

4шт.

1-472

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

1-501

PM30V00019S501

BOOT

Bellows

2шт.

PM30V00019R100

REPAIR KIT

Consists Of Ref: 1-213 (2), 1-210 (4), 1-211 (4), 1-212 (4)

1шт.

PM30V00019R300

REPAIR KIT

Consists Of Ref: 1-413 (1), 1-420 (1), 1-472 (1), 1-471 (2)

1шт.
