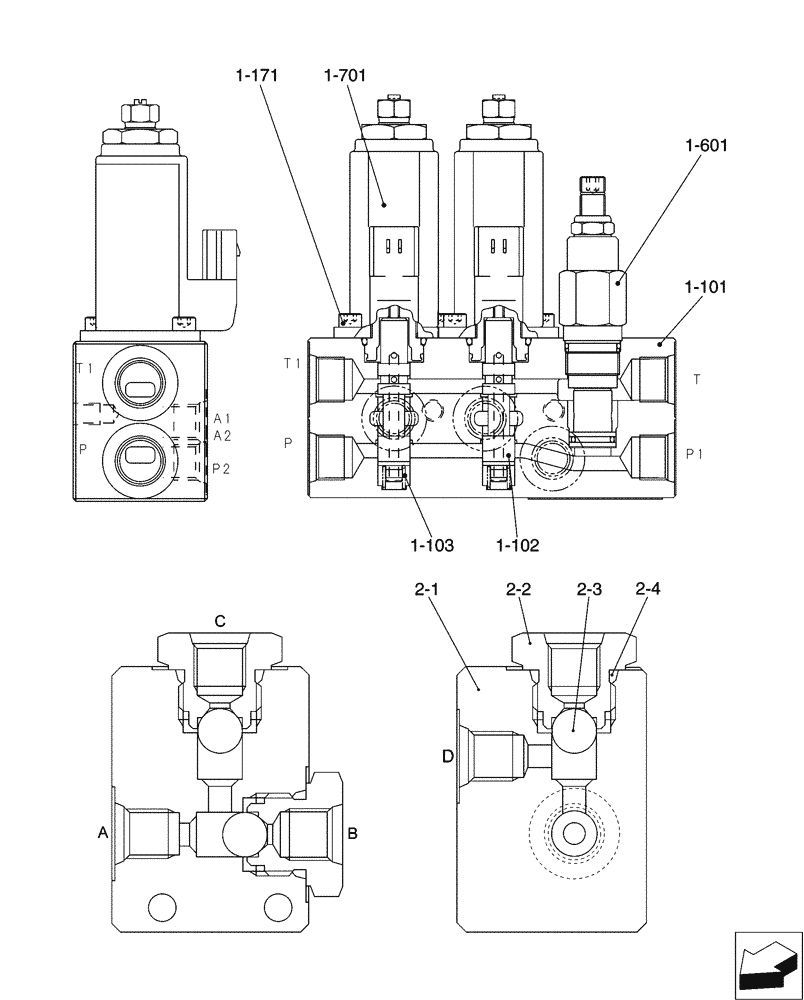

Запчасти Case CX50B (01-051[03]) - CONTROL LINES, VALVE, COOLER (35) - HYDRAULIC SYSTEMS

1-101

PX35V00003S101

CASE

1шт.

1-102

PX35V00003S102

SPOOL

2шт.

1-103

2436U1459S5

SPRING

2шт.

1-171

YX35V00002S171

SCREW,Hex Socket Head, M5 x 12mm

4шт.

1-601

YR22V00001F1

HYDRAULIC VALVE

Relief

1шт.

1-701

PX35V00003S701

SOLENOID

2шт.

2-1

PH26V00001S001

BODY

Block

1шт.

2-2

PH26V00001S002

HYD CONNECTOR

2шт.

2-3

PH26V00001S003

BALL

2шт.

2-4

ZD12P01800

O-RING

2шт.
