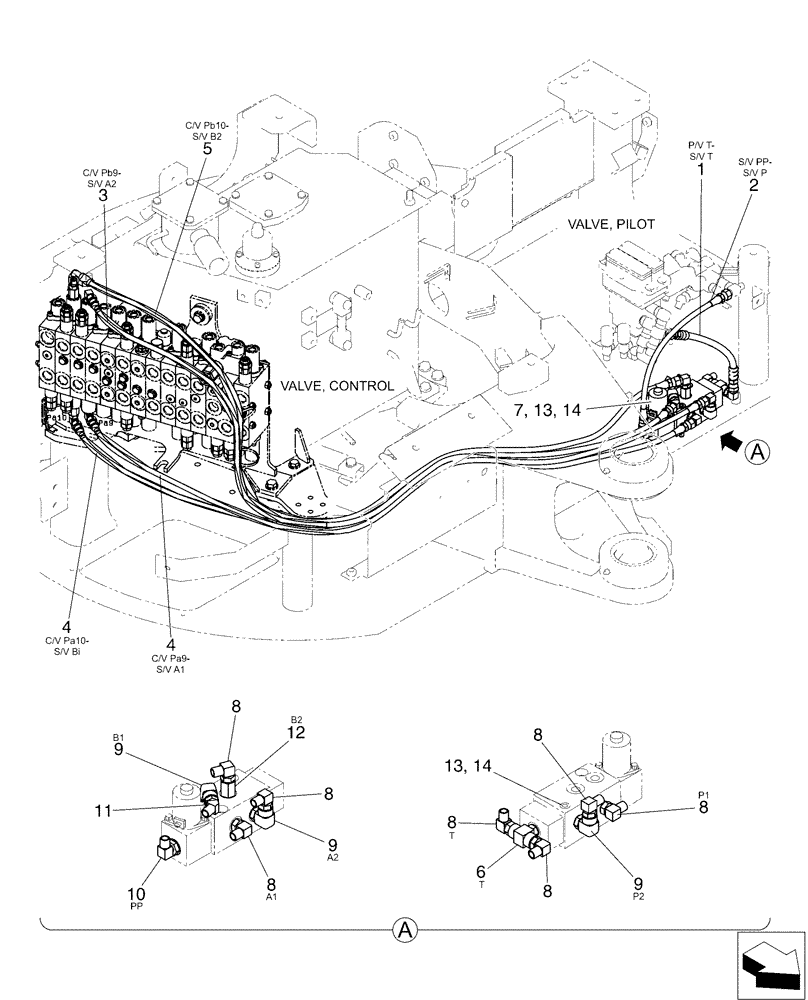

Запчасти Case CX50B (01-049[02]) - CONTROL LINES, VALVE, ANGLE DOZER (Aug 9 2010 3:06PM) (35) - HYDRAULIC SYSTEMS

1

HX22L04028DX

HOSE,6.3mm ID x 280mm L

1шт.

2

HX24L04038DX

HOSE

1шт.

3

HX24L04200DX

HOSE

1шт.

4

HX24L04165DX

HOSE

2шт.

5

HX34L04200DX

HOSE

1шт.

6

2444Z4239

TEE

1шт.

7

PE35V00001F2

SOLENOID VALVE

1шт.

8

HH35S04004G1

90 ELBOW

7шт.

9

2444Z2894

90 ELBOW

3шт.

10

HH35S04004G2

90 ELBOW

1шт.

11

HH45S04004G1

45 ELBOW

1шт.

12

2444Z2525

HYD CONNECTOR

1шт.

13

ZW26K10000

LOCK WASHER

Lock

2шт.

14

ZS28C10065

SCREW,Hex Socket Head, M10 x 65mm

2шт.
