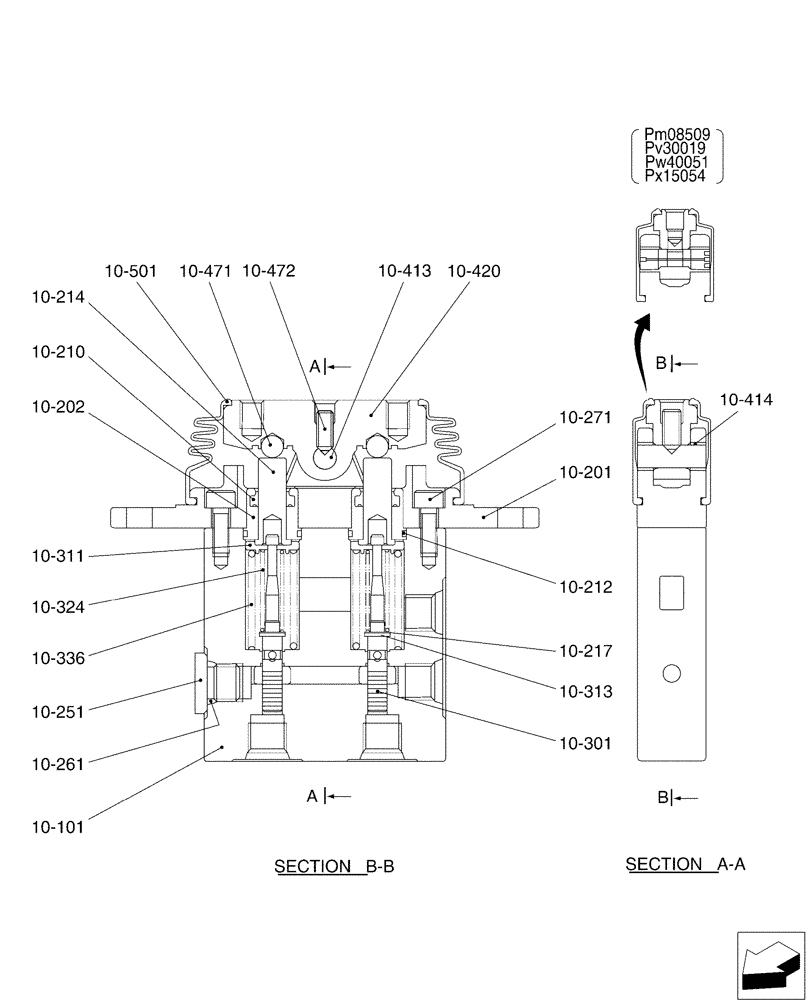

Запчасти Case CX50B (01-047[01]) - CONTROL LINES, REMOTE, DOZER (35) - HYDRAULIC SYSTEMS

10-101

NSS

NOT SOLD SEPARAT

Case

1шт.

10-201

NSS

NOT SOLD SEPARAT

Cover

1шт.

10-202

PB30V00002S202

PLUG

2шт.

10-210

PM30V00019S210

PACKING

2шт.

10-212

2436U2946S9

O-RING,13.5mm ID x 20.5mm OD x 1mm Thk

2шт.

10-214

NSS

NOT SOLD SEPARAT

Rod, Push

2шт.

10-217

NSS

NOT SOLD SEPARAT

Shim

2шт.

10-251

YW30V00001S157

PLUG

1шт.

10-261

ZD12P01100

O-RING

1шт.

10-271

ZS23C06016

SCREW,Hex Socket Head, M6 x 16mm

Cap

2шт.

10-301

NSS

NOT SOLD SEPARAT

Spool

2шт.

10-311

NSS

NOT SOLD SEPARAT

Seat, Spring

2шт.

10-313

NSS

NOT SOLD SEPARAT

Washer

2шт.

10-324

NSS

NOT SOLD SEPARAT

Spring

2шт.

10-336

NSS

NOT SOLD SEPARAT

Spring

2шт.

10-413

NSS

NOT SOLD SEPARAT

Saft, Cam

1шт.

10-414

NSS

NOT SOLD SEPARAT

Bushing

2шт.

10-420

NSS

NOT SOLD SEPARAT

Cam

1шт.

10-471

NSS

NOT SOLD SEPARAT

Ball

2шт.

10-472

NSS

NOT SOLD SEPARAT

Setscrew

2шт.

10-501

NSS

NOT SOLD SEPARAT

Boot

1шт.

PB30V00002R100

REPAIR KIT

Consists Of Ref: 10-413 (1), 10-420 (1), 10-472(1), 10-471 (2)

1шт.
