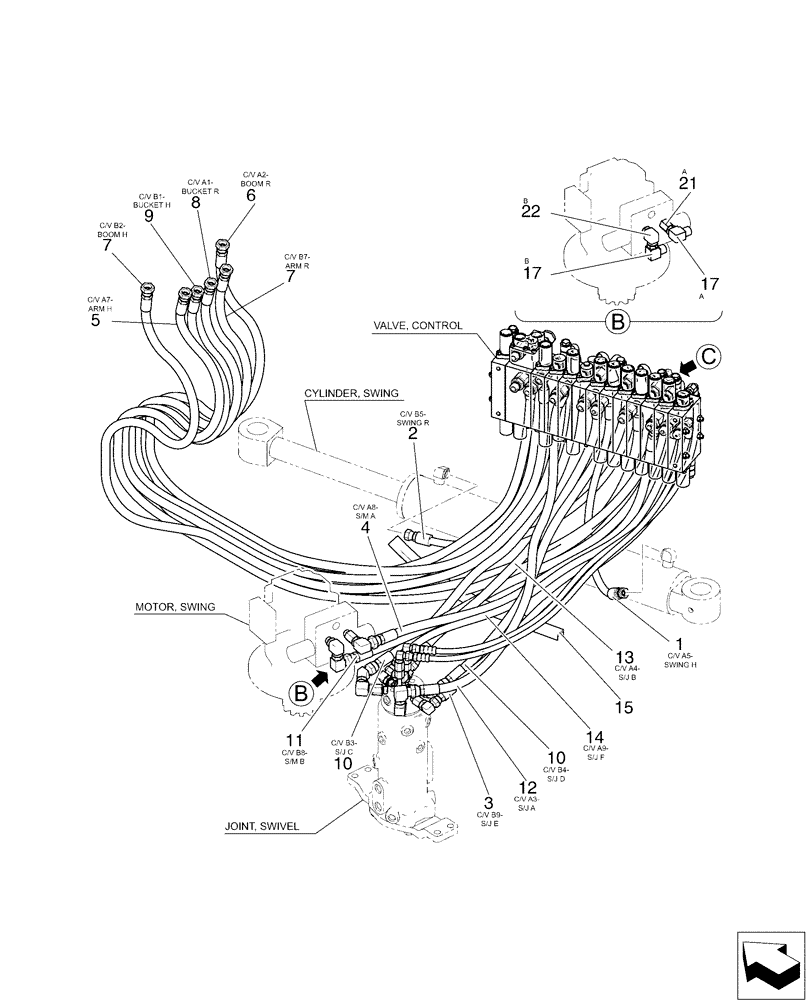

Запчасти Case CX50B (01-031[01]) - HYD LINES, UPP, ANGLE DOZER (35) - HYDRAULIC SYSTEMS

1

HX35L06060DY

HOSE

1шт.

2

PW03H01101D9

HOSE

1шт.

3

PW03H01101DA

HOSE

1шт.

4

HX25L08105DY

HOSE,12.7mm ID x 1050mm L

1шт.

5

PH03H01113D3

HOSE,12.7mm ID x 2680mm L

1шт.

6

PH03H01111D2

HYDRAULIC HOSE

1шт.

7

PH03H01112D3

HYDRAULIC HOSE

2шт.

8

PH03H01111D1

HOSE,12.7mm ID x 2530mm L

1шт.

9

PH03H01110D1

HOSE,12.7mm ID x 2660mm L

1шт.

10

PH03H01107D1

HOSE,12.7mm ID x 1250mm L

2шт.

11

HX35L08125DX

HOSE

1шт.

12

HX35L08120DX

HOSE,12.7mm ID x 1200mm L

1шт.

13

HX35L08110DX

HOSE

1шт.

14

HX35L06120DY

HOSE,9.5mm ID x 1200mm L

1шт.

15

YT64H01029D7

RUBBER

1шт.

17

HH35S08006G1

90 ELBOW

2шт.

21

HH25R06006G1

HYD CONNECTOR

1шт.

22

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.
