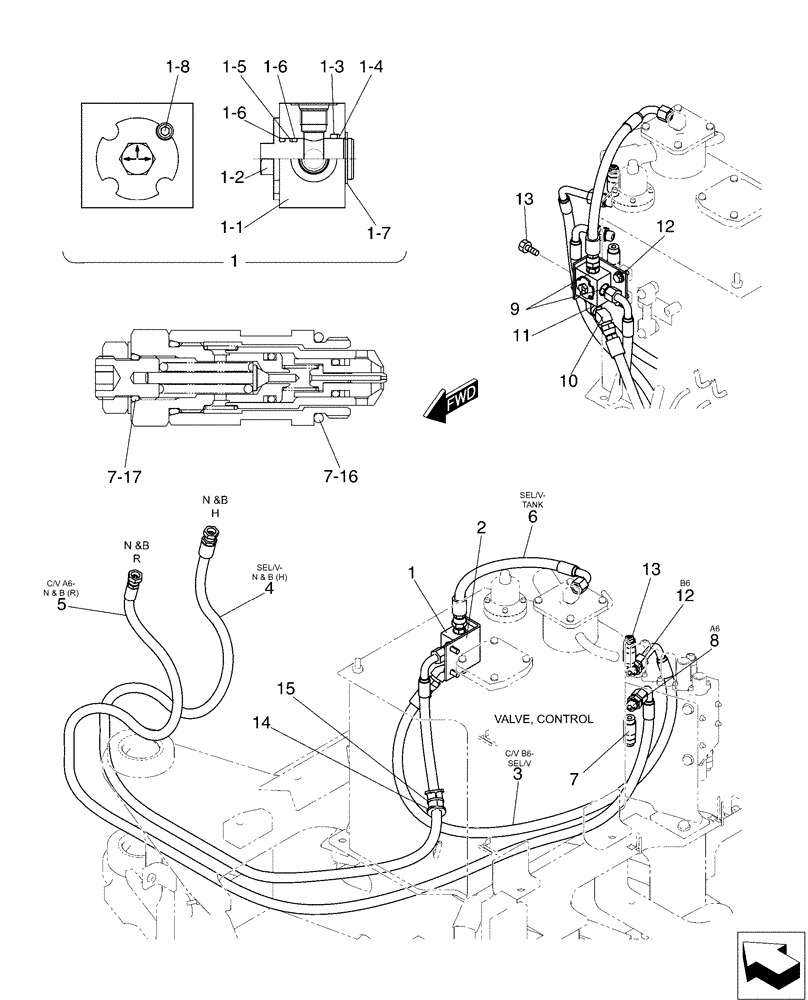

Запчасти Case CX50B (01-030) - HYD LINES, UPP, NIBBLER & BREAKER (35) - HYDRAULIC SYSTEMS

PY03H00024F1

Upp, (Nibbler & Breaker)

1шт.

1

PA30V00005F1

VALVE

Selector

1шт.

1-1

PA30V01011P1

BODY

1шт.

1-2

PA30V01012P1

SHAFT

1шт.

1-3

ZD12G02500

O-RING,24.40mm ID x 30.60mm OD x 3.10mm

1шт.

1-4

ZD75G02500

BACK-UP RING

1шт.

1-5

ZD85P02100

RING

Back-up (Nibbler & Breaker)

1шт.

1-6

ZD12P02100

O-RING,2.4mm Thk x 20.8mm ID, 90 Duro

2шт.

1-7

ZR16X02500

RING

Snap

1шт.

1-8

ZS28C06010

CAPSCREW,Hex Socket Head, M6 x 10mm

1шт.

2

PH03H01102P1

BRACKET

1шт.

3

PH03H01107D7

HYDRAULIC HOSE

1шт.

4

PH03H01111D5

HYDRAULIC HOSE

1шт.

5

PH03H01111D4

HYDRAULIC HOSE

1шт.

6

HX32L08042DX

HOSE,12.7mm ID x 420mm L

1шт.

7

PY22V00010F1

VALVE

Relief

2шт.

7-16

2436U388S25

O-RING

1шт.

7-17

ZD12P01000

O-RING

1шт.

8

HH25S08008G1

HYD CONNECTOR

2шт.

9

HH25S08006G2

HYD CONNECTOR

2шт.

10

HH45S08006G1

45 ELBOW

1шт.

11

2444Z3155

90 ELBOW,PF 3/8" Fem x PF 3/8" Male

1шт.

12

ZM73C10025

BOLT,M10x25mm - Course Thread

Capscrew

2шт.

13

ZM73C08020

BOLT,M8x20mm - Course Thread

Capscrew

4шт.

14

YN03H01075P1

BUSHING,21mm ID x 39mm OD x 50mm L

1шт.

15

PY01P01043D6

CABLE TIE,4.80mm W x 383mm L

1шт.
