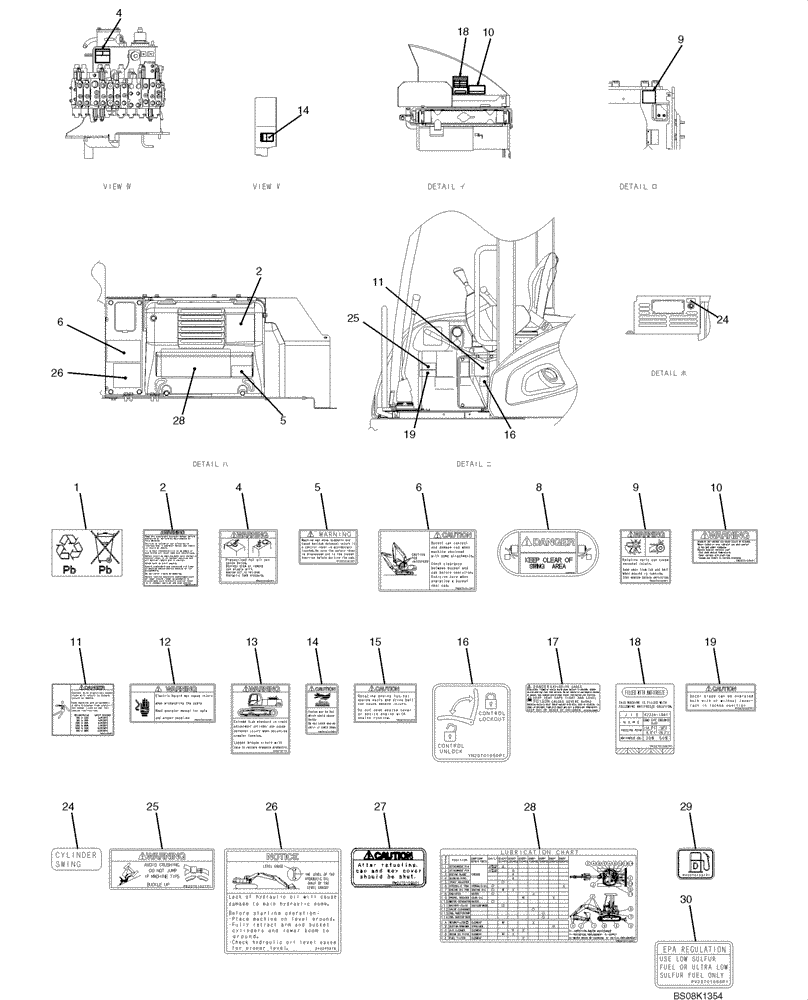

Запчасти Case CX50B (06-002) - NAME PLATE INSTALLATION (PW22T00083F3) NAME-PLATE

Name Plate Installation, PW22T00083F3, Page 2 of 2

1шт.

1

2432T6179

CAUTION DECAL

Decal, Recycle

1шт.

2

YN20T01016P1

WARNING DECAL

Decal, Warning, Read and understand operator manual before ...

1шт.

4

PW20T01007P1

LABEL

Decal, Warning, Pressurized hot oil can cause burns…

1шт.

5

PY20T01073P1

WARNING DECAL

Decal, Warning, Machine may move suddenly and cause servious ...

1шт.

6

YN20T01013P1

LABEL

Decal, Caution, Bucket can contact and damage cab when machine ...

1шт.

8

PE20T01014P1

LABEL

Decal, Danger, Keep clear of swing area …

1шт.

9

YN20T01009P1

LABEL

Decal, Warning, Rotating parts can cause personal injury…

1шт.

10

PW20T01094P1

WARNING DECAL

Decal, Warning, Coolant

1шт.

11

YN20T01006P1

LABEL

Decal, Danger, Contact with electrical power lines will result in ...

1шт.

12

YN20T01338P1

LABEL

Decal, Warning, Electric Hazard may cause injury…

1шт.

13

2432T6110

LABEL

Decal, Warning, Extreme high pressure in truck adjustment cylinder ...

2шт.

14

YN20T01220P1

LABEL

Decal, Caution, Engine may be hot which could cause burns…

1шт.

15

YN20T01012P1

CAUTION DECAL

Decal, Caution, Rotating engine fan, hot engine parts and drive belt can cause …

1шт.

16

YN20T01050P1

LABEL

Decal, Lever Control Unlock and Control Lockout

1шт.

17

PY20T01069P1

LABEL

Decal, Danger, Explosive gases

1шт.

18

PW20T01076P1

LABEL

Decal, Filled with antifreeze This machine is filled with …

1шт.

19

PY20T01077P1

LABEL

Decal, Caution, Dozer blade can be operated both with or without ...

1шт.

24

PW20T01044P1

LABEL

Decal, Cylinder Swing

1шт.

25

PE20T01027P1

LABEL

Decal, Warning, Avoid crushing -- Do not jump if machine tips -- Buckle up

1шт.

26

2432P3379

LABEL

Decal, Notice, Lack of Hydraulic Oil will cause damage to Main Hydraulic pump…

1шт.

27

PW20T01090P1

LABEL

Decal, Caution, After Refueling Cap and Key Cover Should Be Shut

1шт.

28

PW20T01146P1

LABEL

Decal, Lubrication Chart

1шт.

29

PA20T01031P1

CAUTION DECAL

Decal, Diesel

1шт.

30

PV20T01068P1

LABEL

Decal, EPA Regulation

1шт.
