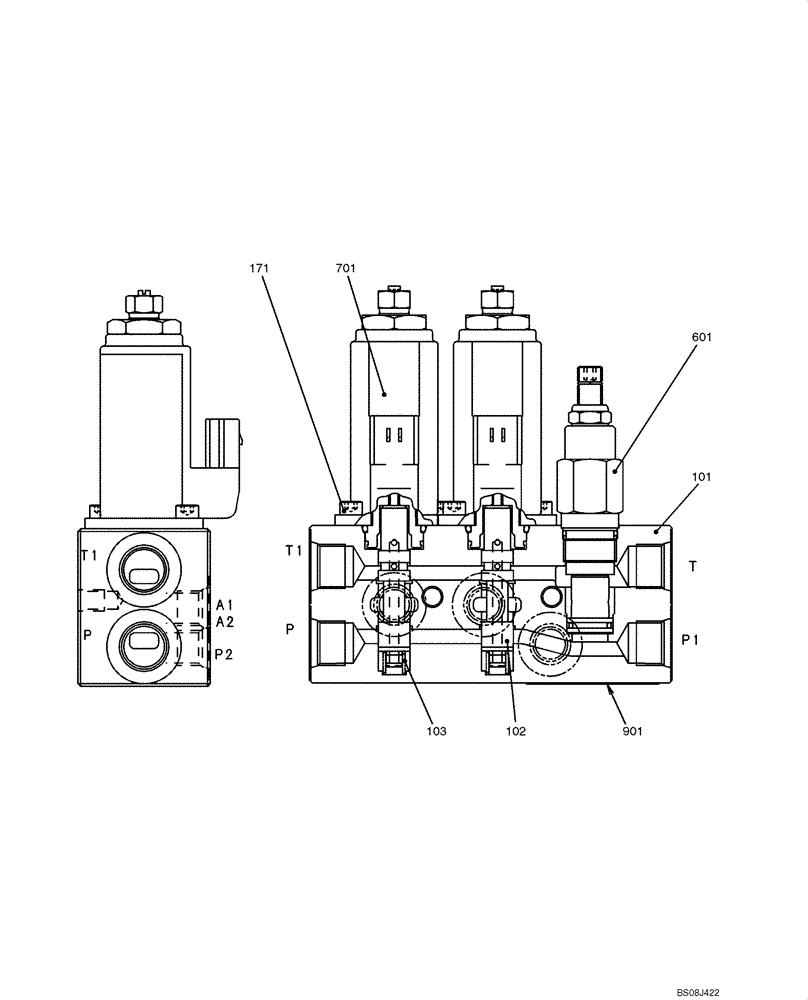

Запчасти Case CX50B (07-046) - VALVE ASSY, SOLENOID (PX35V00003F1) ELECTRICAL AND HYDRAULIC COMPONENTS

PX35V00003F1

VALVE

ASSY, SOLENOID

1шт.

101

PX35V00003S101

CASE

1шт.

102

PX35V00003S102

SPOOL

2шт.

103

2436U1459S5

SPRING

2шт.

171

YX35V00002S171

SCREW,Hex Socket Head, M5 x 12mm

CAP

4шт.

601

YR22V00001F1

HYDRAULIC VALVE

ASSY, RELIEF, See Figure 07-048

1шт.

701

PX35V00003S701

SOLENOID

2шт.

901

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.
