(07-042) - CYLINDER ASSY, SWING (PH01V00031F1)

Запчасти Case CX50B (07-042) - CYLINDER ASSY, SWING (PH01V00031F1) ELECTRICAL AND HYDRAULIC COMPONENTS

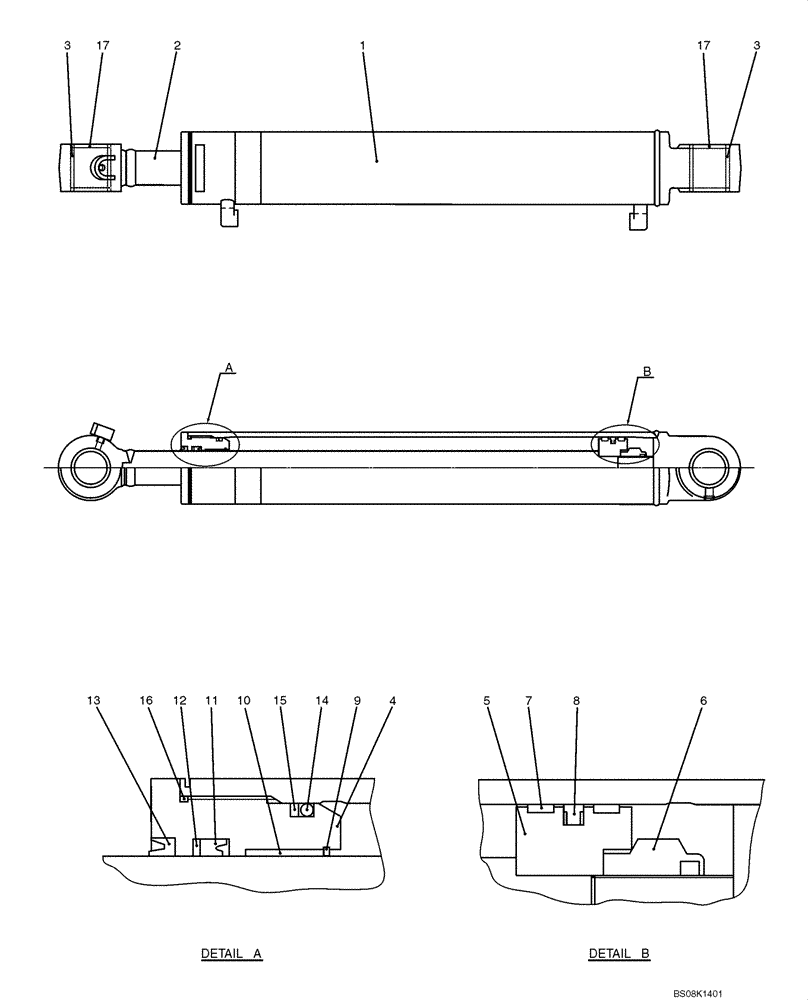

Схема запчастей Case CX50B - (07-042) - CYLINDER ASSY, SWING (PH01V00031F1) ELECTRICAL AND HYDRAULIC COMPONENTS
11
7
9
13
17
17
3
1
4
8
12
10
2
15
14
6
16
3
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH01V00031F1

CYLINDER

ASSY, SWING

1шт.

1

NSS

NOT SOLD SEPARAT

TUBE, CYLINDER

1шт.

2

NSS

NOT SOLD SEPARAT

ROD, PISTON

1шт.

3

PH01V00031S003

BUSHING

2шт.

4

PH01V00031S004

CYLINDER HEAD

1шт.

5

PH01V00031S005

PISTON

1шт.

6

PH01V00031S006

NUT

1шт.

7

PH01V00027S010

RING

WEAR

2шт.

8

PH01V00027S011

RING

SEAL

1шт.

9

PH01V00027S013

RING

RETAINING

1шт.

10

PH01V00031S010

BUSHING

1шт.

11

PH01V00027S015

CIRCLIP

U-RING

1шт.

12

PH01V00027S016

RING

BACK-UP

1шт.

13

PH01V00027S017

RING

WIPER

1шт.

14

ZD12P08000

O-RING

1шт.

15

ZD85P08000

BACK-UP RING

1шт.

16

ZD11G09000

O-RING,89.40mm ID x 95.60mm OD x 3.10mm

1шт.

17

PH01V00027S021

RING

WIPER

4шт.

PH01V00031R100

REPAIR KIT

Incl. 1, 3

1шт.

PH01V00031R200

REPAIR KIT

Incl. 2, 3

1шт.

PH01V00031R300

REPAIR KIT

Incl. 7, 8, 11 - 16

1шт.
