(07-033) - PISTON ASSY (PH10C01009F1)

Запчасти Case CX50B (07-033) - PISTON ASSY (PH10C01009F1) ELECTRICAL AND HYDRAULIC COMPONENTS

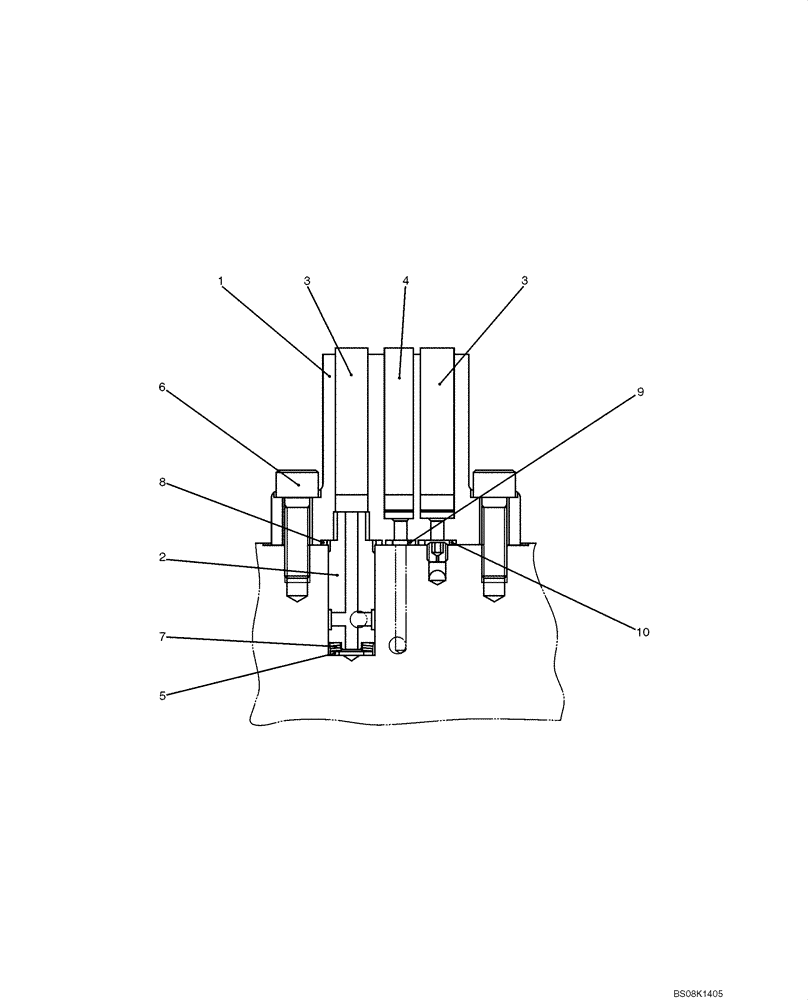

Схема запчастей Case CX50B - (07-033) - PISTON ASSY (PH10C01009F1) ELECTRICAL AND HYDRAULIC COMPONENTS
3
7
10
6
1
4
3
9
8
5
2
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH10V01009F1

PISTON ASSY

PISTON ASSY

1шт.

1

PH10V01009S001

CYLINDER

CYLINDER

1шт.

2

PY10V01008S002

PISTON

1шт.

3

PY10V01006S003

PIN

2шт.

4

PH10V01009S004

PIN

PIN

1шт.

5

PY10V01006S005

SPRING SEAT

1шт.

6

ZS23C08025

SCREW,Hex Socket Head, M8 x 25mm

CAP

2шт.

7

PW10V00001S056

VALVE SPRING

CONED DISK

3шт.

8

2436U1852S105

O-RING

1шт.

9

PY10V01006S009

O-RING

1шт.

10

PH10V01004S009

O-RING

1шт.
