(07-012) - VALVE ASSY, CONTROL (BUCKET) (PH30V00053F1)

Запчасти Case CX50B (07-012) - VALVE ASSY, CONTROL (BUCKET) (PH30V00053F1) ELECTRICAL AND HYDRAULIC COMPONENTS

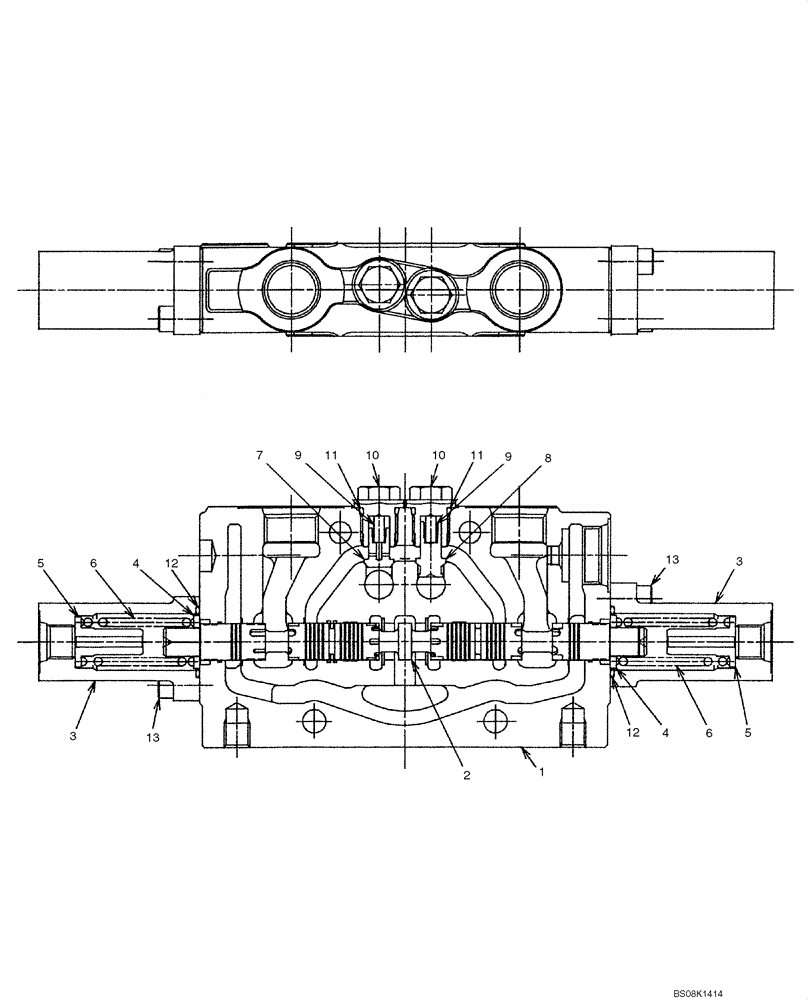

Схема запчастей Case CX50B - (07-012) - VALVE ASSY, CONTROL (BUCKET) (PH30V00053F1) ELECTRICAL AND HYDRAULIC COMPONENTS
4
6
8
3
9
4
11
13
1
5
11
3
7
6
12
10
10
13
9
2
12
5
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00053F1

VALVE

VALVE ASSY, CONTROL (BUCKET)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PH30V00053S003

CAP

CAP

2шт.

4

2436R919S10

SEAT

SPRING

2шт.

5

PH30V00053S005

VALVE SEAT

SPRING, SEAT

2шт.

6

PH30V00053S006

SPRING

SPRING

2шт.

7

PH30V00053S007

POPPET

POPPET

1шт.

8

PH30V00053S008

POPPET

POPPET

1шт.

9

PH30V00053S009

SPRING

SPRING

2шт.

10

PH30V00053S010

PLUG

PLUG

2шт.

11

2436U1192S19

O-RING

2шт.

12

2436R668S3

O-RING

2шт.

13

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

CAP

4шт.
