(07-009) - VALVE ASSY, CONTROL (SUPPLY, CONNECTING) (PH30V00064F1)

Запчасти Case CX50B (07-009) - VALVE ASSY, CONTROL (SUPPLY, CONNECTING) (PH30V00064F1) ELECTRICAL AND HYDRAULIC COMPONENTS

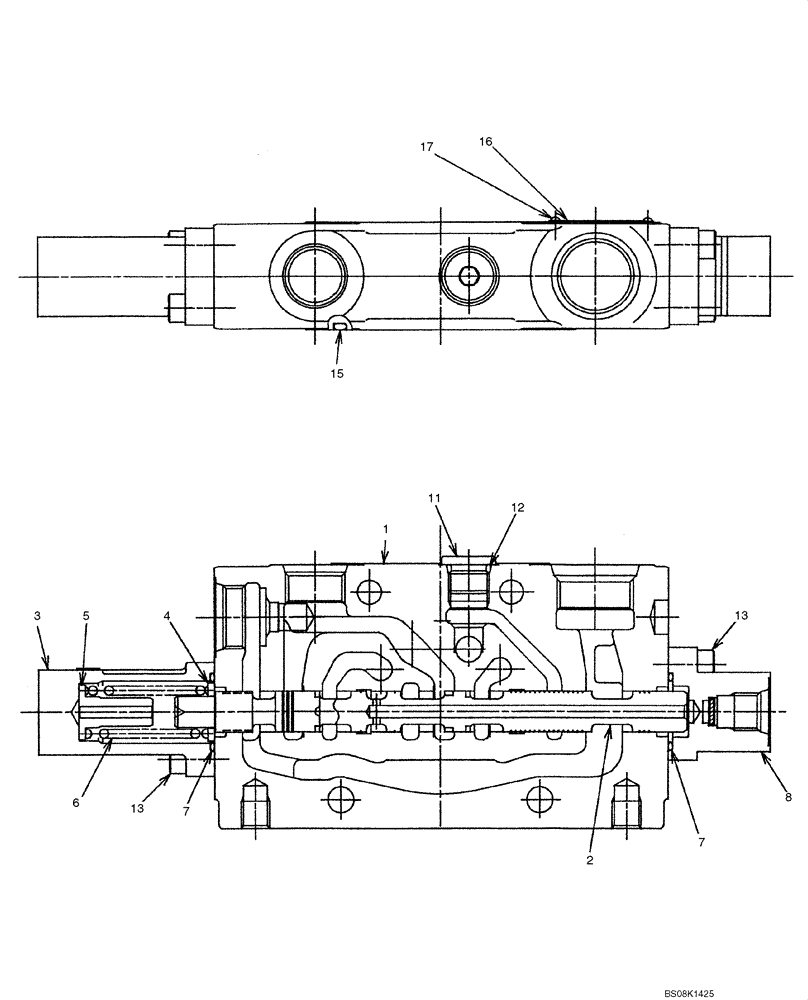

Схема запчастей Case CX50B - (07-009) - VALVE ASSY, CONTROL (SUPPLY, CONNECTING) (PH30V00064F1) ELECTRICAL AND HYDRAULIC COMPONENTS
6
7
12
13
2
16
5
8
15
3
4
7
17
13
11
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00064F1

VALVE

VALVE ASSY, CONTROL (SUPPLY, CONNECTING)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PH30V00061S014

CAP

CAP

1шт.

4

2436R919S10

SEAT

SPRING

1шт.

5

PH30V00053S005

VALVE SEAT

SPRING. SEAT

1шт.

6

PH30V00064S006

SPRING

SPRING

1шт.

7

2436R668S3

O-RING

2шт.

8

PH30V00064S008

CAP

CAP

1шт.

11

PH30V00055S007

PLUG

PLUG

1шт.

12

2436U1192S19

O-RING

1шт.

13

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

CAP

4шт.

15

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

16

NSS

NOT SOLD SEPARAT

NAME PLATE

1шт.

17

NSS

NOT SOLD SEPARAT

SCREW, DRIVE

2шт.
