(07-008) - VALVE ASSY, CONTROL (TRAVEL RIGHT) (PH30V00057F1)

Запчасти Case CX50B (07-008) - VALVE ASSY, CONTROL (TRAVEL RIGHT) (PH30V00057F1) ELECTRICAL AND HYDRAULIC COMPONENTS

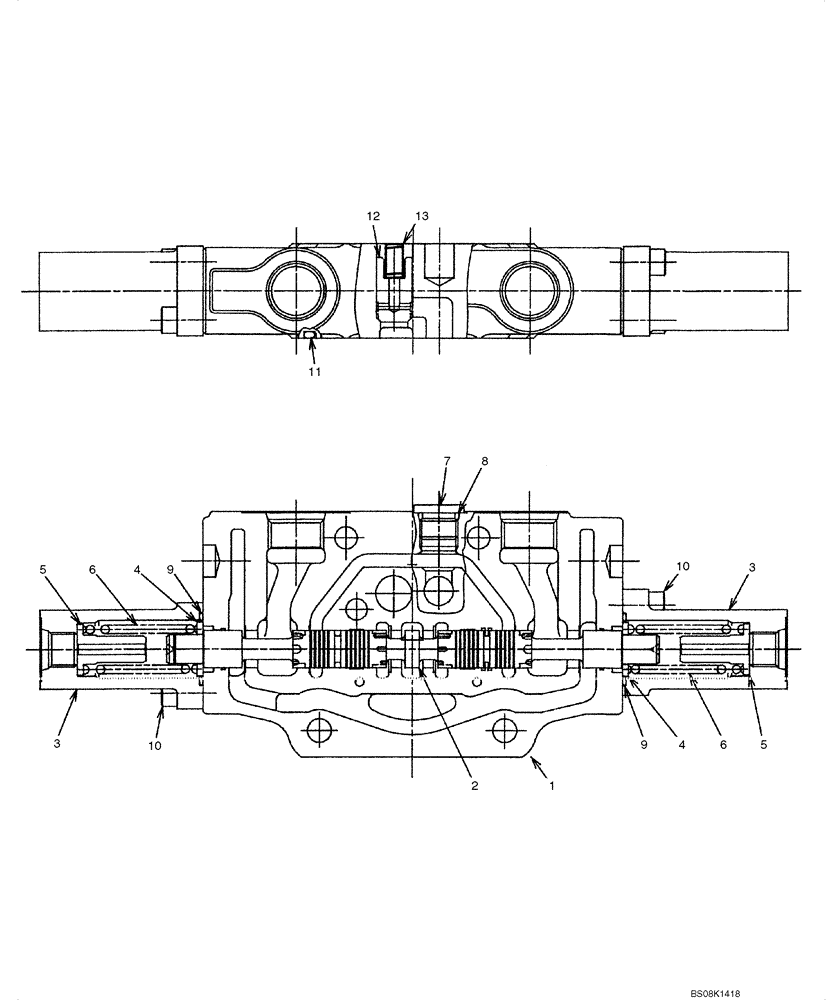

Схема запчастей Case CX50B - (07-008) - VALVE ASSY, CONTROL (TRAVEL RIGHT) (PH30V00057F1) ELECTRICAL AND HYDRAULIC COMPONENTS
12
4
5
10
6
13
3
4
2
7
3
9
8
6
11
1
9
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

PH30V00057F1

VALVE

VALVE ASSY, CONTROL (TRAVEL RIGHT)

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL

1шт.

3

PH30V00053S003

CAP

CAP

2шт.

4

2436R919S10

SEAT

SPRING

2шт.

5

PH30V00053S005

VALVE SEAT

SPRING, SEAT

2шт.

6

PH30V00053S006

SPRING

SPRING

2шт.

7

PH30V00055S007

PLUG

PLUG

1шт.

8

2436U1192S19

O-RING

1шт.

9

2436R668S3

O-RING

2шт.

10

ZS23C06018

SCREW,Hex Socket Head, M6 x 18mm

CAP

4шт.

11

ZD11G07000

O-RING,69.40mm ID x 75.60mm OD x 3.10mm

1шт.

12

PH30V00055S012

POPPET

POPPET

1шт.

13

2436U389S12

SPRING

1шт.
